What is meant by load class B125?

Class B125, defined by the European standard UNI EN 124, certifies that the device is structured to withstand a test load of 125 kN (approx. 12.5 tons). It is the appropriate and mandatory category for pedestrian areas, pavements, cycle paths, and parking areas for private cars only.

How is the odor tightness configured with the "U" seat?

The frame integrates a perimeter "U"-shaped channel. By filling this space with fine sand or equivalent sealing materials (such as thick grease) before inserting the lid, a physical barrier is formed that prevents the gases present in the pit from rising to the surface.

Is a special proprietary key needed to remove the lid?

No. The lid is provided with closed-bottom slots designed specifically to accommodate standard "T" lifting hooks or keys normally used by maintenance technicians, or a common construction site lever.

Do the closed-bottom slots let rainwater into the pit?

No. The "closed-bottom" feature indicates that the cavity is internally isolated: it allows for the solid attachment of lifting tools but prevents soil, road debris, or rainwater from filtering into the chamber below.

Is it possible to insert our condominium or company logo?

Yes, the lid has a special flat, smooth central area, designed to accommodate, upon request and for suitable order lots, the custom casting or engraving of brands, company logos, or identification labels for the utility service.

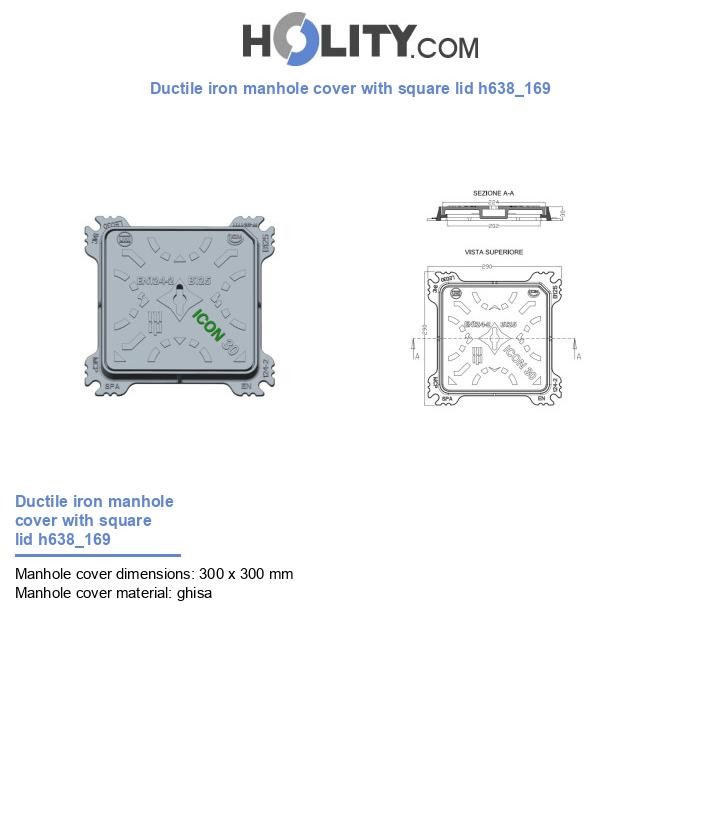

Ductile iron manhole cover with square lid h638_169

Name: Ductile iron manhole cover with square lid h638_169
SKU: h638_169
Price: 23.09 EUR
Availability: InStock

€19.24 VAT excl.

€23.09 VAT incl.

In stock

SKU

h638_169

Ductile iron manhole cover. Clear opening: 200 x 200 mm. Height: 30 mm. External dimensions: 300 x 300 mm.

Qty

Technical sheet

ASK FOR AN OFFER

Go to Road Manhole Covers

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The ductile iron manhole cover with square lid h638_169 is a compact covering device, designed to offer an excellent combination of mechanical strength, practicality, and safety in urban and residential areas with light traffic. Made of high-quality GJS-500-7 ductile iron in full compliance with the EN 1563 standard, the product is certified in load class B125 according to the European UNI EN 124 standards (breaking load up to 12.5 tons). The structure features a 30x30 cm square frame equipped with a shaped perimeter flange and pre-drilled holes for stable anchoring to the foundation via anchor bolts. To ensure maximum hygienic insulation, it integrates an internal "U"-shaped seat which, when filled with sand or inert materials, blocks the rise of foul odors from the pit. The square lid fits in a guided and unique way thanks to the rounded internal corners and offers an embossed surface with non-slip reliefs.

Technical features

Material: GJS-500-7 ductile iron according to EN 1563 specifications
Load class: B125 (Breaking load 125 kN / 12.5 Tons)
External dimensions: 300 x 300 mm
Clear opening (internal): 200 x 200 mm (housing for small pits)
Total height: 30 mm
Total weight: 4.8 kg (lightweight and easy to handle)
Geometry: Square-shaped frame and lid
Anchoring: Shaped perimeter flange with reinforcement ribs and holes for anchor bolts
Odor insulation: Internal perimeter "U"-shaped seat for mechanical/hydraulic seal
Precision: Rounded internal corners for a unique coupling of the lid
Passive safety: Embossed surface with non-slip reliefs and embossed dimension indication
Operation: Lid equipped with closed-bottom slots for standard lifting keys
Customization: Smooth central area designed for the insertion of text and/or logos

* Image purely indicative

User Benefits

Field of Application

Why Choose It

FAQ

More Information
Material manhole covers	ghisa
manhole_dimensions	300 x 300 mm

Ductile iron manhole cover with square lid h638_169
