• Isolation from bad odors: The internal "U" groove creates a physical barrier that, integrated with sand or gel, blocks the escape of gases and miasmas coming from the underlying sewer networks.
• Road and pedestrian safety: The anti-slip reliefs uniformly distributed on the surface prevent pedestrians and cyclists from slipping, while simultaneously promoting the complete drainage of rainwater.
• Easier flush installation: The absence of external flanges allows road finishing materials to be placed directly against the edge of the frame, eliminating level differences and improving visual impact.
• Guided and rapid insertion: The rounded internal corner of the frame, combined with that of the lid, prevents positioning errors during closing operations after inspection.
• Protection from external infiltrations: The slots for the lifting key are made with a closed bottom, preventing dirt, liquids, and road debris from falling inside the manhole.

This cast iron manhole cover is primarily intended for projects involving urban furniture, architectural paving, and secondary roads. It finds its ideal placement on sidewalks, pedestrian avenues, internal courtyards, and private parking areas where light vehicles transit. It is particularly suitable for covering technological, electrical, or drainage inspection manholes located near historic centers or residential complexes, contexts where paving continuity and the absence of odors are fundamental requirements.

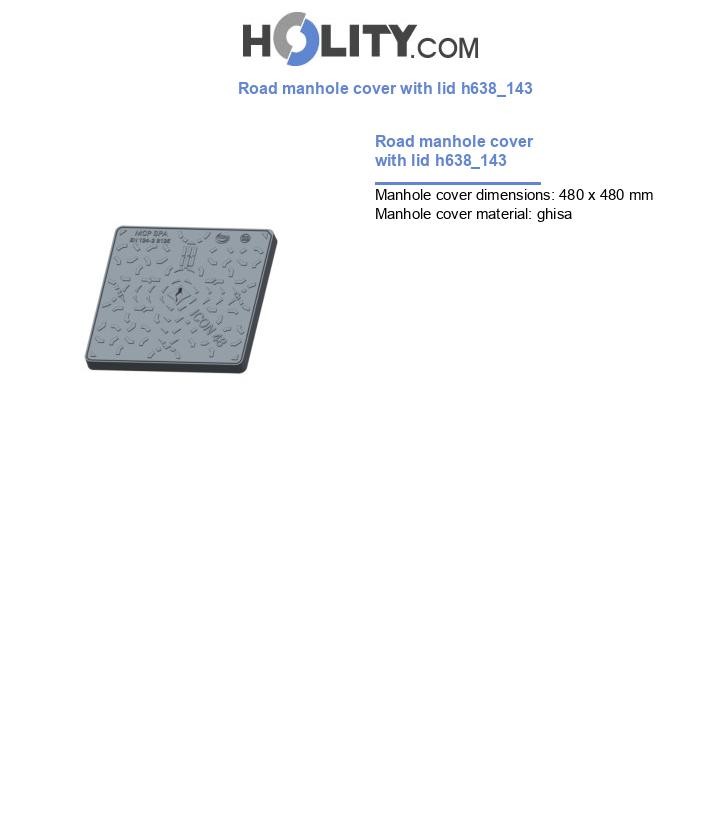

Choosing the h638_143 model means opting for a closing device that strictly respects the parameters of the UNI EN 124 standard, guaranteeing superior stability compared to light construction manhole covers. It is the correct choice when a clear passage of 410 mm is required combined with maximum interlocking depth, a feature that prevents oscillations or noise when vehicles pass. It represents the ideal investment for administrations and clients who require a durable, safe industrial product prepared with large surface spaces for any insertion of customizations or logos of the managing body.

What is meant by maximum interlocking depth of the lid?

The interlocking depth indicates the thickness with which the lid penetrates inside the seat of the frame; a high value ensures the stability of the manhole cover, eliminating risks of accidental lifting or noise due to dynamic loads.

Is it possible to insert a custom logo on the surface of this manhole cover?

Yes, the design of the square lid includes a smooth central space specifically prepared for the casting or engraving of company logos, public body brands, or wording related to the type of underlying plant.

Does the B125 class allow the transit of trucks or heavy rescue vehicles?

Class B125 is certified for a breaking load exceeding 125 kN and is indicated for pedestrian areas and parking lots. Occasional passage of a heavy emergency vehicle is tolerated, but for roads with high vehicular or logistical traffic, it is necessary to opt for higher classes such as C250 or D400.
