Why is the frame divided into two bolted half-frames?

In large-sized covers (approx. 1x1 meter), the division of the frame into two symmetrical parts joined by bolts allows for better absorption of thermal expansion and mechanical torsion of the ground, increasing the longevity of the entire road installation.

How is odor tightness configured with the "U" seat?

The "U" seat is a perimeter channel integrated into the frame. By filling this groove with fine sand, special grease or plastic sealants before inserting the cover, a continuous blind joint is formed that prevents gases in the manhole from rising to the surface.

Are the bolts for fixing the lid included?

Yes, the manhole cover is supplied complete with all the bolts necessary for the safe and stable tightening of the rectangular lid to the frame, guaranteeing the factory anti-accidental opening configuration.

Is it possible to request customization with the company logo?

Certainly. The lid has a specific central smooth flat area, designed to accommodate lettering, utility codes (e.g. Sewerage, Aqueduct, Technological Networks) or personalized logos for suitable order batches.

Ductile iron manhole cover 92×117 cm h638_161

Name: Ductile iron manhole cover 92×117 cm h638_161
SKU: h638_161
Price: 1011.12 EUR
Availability: InStock

€842.60 VAT excl.

€1,011.12 VAT incl.

In stock

SKU

h638_161

Ductile iron manhole cover with bolted rectangular lid, ISO 9001:2015 certified. Loading class D400. External dimensions: 920 x 1170 mm. Clear opening: 750 x 1000 mm. Height: 100 mm.

Qty

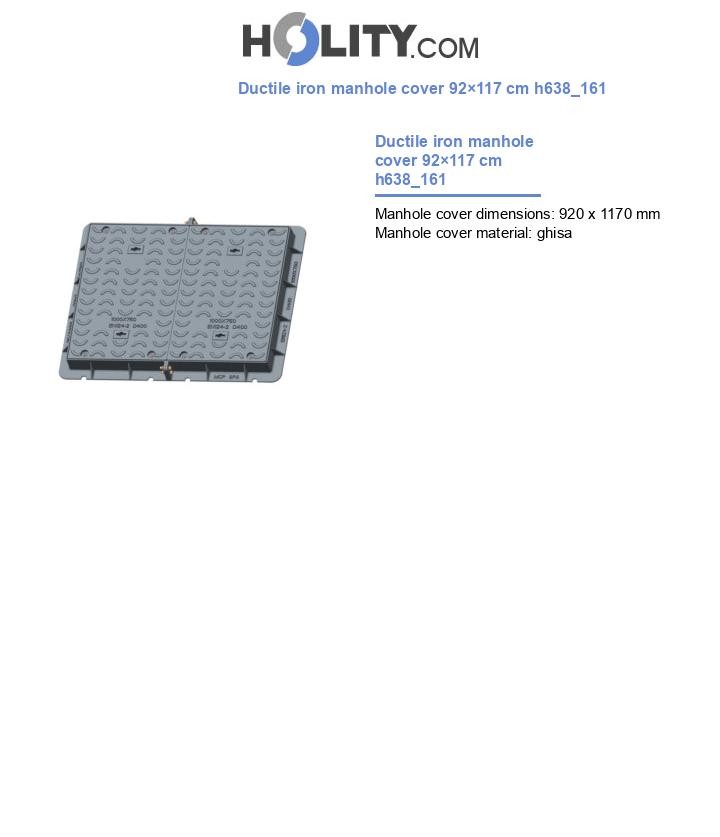

Technical sheet

ASK FOR AN OFFER

Go to Road Manhole Covers

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The h638_161 ductile iron manhole cover is a high-resistance rectangular crowning device, specifically designed to withstand the maximum dynamic stresses of main roads and industrial areas. Made of high-grade GJS-500-7 ductile iron in compliance with the EN 1563 standard, this model is certified in loading class D400, ideal for environments with frequent traffic of trucks, buses and heavy vehicles (breaking load exceeding 400 kN). The rectangular frame is composed of two half-frames bolted together which increase stability and facilitate installation. Anchoring is optimized by a large shaped perimeter flange with rounded corners and reinforcing ribs. The lid is firmly locked via a bolt fixing system that prevents accidental openings caused by strong vibrations, while the internal "U" seat guarantees excellent airtightness against gases and bad odors from the sewage network.

Technical characteristics

Material: GJS-500-7 ductile iron complying with EN 1563 standard
Loading class: D400 (Breaking load > 400 kN / 40 Tons)
External dimensions: 920 x 1170 mm
Clear opening (internal): 750 x 1000 mm (wide rectangular passage)
Total height: 100 mm
Overall weight: 160 kg
Frame structure: Divided into two coupled and bolted half-frames
Anchoring: Continuous external perimeter flange, shaped and rounded
Active safety: Mechanical closure with anti-lifting bolts
Insulation: Internal "U" perimeter groove for odor-tight sealing
Surface: Uniformly distributed anti-slip embossments and area for logos
Maneuverability: Lid equipped with slots for standard lifting keys

* Image for illustrative purposes only

User Benefits

Scope of application

Why Choose It

FAQ

More Information
Material manhole covers	ghisa
manhole_dimensions	920 x 1170 mm

Ductile iron manhole cover 92×117 cm h638_161
