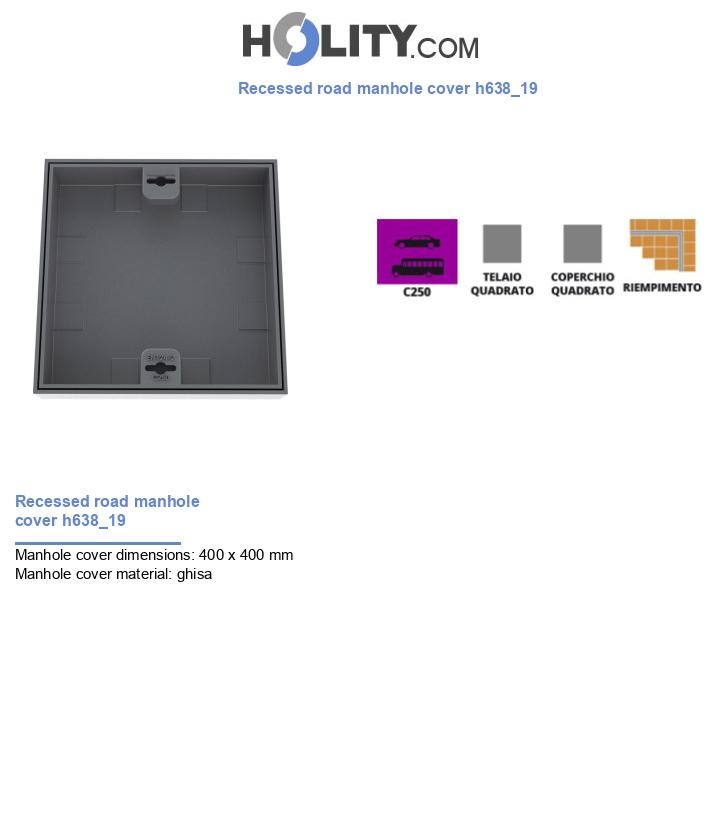

Recessed road manhole cover h638_19

€82.08 VAT excl.
€98.50 VAT incl.
In stock
SKU
h638_19

Spheroidal graphite cast iron recessed manhole cover. Dimensions: 40 x 40 cm. Internal depth: 75 mm.

Recessed road manhole cover, ideal for concrete, paved or porphyry floors. Able to blend aesthetically into the context, as its surface is covered with the same materials as the surrounding pavement. Consisting of a square frame and cover. The frame does not have an external perimeter flange; the cover is equipped with a filling tray and closed-bottom slots for inserting the lifting key. For filling, it is important to check that the internal surface is free of any residue that could compromise the concrete’s grip, and it is also necessary to respect the temperatures required to allow the concrete to cure properly.



Technical features:

  • Dimensions: 40 x 40 cm
  • Clear opening: 30.5 x 30.5 cm
  • Height: 9 cm
  • Internal depth: 75 mm
  • Weight: 24 kg
  • Breaking load: >250 Kn
  • Material: spheroidal graphite cast iron
  • Frame shape: square
  • Cover shape: square
  • Product compliant with UNI EN 1563 standard, load class C250



More Information
Material manhole covers ghisa
manhole_dimensions 400 x 400 mm

Recessed road manhole cover h638_19
