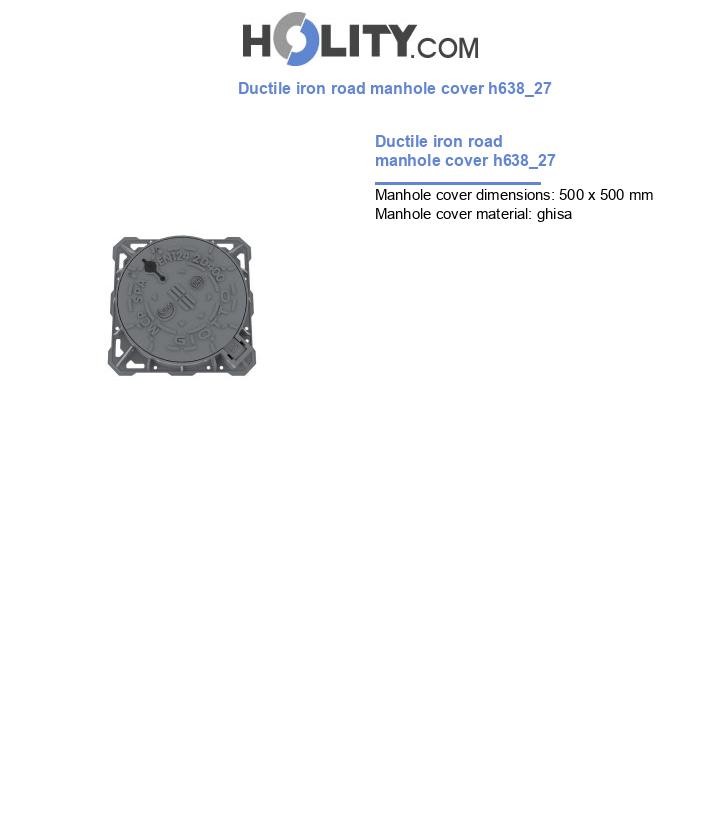

Ductile iron road manhole cover h638_27

€100.89 VAT excl.
€121.07 VAT incl.
In stock
SKU
h638_27

Ductile iron manhole cover. Dimensions: 500 x 500 x H.85 mm. Clear opening: Ø 400 mm.

Ductile iron manhole cover with a square frame at the base and a circular top, ideal for covering aqueducts, sewers, or inspection chambers on roads and pedestrian areas. The product is essential for leveling the road surface and ensuring safety, preventing dangerous openings in the ground. The anti-slip reliefs on the cover ensure water runoff, while the “U”-shaped internal seat with elastomer gasket reduces noise and oscillation.



Technical features:

  • Adequate continuous external perimeter flange equipped with slots for better anchoring in the foundation
  • Lifting eyes for handling during installation
  • Closed-bottom hinge compartment with lid locking system in the open position
  • Closed-bottom slot suitable for the opening and lifting key
  • Steel locking system made by a bolted rotating latch with a helical return spring
  • Appendix suitable for ensuring the lid-to-frame articulation in the hinge compartment without preventing the removal of the lid itself
  • External dimensions: 500×500 mm
  • Clear opening: Ø 400 mm
  • Height: 85 mm
  • Weight: 29 kg
  • Frame shape: square
  • Cover shape: circular
  • Hinge: 110° Max hinge, 90° block hinge, Key, Gasket
More Information
Material manhole covers ghisa
manhole_dimensions 500 x 500 mm

Ductile iron road manhole cover h638_27
