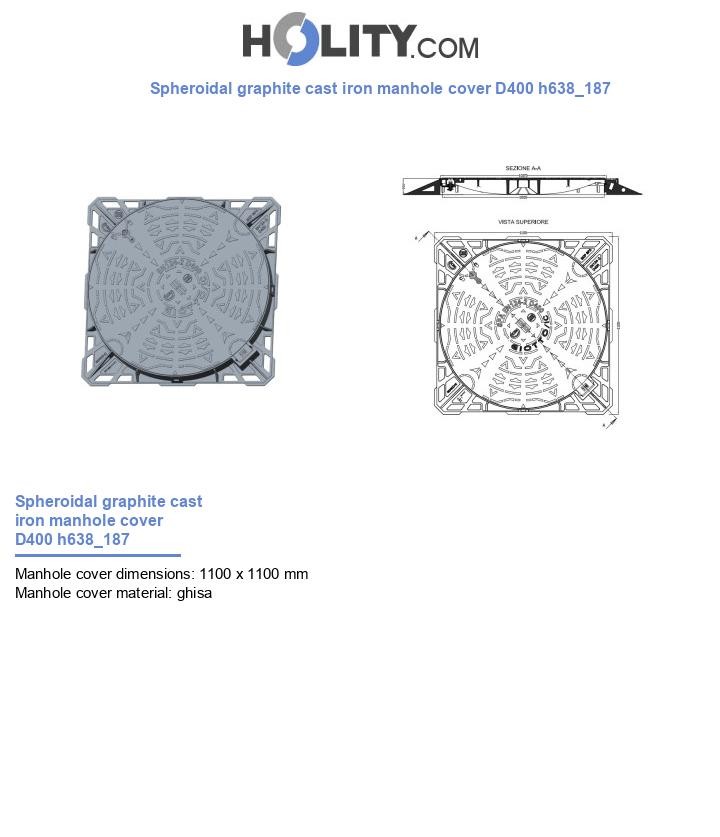

The spheroidal graphite cast iron manhole cover D400 h638_187 is a high-performance gully top, compliant with the UNI EN 124 standard. Made of GJS-500-7 cast iron, this model combines a square/octagonal base frame for stable installation with a circular top for the road surface. The structure includes an internal "U"-shaped seat equipped with an elastomer gasket that ensures a noise-reduction and anti-tilting function. The circular cover is hinged to the frame with a safety lock in the open position, but remains fully removable for maintenance operations. A mechanical locking system by means of a bolted rotating latch ensures the integrity of the manhole against unauthorized access.
Technical specifications
Material: Spheroidal graphite cast iron GJS-500-7 (EN 1563)
Load class: D400 (UNI EN 124 standard)
External frame dimensions: 1100 x 1100 mm
Circular clear opening: Ø 1000 mm
Height: 100 mm
Weight: 131 kg
Company Certification: ISO 9001:2015
Safety: Rotating latch locking system with spring
Frame Construction Details
Continuous external perimeter flange with slots for foundation anchoring
“U” seat with noise-reduction elastomer gasket
Closed-bottom hinge housing with cover locking at 90°
Lifting eyes for handling during installation
Cover Construction Details
Self-centering circular shape with non-slip embossing
Hinged cover and fully removable from the frame
Closed-bottom slot for opening and lifting key
Central and circumferential space for lettering customization
Frame dimensional identifier expressed in cm
* Images for illustrative purposes only
User Benefits
Traffic quietness: The elastomer gasket absorbs vibrations and prevents the metallic noise typical of traditional manhole covers when vehicles pass.
Operational Safety: The locking system in the open position prevents accidental closing of the cover while the operator works in the manhole.
Mechanical Protection: The bolted rotating latch ensures that the cover remains securely closed, discouraging vandalism or accidental openings.
Non-slip Stability: The surface with distributed embossing guarantees grip in all weather conditions, facilitating the runoff of rainwater.
Certified Installation: The flange base provided with slots ensures a superior chemical-physical bond with the road foundation, reducing maintenance interventions.
Scope of application
The h638_187 manhole cover is suitable for main road carriageways, rest areas, and parking lots open to all types of vehicles (Class D400). Thanks to the clear opening of 1 meter (Ø 1000 mm), it is perfect for inspections of large sewer collectors, technological junction chambers and wherever easy passage for operators equipped with bulky tools is required. The noise-reduction finish makes it ideal for installation in urban centers and residential areas with high traffic.
Why Choose It
Choosing this model is the correct choice when a large circular closing device is needed that offers maximum safety and acoustic comfort. The h128_187 model is the fundamental prerequisite for modern technical specifications requiring ISO 9001:2015 certification and full compliance with the UNI EN 124 standard. The combination of hinge articulation and rotating latch closure represents the state of the art for the inspection of heavy utilities.
FAQ
Is the elastomer gasket wear-resistant?
Yes, the gasket is housed in a protected seat and is made of material resistant to hydrocarbons and thermal shocks, ensuring the noise-reduction function for the entire life cycle of the product.
Can the cover be completely removed to facilitate work?
Certainly. The hinge attachment is designed to allow hinged opening but also permits the total removal of the cover from the frame if necessary.
What does "closed-bottom slot" mean?
It means that the compartment where the key is inserted does not communicate with the lower part of the manhole, preventing dirt and debris from falling inside or clogging the lock.
