Square manhole cover in ductile iron C250, external 800x800 mm. Automatic snap closure, "U"-shaped odor-proof seat and non-slip surface. Weight: 46 kg.
To know shipping costs, add the product to your cart
Delivery Times
7-10 days
During August, holity will continue its online sales, but delivery times may be longer than those indicated.

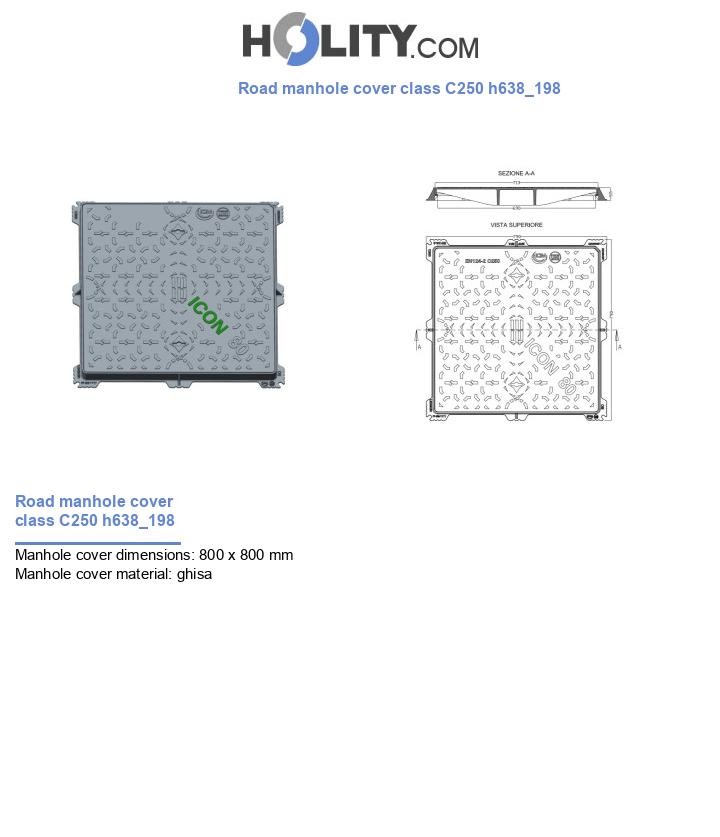

The road manhole cover class C250 h638_198 is a technical capping device designed to guarantee high performance in terms of resistance and insulation. Made of ductile iron GJS-500-7 compliant with EN 1563, this manhole cover is certified for load class C250, making it suitable for installation in parking lots, rest areas and roadside drainage channels. The product solves the problem of odor emissions thanks to the internal "U" seat which, by filling with sand or inert materials, creates a hermetic seal. Operational safety is guaranteed by a mechanical closing system with elastic appendages and locking lugs, which prevent accidental removal of the cover under stress.
Technical features
Material: Ductile iron GJS-500-7 compliant with EN 1563
Load class: C250 (test load 25 tons) according to UNI EN 124
External dimensions: 800 x 800 mm
Clear opening: 700 x 700 mm
Profile height: 60 mm
Weight: 46.00 kg
Closing system: Automatic closure with internal lugs and elastic appendages
Hermeticity: Internal "U" seat for odor-proof insulation
Manufacturer certification: ISO 9001:2015
* Image purely indicative
User benefits
Odor blocking: The "U"-shaped seat configuration allows the pit to be sealed, preventing the rise of miasmas from the underlying sewer pipes.
Mechanical safety: The snap closure system with elastic appendages ensures that the cover remains firmly in place, avoiding dangerous removal or displacement.
Structural stability: The external peripheral flap and reinforcement ribs in the frame guarantee superior anchoring and uniform distribution of loads on the foundation.
Simplified opening: The dedicated external compartments allow the insertion of a lever for unlocking and quick opening, reducing maintenance intervention times.
Certified grip: The non-slip reliefs on the surface of the cover are designed to favor water runoff and guarantee maximum safety during transit.
Scope of application
The use of the h638_198 manhole cover is specifically indicated for roadside, car parking areas and rest areas in residential centers. Thanks to its wide clear opening of 700x700 mm, it is ideal for the protection of large inspection pits for technological networks, sewage systems and rainwater collection systems located in areas where vehicle transit is frequent.
Why Choose It
This model represents the correct choice when a large manhole cover with C250 certification is required, capable of withstanding loads of 25 tons. It is preferable to standard models due to the presence of the anti-removal system and the hermetic seat, fundamental requirements in urban contexts where road surface safety and control of sewer fumes are operational priorities for managers and designers.
FAQ
What is the advantage of the elastic closure system compared to a simple support manhole cover?
The snap system with elastic appendages and lugs ensures that the cover cannot be pulled out or removed without the aid of a lever, improving security against vandalism or accidental lifting caused by transit.
In which areas is class C250 mandatory?
Class C250 is required by the UNI EN 124 standard for installation in drainage channels along the edges of pavements and in parking areas, where stresses are higher than in purely pedestrian areas.
How is the unique coupling between cover and frame guaranteed?
The design features rounded corners and a special anti-removal joint that forces the operator to insert the cover in the only correct orientation, always ensuring the perfect closure of the system.
