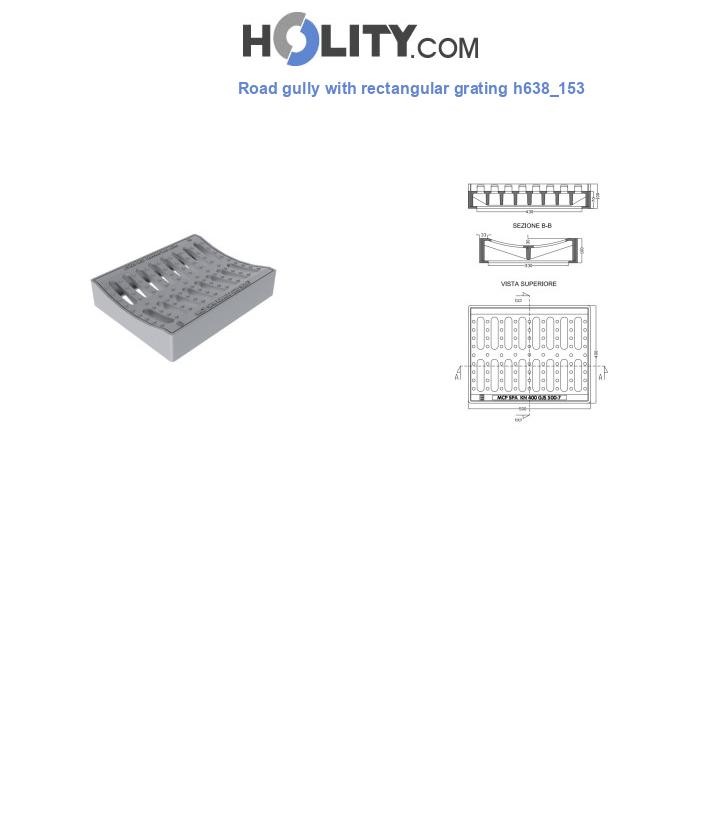

Road gully with rectangular grating h638_153

€156.04 VAT excl.
€187.25 VAT incl.
In stock
SKU
h638_153

Ductile iron road gully with non-slip relief. Class: KN400. External dimensions: 400 x 500 mm.

Road gully in ductile iron compliant with the EN 1563 standard, with a breaking load exceeding 400 kN, manufactured by an ISO 9001:2015 certified company. Composed of a rectangular frame at both the base and the top, aligned with the road level. The gully is equipped with a rectangular grating featuring parallel openings arranged in two rows; a 30 mm central concavity to ensure an ergonomic slope on the upper surface; a dedicated central space for the insertion of any lettering; and anti-slip reliefs. The product is ideal for parking areas, car parks and road gutters.



Technical features:

  • External dimensions: 400 x 500 mm
  • Height: 100 mm
  • Clear opening: 330 x 430 mm
  • Drainage: 5.89 dm²
  • Total weight: 37 kg
  • Material: ductile iron
  • Frame shape: rectangular
  • Frame without external perimeter flange
  • Cover shape: rectangular
  • Class: KN400
  • Manufactured according to EN 1563
  • ISO 9001:2015 certification
  • Breaking load > 250 kN
  • Space for potential customization
  • Grating with high drainage capacity

*Images are purely indicative

More Information
Length in millimetres 500.00
Depth in millimetres 400.00
Height in millimetres 100.00

Road gully with rectangular grating h638_153
