Road gully for kerb channels and parking areas h638_152

€151.76 VAT excl.
€182.11 VAT incl.
In stock
SKU
h638_152

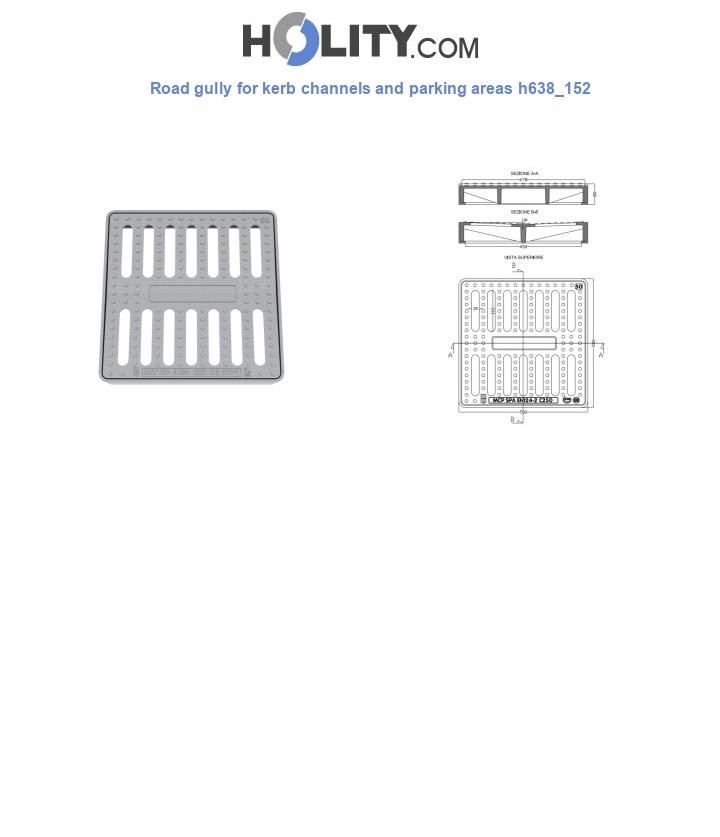

Road gully made of ductile iron with square cover. Class: C250. External dimensions: 500 x 500 mm.

Road gully made of ductile iron according to the latest edition of the UNI EN 124 standard, it is ideal for parking areas, kerb channels and interlocking block pavements. Produced by an ISO 9001:2015 certified company. Its structure consists of a frame, without external perimeter flange, with a square shape at both the base and the top, aligned with the road surface level. The product is equipped with a square-shaped grate fitted with parallel slots arranged in two rows; 8 mm central concavity to facilitate the useful slope on the extrados; central space for possible inscriptions; and anti-slip surface to ensure user safety.



Technical characteristics:

  • External dimensions: 500 x 500 mm
  • Height: 80 mm
  • Clear opening: 450 x 450 mm
  • Drainage: 6 dm²
  • Total weight: 36 kg
  • Material: ductile iron
  • Frame shape: square
  • Frame without external perimeter flange
  • Cover shape: square
  • Class: C250
  • Manufactured according to UNI EN 124 standard
  • ISO 9001:2015 certification
  • Breaking load > 250 kN
  • Identification detail of the external frame dimensions expressed in cm
  • Space for possible customization
  • Grate with high drainage capacity

*Images purely indicative

More Information
Length in millimetres 500.00
Depth in millimetres 500.00
Height in millimetres 80.00
