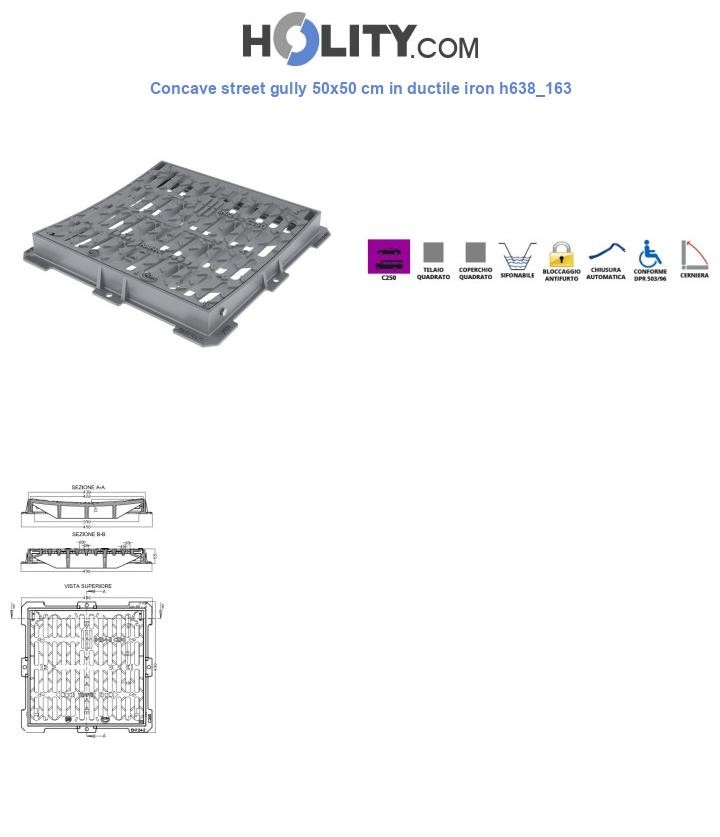

Square street gully, concave surface, in GJS-500-7 ductile iron. Concavity: 15 mm. Dimensions: 500 x 500 mm. Height: 55 mm.
To know shipping costs, add the product to your cart
Delivery Times 7-10 days
During August, holity will continue its online sales, but delivery times may be longer than those indicated.
Mon-Fri 9-13 / 14:30-18:30
The road gully h638_163 is made of GJS-500-7 ductile iron, compliant with the UNI EN 124 standard and designed for the effective drainage of rainwater in urban environments.
The square frame, with a reinforced support base and shaped perimeter flange, ensures stability and resistance to loads up to class C250. Its structure is designed for secure fixing, thanks to the presence of mounting holes for anchor bolts.
The concave grating with a depth of 15 mm facilitates water flow, reducing surface stagnation. Equipped with parallel slots, it allows a high discharge capacity (6.73 dm³), while the locking system with elastic appendages and shaped lugs ensures its tightness and prevents accidental openings.
The grating is articulated to the frame by means of nuts and bolts, reducing the risk of theft or tampering. Furthermore, the anti-slip reliefs improve the grip of the surface, making it safer for pedestrians and vehicles.
Perfect for installation in urban areas, parking lots, and thoroughfares with medium traffic, ensuring efficient drainage and road safety.
Trust the quality of the road gully h638_163! Buy it now for a robust and safe drainage system.
Technical features:
Frame features:
Grating features:
User benefits:
FAQ:
How much water can this gully drain?
The discharge capacity is 6.73 dm³, ensuring rapid and effective runoff even in the event of heavy rain.
In which environments can it be installed?
It is ideal for urban roads, parking lots, and areas with medium traffic, in compliance with load class C250.
Is the grating securely fixed?
Yes, it is equipped with a locking system with elastic appendages and articulation bolts that prevent accidental lifting or theft.
Which features improve safety?
The grating with anti-slip reliefs ensures greater grip, while the integrated locking system prevents accidental openings or tampering.
Is the grating surface anti-slip?
Yes, it features anti-slip reliefs that improve grip and increase safety for pedestrians and vehicles.
Mini buying guide:
If you are looking for a resistant, safe gully that complies with regulatory standards, the h638_163 model is the ideal choice.
Thanks to the ductile iron structure, the concave grating, and the integrated locking system, it ensures optimal drainage and maximum safety.
Perfect for urban roads and parking lots, it offers high durability over time and can be combined with an optional siphon, available upon request and not included in the supply, for better waste management.
Cast iron road gully, rainwater drainage grate, 50x50 cm square gully, concave gully class C250, gully with anti-tamper closure, urban drainage system, resistant ductile iron gully.
*Images for illustrative purposes only.
*Siphon not included in the supply. Polypropylene or cast iron siphon available for purchase separately, upon request.
| Length in millimetres | 500.00 |
|---|---|
| Depth in millimetres | 500.00 |
| Height in millimetres | 55.00 |
