Square road gully h638_34

€192.80 VAT excl.
€231.36 VAT incl.
In stock
SKU
h638_34

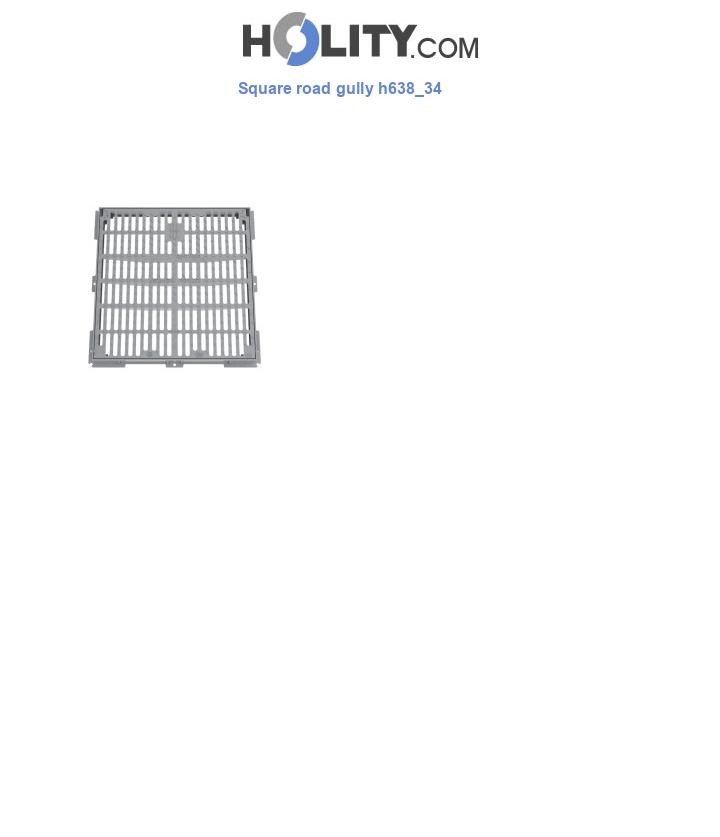

Road gully with square frame and grate. External dimensions: 800 x 800 mm. Height: 65 mm.

The road gully is a fundamental urban furniture element to ensure proper rainwater collection, preventing it from settling on the road surface. At the same time, the product represents a safety device aimed at preventing cars and pedestrians from suffering damage due to uneven road surfaces. The product features a ductile iron structure built according to UNI EN 124 standards and consists of a square-shaped frame both at the support base and at the top corresponding to the road level, and a square-shaped grate.



The frame is equipped with:

  • Continuous external perimeter flange on all four sides
  • Reinforcement ribs
  • Shaped lugs on the inner edge for locking the grate closing system
  • Holes for the grate hinge
  • Internal tabs at the four corners for housing an optional siphon



The grate is equipped with:

  • Parallel slots
  • Locking system, unlockable with a general lever
  • Holes for hinging to the frame
  • Pair of nuts and bolts inserted to prevent theft and tampering
  • Anti-slip embossing



Technical features:

  • Material: ductile iron UNI EN 124
  • Siphonable
  • Anti-theft locking
  • Automatic closing
  • External dimensions: 800 x 800 mm
  • Clear opening: 700 x 700 mm
  • Height: 65 mm
  • Discharge dm2: 22.09
  • Weight: 59 kg
  • Certification: ISO 9001:2015
More Information
Length in millimetres 800.00
Depth in millimetres 800.00
Height in millimetres 65.00
