Road gully with hinge h638_36

€68.40 VAT excl.
€82.08 VAT incl.
In stock
SKU
h638_36

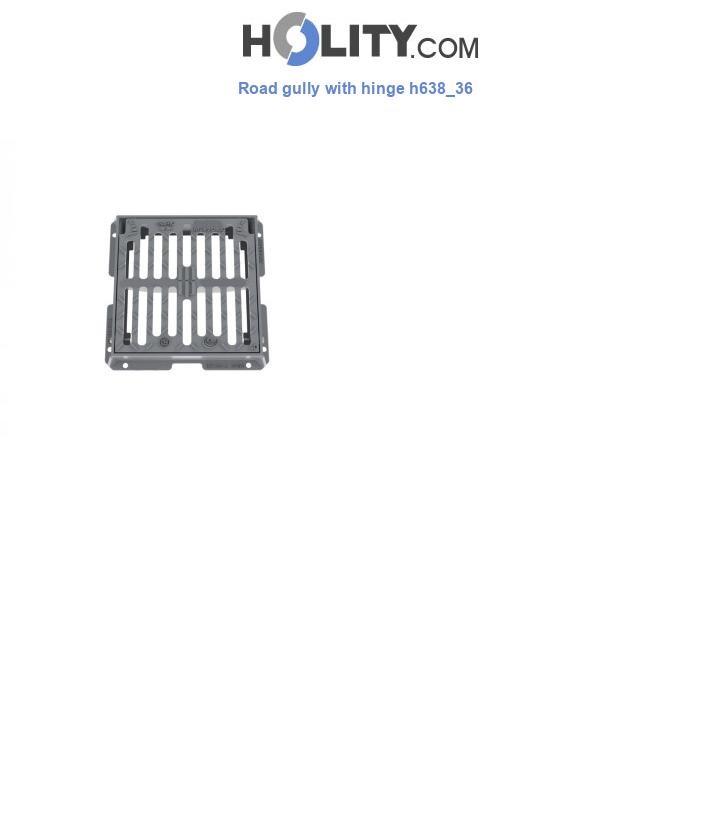

Flat road gully in ductile iron. External dimensions: 400 x 400 mm. Height: 75 mm.

The road gully is a fundamental urban furniture element to ensure proper rainwater collection, preventing it from accumulating on the road surface. At the same time, the product represents a safety device aimed at preventing cars and passers-by from suffering damage due to uneven road surfaces. The product features a ductile iron structure built according to UNI EN 124 standards and consists of a square-shaped frame at both the support base and the top corresponding to the road level, and a square grid.



The frame is equipped with:

  • Continuous external perimeter flange on all four sides
  • Reinforcing ribs
  • Shaped lugs on the inner edge for locking the grid closing system
  • Holes for grid articulation
  • Internal flanges at the four corners for housing an optional siphon



The grid is equipped with:

  • Parallel slots
  • Closing system, unlockable with a generic lever
  • Holes for articulation to the frame
  • Pair of nuts and bolts inserted to prevent theft and tampering
  • Anti-slip relief pattern



Technical features:

  • Material: ductile iron UNI EN 124
  • Siphonable
  • Anti-theft locking
  • Automatic closing
  • Hinge
  • External dimensions: 400 x 400 mm
  • Clear opening: 300 x 300 mm
  • Height: 75 mm
  • Drainage dm2: 3.98
  • Weight: 18.50 kg
More Information
Length in millimetres 400.00
Depth in millimetres 400.00
Height in millimetres 75.00
