Road gully with 6.85 dm2 drain h638_79

€102.60 VAT excl.
€123.12 VAT incl.
In stock
SKU
h638_79

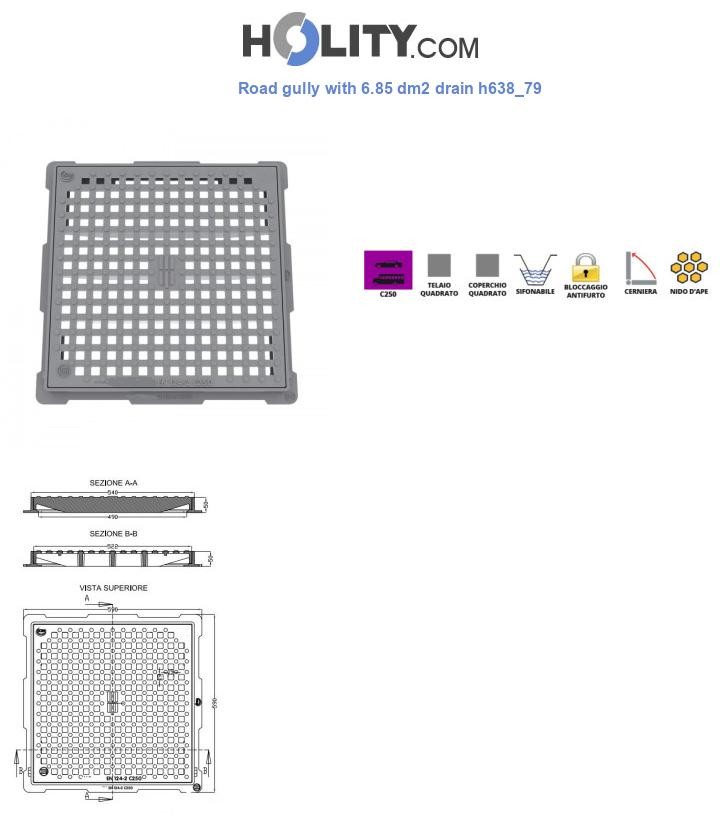

Spheroidal graphite cast iron gully with honeycomb grate. Dimensions: W.600xD.600xH.60mm

Road gully made of spheroidal graphite cast iron and provided with product size and manufacturing company identification according to current regulations. Structured with a honeycomb grate to provide high drainage capacity, being C250 load class and therefore suitable for installation at kerbsides for a fast and smooth drainage especially of rainwater, in order to avoid damaging flooding of roads and secondary streets. The road gully is ideal for cars and buses according to its trafficability group. The product also has a square-shaped frame with internal wings designed to accommodate a siphon not included. The structure is designed with a continuous external perimeter flange on the four sides of the frame, which serves to offer a greater support and anchoring base and is also equipped with anti-theft locking by means of a pair of nuts and bolts inserted into specific holes that allow the articulation of the grate to the frame to prevent any theft or tampering.



Technical features:

  • Material: spheroidal graphite cast iron
  • C250 load class for kerbsides, cars and buses
  • Dimensions: W.600xD.600xH.60mm
  • Clear opening: 500x500
  • Drain: 6.85dm2
  • Total weight: 33 kg
  • Siphonable
  • Siphon (not included)
  • Honeycomb grate
  • Flat surface
  • Breaking load >250kN
  • Anti-theft locking with a pair of nuts and bolts
  • Non-slip patterns and identification markings according to current regulations



More Information
Length in millimetres 600.00
Depth in millimetres 600.00
Height in millimetres 60.00
