Concave rainwater gully grating h638_43

Name: Concave rainwater gully grating h638_43
SKU: h638_43
Price: 190.32 EUR
Availability: InStock

€158.60 VAT excl.

€190.32 VAT incl.

In stock

SKU

h638_43

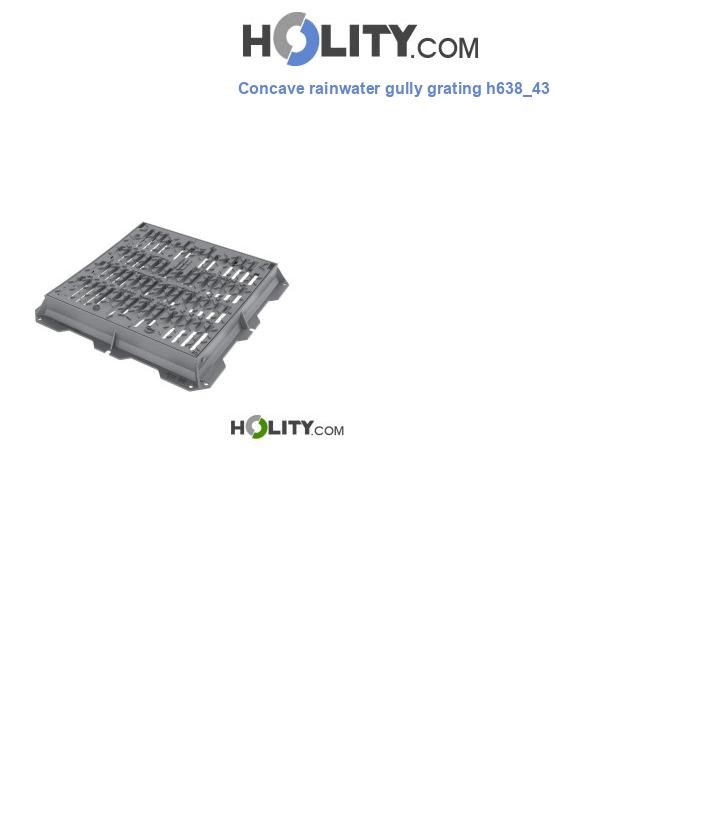

Road gully grating with square frame and grating. External dimensions: 600 x 600 mm. Height: 83 mm

Qty

Technical sheet

ASK FOR AN OFFER

Go to Road gullies

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The road gully grating is a fundamental urban furniture element to ensure correct rainwater collection, preventing it from accumulating on the road surface. At the same time, the product represents a safety device aimed at preventing cars and passers-by from suffering damage due to the uneven road surface. The product features a ductile iron structure built in accordance with UNI EN 124 and consists of a square-shaped frame at both the supporting base and the top corresponding to the road level, and a square-shaped grating.

The frame is equipped with:

External continuous perimeter flange on all four sides
Reinforcement ribs
Shaped lugs on the inner edge for locking the grating closure system
Holes for the grating articulation
Internal flanges prepared at the four corners for the housing of an optional siphon

The grating is equipped with:

Parallel slots
Locking system, unlockable with a generic lever
Holes for the articulation to the frame
Pair of nuts and bolts inserted to prevent theft and tampering
Anti-slip embossments

Technical features:

Material: ductile iron UNI EN 124
Trap-compatible
Anti-theft locking
Automatic closure
Hinge
External dimensions: 600 x 600 mm
Clear opening: 500 x 500 mm
Height: 83 mm
Discharge dm2: 13.10
Weight: 51 kg
Concavity: 8 mm

More Information
Length in millimetres	600.00
Depth in millimetres	600.00
Height in millimetres	83.00

Concave rainwater gully grating h638_43
