Electric vehicle charging box 11 kW h766_02

Regular Price €1,504.50 Special Price
€1,303.90 VAT excl.
In stock
SKU
h766_02

Electric vehicle charging station with 1 Type 2 panel socket, three-phase max. 16A (11 kW). Mounting: wall-mounted.

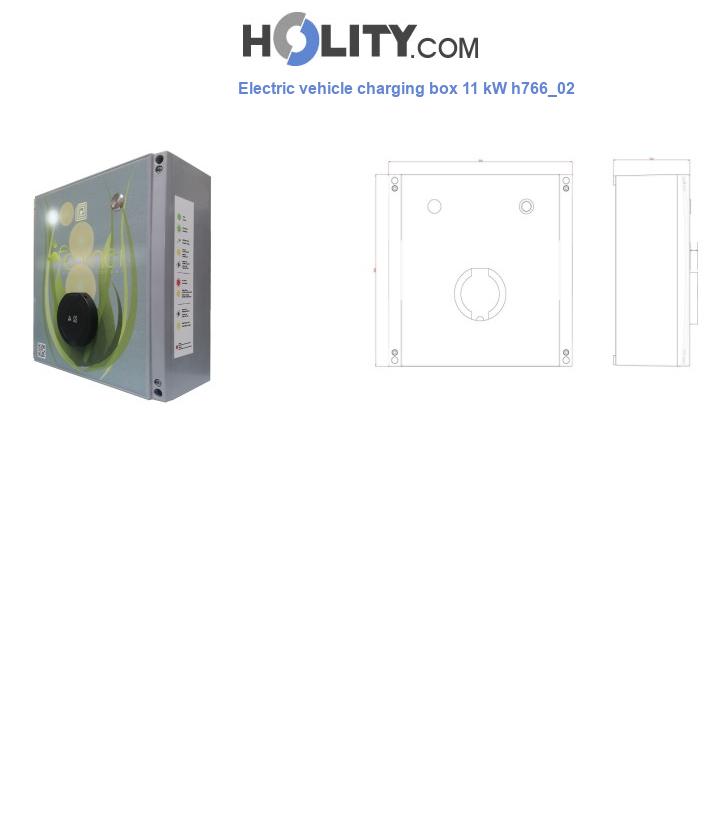

Electric vehicle charging box for wall-mounted installation. Basic three-phase max. 16A (11 kW) version with Type 2 socket with interlock, cover and shutter. The structure is made of fiberglass-reinforced polycarbonate. Complete with Type B residual current circuit breaker and MID-certified energy meter. Ideal for installation in public places or outdoor areas of hotels, companies, parking lots. Made in Italy.



Technical features:

  • Compact dimensions: W. 360 x D. 150 x H. 360 mm
  • Construction material: fiberglass-reinforced polycarbonate
  • Type 2 socket, three-phase max. 16A (11 kW)
  • Shutter, anti-extraction interlock and cover
  • Protection: Type B residual current device
  • Overcurrent and short-circuit protection
  • MID-certified energy measurement
  • Visual LED interface
  • Mode 3 charging with PWM pilot circuit
  • Control system with detection of correct cable insertion, charging status signal, socket availability signal
  • Automatic charging restart following power failure
  • Rated voltage: 400 Vac
  • Frequency: 50-60 Hz
  • Insulation voltage: 400 Vac
  • Protection degree: IP55
  • Operating temperature: -25°C  +40 °C
  • Color: RAL 7000
  • 1 anti-vandal start-stop charging button
  • Multi-color LED for socket status signaling
  • USB port (internal)
  • Mounting: wall-mounted or pole-mounted (not included)
  • Charging cable not included
  • Product complies with current regulations
  • Made in Italy





* Upon request and subject to a quote, a paid service for electric vehicle charging can be installed.

*Image purely indicative.

More Information
Height in millimetres 360.00
Length in millimetres 360.00
Depth in millimetres 150.00

Electric vehicle charging box 11 kW h766_02
