Electric car charging station h766_04

Regular Price €3,874.50 Special Price
€3,357.90 VAT excl.
In stock
SKU
h766_04

Electric car charging station with 2 Type 2 single-phase sockets max. 32A (7 kW) + single-phase max. 32A (7 kW). Material: painted sheet steel.

Painted sheet steel charging station for electric vehicle charging with 2 Type 2 single-phase sockets max. 32A (7 kW) + single-phase max. 32A (7 kW). Equipped with interlocking and one-hand shutter. A Type B RCD is present on each socket. MID energy meter included and LED visual interface. It is possible to customize the front plexiglass graphics as desired. Ground fixing provided. Product entirely Made In Italy and compliant with current regulations.



Technical features:

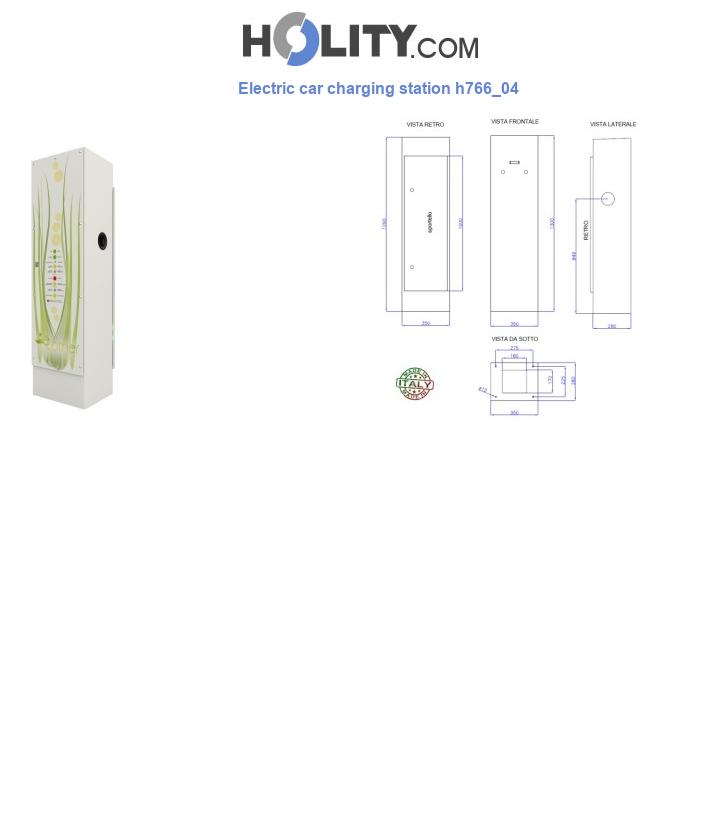

  • Compact dimensions: W. 350 x D. 280 x H. 1300 mm
  • Fixing: to the ground
  • Weight: approx. 40 kg
  • Material: sheet steel
  • 2 Type 2 Mennekes single-phase sockets with interlocking and one-hand shutter
  • Basic version single-phase max. 32A (7 kW) + single-phase max. 32A (7 kW)
  • Mode 3 charging with pwm pilot circuit
  • Overcurrent, short circuit and Type B residual current protection
  • Type B RCD on each socket
  • MID certified energy measurement with power, current measurement and internal displays for global consumption
  • Control system with detection of correct cable insertion, charging status signaling, availability signaling for each individual socket
  • Automatic charging restoration following power interruption
  • Frequency: 50-60 Hz
  • Protection degree: IP44
  • Operating temperature: -25 °C + 40 °C
  • 1 front plexiglass panel with E-CORNER screen printing (customizable upon request)
  • 1 backlit 2x16 line LCD display
  • 2 multi-color LEDs for socket status signaling
  • USB port (internal)
  • Charging cables not included
  • Compliant with current regulations
  • Made in Italy





* It is possible to customize the graphics of the front plexiglass panel and the color of the charging station as desired.

* Upon request and subject to a quote, it is possible to install the payment service for electric vehicle charging.

* Images are purely indicative.



More Information
Height in millimetres 1,300.00
Length in millimetres 350.00
Depth in millimetres 280.00
