• Total watertight insulation from atmospheric agents: Continuous welding on all sides and door seal gaskets prevent the entry of rain, humidity, salt spray, and dust, preserving the AED electronics outdoors.
• Active deterrence and security against theft: The synergy between the built-in 105 dB siren and the secondary 100 dB magnetic module with keypad activation instantly signals any tampering attempt acoustically.
• Immediate visual inspection of the AED status: The door equipped with a 4 mm thick transparent acrylic sheet allows citizens and rescuers to verify the effectiveness of the defibrillator while keeping the internal compartment protected.
• Optimized ventilation and thermal protection: The internal shelf with a removable grid facilitates natural hot air circulation, limiting overheating or condensation phenomena inside the cabinet exposed to the sun.
• Maximum visibility in emergency conditions: The RAL 1021 Yellow epoxy finish ensures immediate geometric identification of the cardioprotection point even from a great distance or in crowded urban contexts.
• Double logistic installation flexibility: The system includes both the 1000 mm pedestal with holes for stable floor fixing and the preparation for direct wall mounting of the cabinet, adapting to the site’s needs.
• Adjustable closure and controlled maintenance: The snap closure with adjustable tension ensures constant pressure on the gaskets and allows for the application of numbered seals or padlocks to discourage unauthorized opening.

This outdoor pedestal and watertight cabinet system find its optimal application in the creation of public cardioprotection stations within squares, municipal parks, coastal pedestrian paths, railway stations, bike paths, school courtyards, and historic centers. Thanks to the UV and salt-resistant RAL 1021 Yellow outdoor polyester finish, it represents the ideal tool to meet the operational needs of companies, marinas, campsites, stadiums, outdoor sports facilities, and industrial construction sites that require placing a semi-automatic defibrillator in compliance with the law and in total structural safety against vandalism directly on the ground or on the wall.

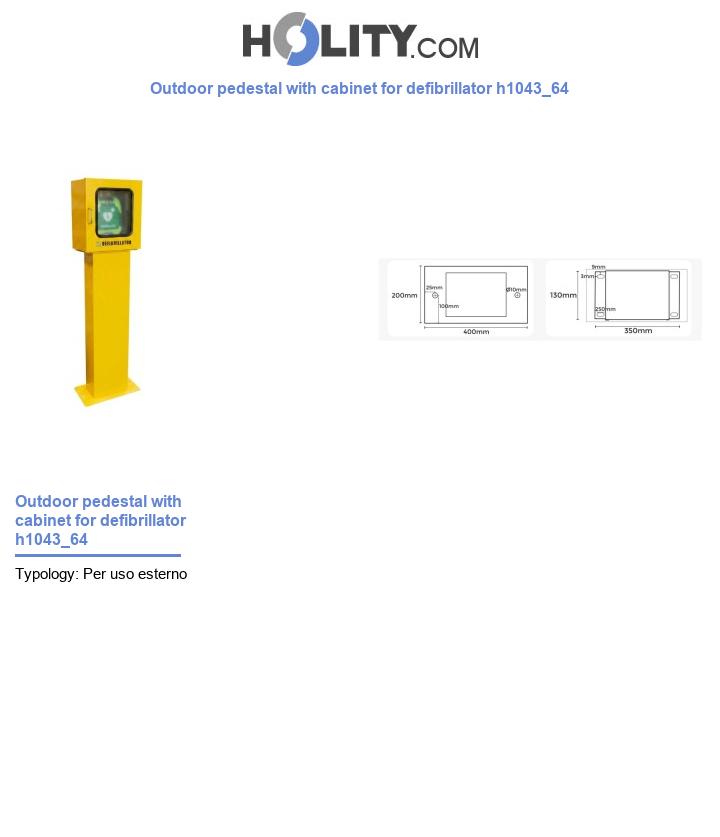

The h1043_64 model is the correct choice when the territorial security project requires a self-supporting outdoor AED station, painted with specific anti-UV powders and equipped with redundant battery-powered alarm systems up to 105 dB. It proves to be far preferable to common lightweight plastic cabinets or those without door seals in contexts exposed to driving rain, wind, or severe thermal excursions, as the combination of P02 galvanized carbon steel sheet (15/10 thickness for the cabinet) and watertight welds guarantees absolute impermeability and long durability. Choosing this totem means investing in a complete CE-approved system, provided with a grid for air circulation and a low battery indicator, optimizing the safety of the device according to fixed footprint dimensions (post 250x130x1000 mm) ideal for rescue mapping.

How is the water and dust tightness of this outdoor defibrillator cabinet guaranteed?

Unlike indoor cabinets that have simply folded or spotted joints, the cabinet of the h1043_64 model is made of heavy 15/10 thick carbon steel and features continuous watertight welds on all sides of the shell. Additionally, the internal perimeter of the door is equipped with special rubber gaskets arranged in the seal: when the copolymer handle operates the snap closure with tension adjustment, the door presses against the gasket, completely sealing the compartment from rain, water splashes, and fine dust.

How do the two integrated acoustic alarm systems work and how is it avoided that the siren remains deactivated due to dead batteries?

The system includes two independent magnetic anti-theft modules for maximum security: the first is integrated directly into the cabinet, is powered by a 9V alkaline battery, and emits a loud 105 dB acoustic signal as soon as the door is opened without authorization; this module has a visual indicator that signals when the battery is running low. The second is a CE-approved 100 dB auxiliary device with activation/deactivation via a numeric keypad powered by 3 button batteries, allowing maintenance personnel to disarm the system before routine inspections.

What is the technical function of the removable grid shelf inserted inside the cabinet?

When a metal cabinet is installed outdoors and directly exposed to sunlight, the internal air tends to heat up rapidly, creating dangerous temperature peaks that can compromise the functioning of the defibrillator batteries. The internal shelf is shaped with a geometric grid that promotes the natural circulation of hot air towards the upper areas of the cabinet, equalizing the internal temperature; being removable, it facilitates internal cleaning operations of the bottom of the cabinet from any accumulated condensation.
