• High Visibility H24 Free-Standing Station: The 1.48-meter Free-Standing nature combined with AED graphics and automatic LED twilight lighting makes the cardio-protection station immediately traceable from afar and in total darkness, accelerating intervention times.
• Active Thermal Protection Against Frost: During winter months, the integrated heating element activates autonomously (range 5°C - 20°C), keeping the compartment tempered to prevent freezing of the adhesive pads’ gel and the drop in the AED battery charge.
• Forced Ventilation Against Summer Heat: Under the direct action of solar rays or in hot months, the fan starts automatically when 40°C is exceeded, extracting hot air and safeguarding the delicate electronic circuits of the defibrillator.
• Diagnostic Visual Alarm (Red LEDs): If external weather conditions exceed the cabinet’s compensation capacity (internal temperature below 5°C or above 40°C), the red LEDs start flashing, immediately signaling to maintenance personnel that the thermal range is out of control.
• Lifesaving Emergency Access (Anti-Padlock): The reduced-hole loop prohibits locking the door with traditional padlocks, whose keys could be lost. Closing occurs via easy-break seals that anyone can break instantaneously in the event of cardiac arrest.
• Concealed and Safe System: The back cover of the stand allows the 24V electrical wiring to be inserted and neatly hidden inside the metal totem, protecting the line from tearing, wear, and vandalism.

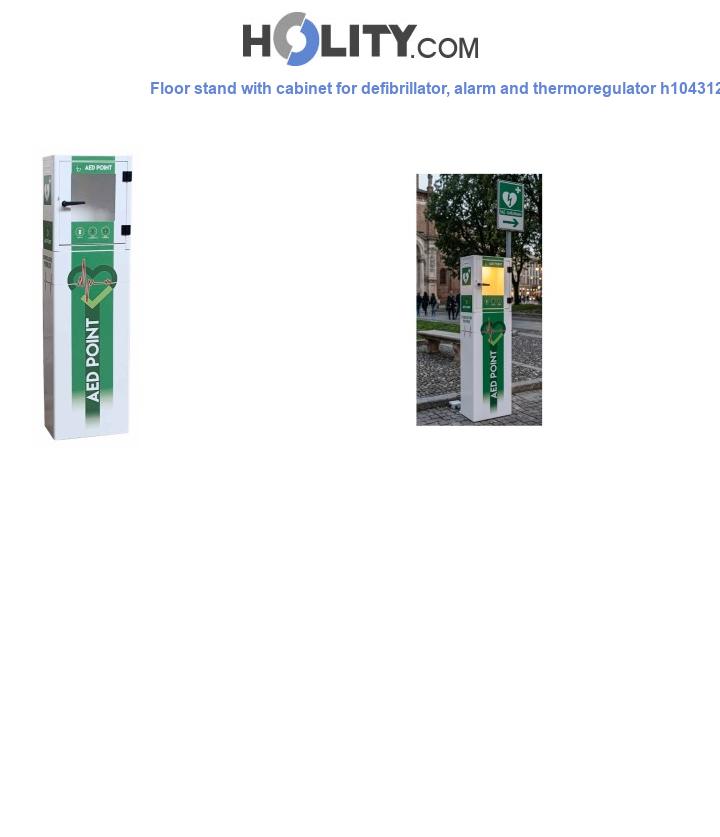

The technological totem h104312 is the preferred Free-Standing solution for establishing controlled and climate-controlled cardio-protected first aid points in areas without supporting walls or exposed to difficult climatic environments. It finds its perfect placement in public squares, historic city centers, municipal parks, gas stations, outdoor sports facilities, ports, railway platforms, construction areas and large industrial plants.

Choosing this complete totem means purchasing a **superior active, autonomous and monitored medical protection system**. Compared to traditional passive plastic cases (which expose the AED to the risk of freezing or overheating), the solid 14.5 kg electro-galvanized metal body ensures optimal insulation from atmospheric agents and excellent impact resistance. The 24-Volt low-voltage system ensures full compliance with current electrical safety standards in public and industrial places, positioning the defibrillator at the ideal height for the eyes and hands of rescuers at the moment when every second becomes vital.

Why is a temperature-controlled station essential for a defibrillator positioned outdoors?

Semiautomatic defibrillators (AED) are sensitive medical devices: they contain lithium batteries that rapidly lose efficiency below freezing point and adhesive pads whose conductive gel freezes or deteriorates if exposed to temperatures below 4°C or above 40°C. The totem h104312 actively heats or ventilates the compartment to ensure that the AED is always intact and ready for use.

What do the flashing red LEDs inside the cabinet indicate?

The flashing red LEDs are an automatic visual diagnostic system. It activates when the sensors detect that the internal temperature has dropped below 5°C or exceeded 40°C. It allows surveillance or maintenance personnel to understand at a glance, without opening the door, that the internal climate conditions are putting the defibrillator at risk.

How is the 24 Volt electrical connection made?

The entire electronic component set (control unit, heater, fan, alarm, and twilight lights) is powered at low voltage (24V). To maintain a clean aesthetic and protect the system, the stand is equipped with a removable back cover that allows the electrical cables to be passed inside the metal structure in a completely invisible way.

Why does the locking system prevent the use of rigid padlocks?

In cardiac emergencies, time is the most critical factor. The handle hole is specifically calibrated to accommodate only single-use security seals with easy breakage (plastic or light metal). This prevents the cabinet from being wrongly locked with a key, a circumstance that would prevent the immediate retrieval of the AED by occasional rescuers.

Do the cabinet and stand arrive already assembled? Are the floor bolts included?

The two modules are shipped in separate packaging to preserve the integrity of the painted surfaces during transport; the coupling on the top of the stand is an extremely simple operation to perform using the provided bolts. The mechanical bolts and screws for fixing the stand to the floor are not included and should be chosen based on the type of ground (concrete, asphalt, or stone).
