• Complete environmental protection: the IP44 rating and watertight welds protect the defibrillator from humidity, dust, and contaminants, preventing damage to the electrical circuit and malfunctions in critical situations.
• Maintenance of operating temperature: the active thermoregulation system with a +5°C/+20°C thermostat ensures that the AED batteries and components remain within ideal parameters, preserving the device’s effectiveness over time.
• Immediate visual monitoring: the front liquid crystal sensor allows for instant verification of the internal temperature without opening the cabinet, facilitating preventive maintenance and compliance with monitoring protocols.
• Rapid emergency accessibility: the ergonomic technopolymer handle and the snap-opening system allow for fast and secure access to the defibrillator during critical moments.
• Controlled access security: compatibility with padlocks and seals allows for restricting access to authorized personnel, ensuring compliance with hospital and corporate security protocols.
• Durability in harsh environments: the P0&sub2; carbon steel materials, anti-corrosion hinges, and contact gaskets guarantee long-term resistance even in humid, maritime, or outdoor environments.

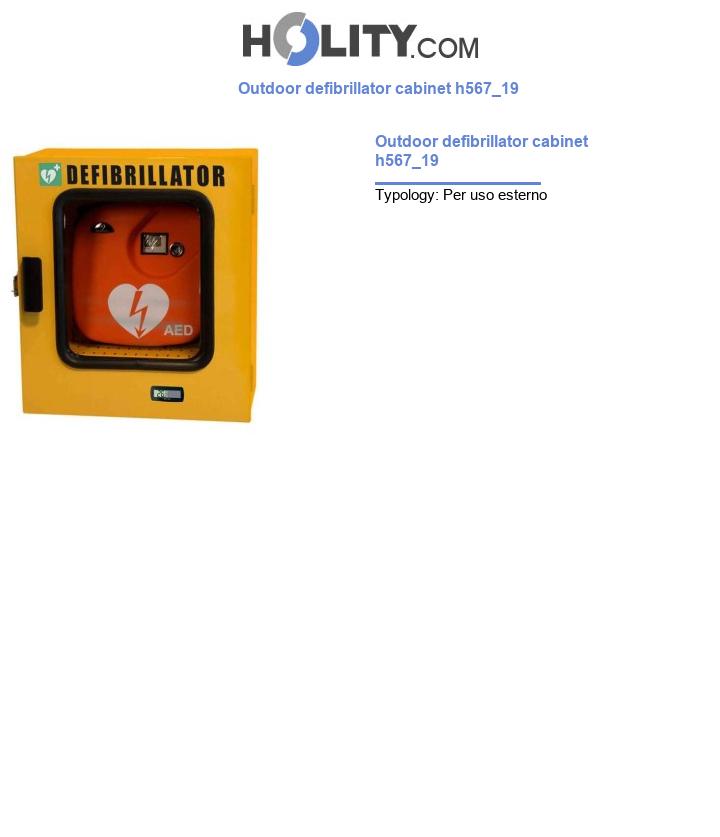

The cabinet is suitable for storing automated external defibrillators (AED) in healthcare, corporate, and public facilities where maintaining the device’s operating conditions is critical.

Hospital and clinical settings: wards, waiting rooms, corridors, and transit areas where the AED must remain promptly accessible and in optimal operating conditions 24/7.

Industrial and corporate environments: factories, plants, offices, and high-occupancy facilities where the AED is mandatory by law and must be protected from thermal variations and potentially corrosive environments.

Public and leisure facilities: stations, airports, shopping centers, gyms, swimming pools, and recreational facilities where exposure to humidity, thermal shocks, and uncontrolled access requires protection and thermoregulation.

Harsh environments: port areas, maritime plants, non-air-conditioned warehouses, outdoor or semi-outdoor structures where environmental conditions (humidity, extreme temperatures, saltiness) threaten the integrity of the device.

Choose this cabinet when regulatory compliance and the operational continuity of the defibrillator are priorities. It is the correct solution if the environment presents significant thermal variations (+5°C to +20°C not naturally controlled), high humidity, dust contamination, or potentially uncontrolled access.

Operational prerequisites: a power source (230V) is required near the installation to power the thermoregulation system. The installation environment must allow for minimum air circulation around the cabinet for thermal recirculation.

Decision scenario: if the defibrillator is installed in critical environments (hospitals, public facilities with free access, outdoor areas) and regulations mandate the maintenance of temperature and humidity conditions, this cabinet is indispensable. If the defibrillator is in a climate-controlled office with controlled access, passive protection solutions may be sufficient. However, active thermoregulation guarantees operational peace of mind regardless of environmental fluctuations, reducing the risks of malfunction during life-saving interventions.

How does this cabinet differ from non-thermoregulated passive solutions?

Passive cabinets offer protection from dust and humidity but do not control the temperature. This model integrates an active thermoregulation system that constantly maintains the internal environment between +5°C and +20°C, preventing battery deterioration and the loss of defibrillator effectiveness in environments with significant thermal variations. The 200W–230W electrical heater with an 80°C thermal protector and the thermostat guarantee complete protection regardless of external conditions.

Is a permanent power supply required?

Yes, the thermoregulation system requires a continuous 230V connection. The cable is insulated, and the 80°C thermal protector ensures safety even in the event of a fault. If the installation is in an area without a stable power supply, it is necessary to evaluate alternative solutions or provide an uninterruptible power supply (UPS).

What are the reference certifications and regulations?

The cabinet complies with the IP44 protection rating (protection against water splashes and dust), suitable for both indoor and outdoor environments. The construction specifications (watertight welds, contact gaskets, sealed closure) meet environmental protection standards for critical medical devices. For installation in healthcare facilities, verify local compliance with regulations on the storage of defibrillators.

Is the internal shelf removable or only adjustable?

The shelf is height-adjustable using specific fastening systems, allowing the internal space to be adapted to the specific dimensions of the defibrillator. It is not completely removable, but the adjustment provides sufficient adaptability for various AED models.

How do you use the liquid crystal temperature sensor?

The sensor is positioned on the front face and shows the internal temperature in real time. It allows for quick visual verification during maintenance checks without opening the cabinet. If the temperature falls outside the +5°C/+20°C range, you can adjust the thermostat or check the system power supply.

How do you apply a padlock or a compliance seal?

The snap closure is designed with attachment points for padlocks and compliance seals (not supplied). This allows for monitoring and tracking access to the defibrillator, ensuring compliance with hospital security protocols and regulatory audits.
