• Universal installation and housing: The totem structure is designed to allow the application of all types of defibrillator cabinets, offering a standardized support.
• Optimal resistance to outdoor corrosion: The pre-treatment via phosphodegreasing and subsequent 180° firing of the powder coating protect the steel sheet from the degrading action of the weather.
• Immediate AED visual inspection: The windowed door of the cabinet allows staff and passers-by to instantly verify the presence and status of the defibrillator without having to open the case.
• Quick access and 180° total opening: The hinges with galvanized pin allow a full opening of the door up to 180°, facilitating the removal of the life-saving device during the frantic phases of an emergency.
• Secure and tamper-proof closure: The lockable seal closure system in nickel-plated zamak prevents accidental or unauthorized openings, ensuring the integrity of the medical device contained.
• Integrated space for messages and signage: The large surfaces of the totem allow for the application of clear hazard indications or the hosting of advertising and informational communications of any kind.

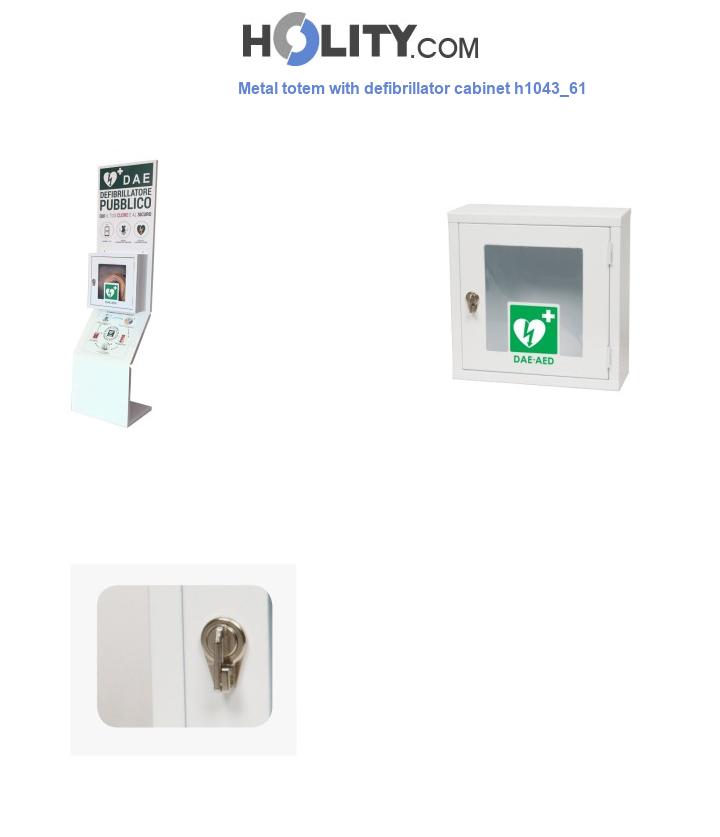

This self-supporting metal totem with AED cabinet finds its optimal application in the safety equipment of squares, public parks, urban avenues, historical centers, and railway stations. Thanks to the robust pre-treated steel structure suitable for indoors and outdoors, it represents the ideal protection to complete the first aid plans of companies, shopping centers, schools, universities, sports facilities, gyms, and industrial areas that need to position a visible and accessible cardioprotection point within a coordinated planimetric footprint of 38 x 50 cm.

The h1043_61 model is the right choice when the facility’s safety plan requires a 25 kg heavy self-supporting monoblock module for the visible positioning of a defibrillator, excluding the need to be bound to masonry walls. It proves preferable to simple wall-mounted cases in open contexts or those with high pedestrian flow, as the 15/10 PO2 carbon steel structure and the powder-coated galvanized case guarantee mechanical stability and a lasting barrier against impacts and atmospheric agents. Choosing this totem means investing in a complete system equipped with an internal hook, AED sticker, and nickel-plated zamak closure, which respects precise geometric dimensions (190 cm total height) for correct architectural integration.

How does the installation of the defibrillator on this self-supporting totem differ from a traditional wall-mounted case?

The traditional wall case requires the presence of a suitable load-bearing wall and limits the visibility of the life-saving device to only those passers-by who transit adjacent to the wall itself. The h1043_61 self-supporting totem, thanks to its 190 cm high pedestal and a weight of 25 kg, can be placed in an isolated manner in the center of squares, corridors, or commercial halls, making the defibrillator visible from all directions and offering large surfaces for hazard indications or advertising communications.

What industrial treatments guarantee the protection of the totem sheet metal and the cabinet from the action of external atmospheric agents?

For outdoor installation, the PO2 carbon steel totem structure (thickness 15/10) is subjected to a phosphodegreasing process in high-temperature tunnels and subsequently painted with polyester powder and fired at 180°. The 6.8 kg internal cabinet is instead made of P02 carbon steel sheet subjected to galvanization and finished with RAL9010 epoxy-polyester powder with an identical 180° thermal gallery passage, creating a double protective barrier against rust and oxidation.

How is the security of the defibrillator inside the case guaranteed and what is the function of the internal hook?

The cabinet is provided with an internal hanging hook that serves to keep the defibrillator in a stable and vertical position, preventing it from falling when the door is opened. Security against theft or tampering is ensured by a lockable seal closure in nickel-plated zamak, which keeps the case firmly closed but allows for rapid forced or unlocked opening in case of an actual medical emergency.
