• Dusk-to-Dawn Night Location: The electronic sensor detects the drop in ambient light, automatically activating the internal LEDs. This keeps the defibrillator illuminated and perfectly visible in the dark, outdoors, or in unattended industrial areas.
• Active Surveillance with Alarm: Unauthorized opening of the door instantly triggers a loud acoustic alarm that acts as a powerful deterrent against vandalism or theft, while signaling an ongoing medical emergency.
• Fast and Secure Access (Anti-Padlock): The small-hole slot prohibits locking the door with traditional padlocks, whose keys could be lost. Closing is done via easy-break seals that anyone can break in a few moments in case of cardiac arrest.
• Total Resistance and Protection: The electro-galvanized steel body combined with the rubber gasket protects the expensive AED device from driving rain, road dust, humidity, and temperature fluctuations, extending the useful life of the medical components.
• Clean and Concealed Installation: The rear cover of the pedestal allows routing the 24V power cables inside the metal structure, protecting the system from tearing, wear, and malicious tampering.

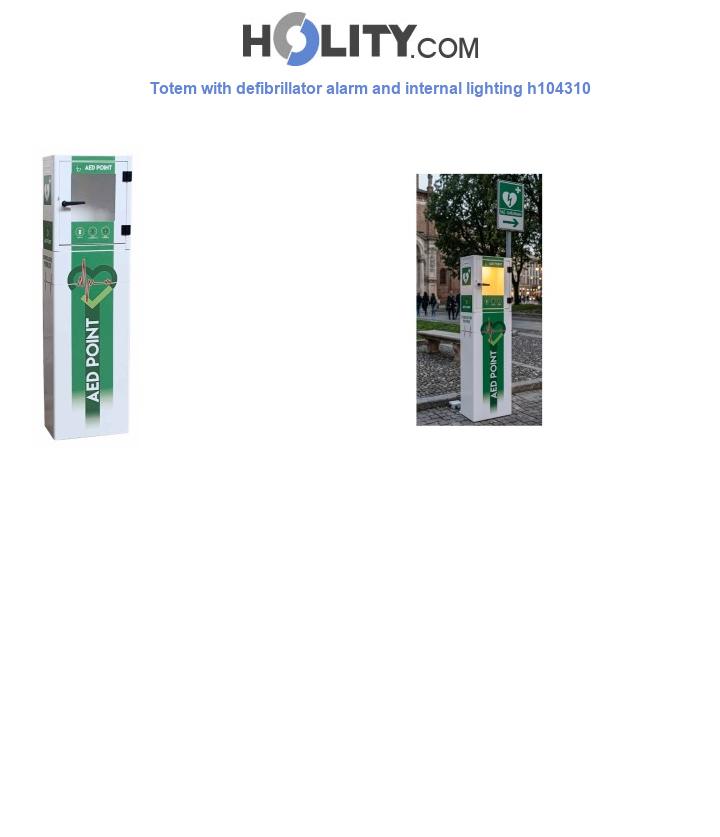

The h104310 technological totem is the ideal Free-Standing solution for establishing visible 24/7 cardio-protected first aid points in areas without supporting walls or with high pedestrian flow, such as public squares, urban centers, parks, railway platforms, subway stations, company entrances, large industrial plants, hotel lobbies, and shopping malls.

Choosing this complete configuration means opting for an advanced, autonomous, and monitored cardio-prevention station. Unlike passive or plastic cases, the solid 14.5 kg metal structure guarantees excellent stability and impact resistance. The 24-Volt low-voltage system ensures maximum compliance with electrical safety standards in public and workplaces, positioning the defibrillator at the perfect height for the eyes and hands of rescuers when every second becomes vital.

How does the internal dusk-to-dawn lighting system work?

A dusk-to-dawn sensor is installed inside the cabinet, calibrated to detect surrounding brightness. When the ambient light decreases (for example, at sunset or when the hall lights are turned off), the electronic circuit automatically turns on the internal LEDs, making the AED clearly identifiable through the plexiglass.

What type of power supply is required and how is the wiring done?

The electronic system (alarm and lights) requires a 24-Volt low-voltage line power supply. To maintain a clean aesthetic and protect the cables, the pedestal is equipped with a removable rear cover that allows the conductors to pass inside the totem in a completely invisible way.

Why does the locking system prohibit the use of traditional padlocks?

In a cardiac arrest situation, time is the most critical factor. The handle hole is calibrated to accommodate only single-use, easy-break safety seals (in plastic or light metal). This prevents the cabinet from being mistakenly locked with a key, a circumstance that would make it impossible for rescuers’ timely retrieval of the AED.

Do the pedestal and the cabinet arrive already assembled? Are the floor bolts included?

The cabinet and the pedestal are shipped disassembled in separate packaging to preserve the integrity of the painted surfaces during transport; coupling at the top is easily done using the provided bolts. Mechanical anchors and screws for fixing the pedestal to the floor are not included and should be chosen based on the type of ground (concrete, asphalt, or tiles).
