What is the difference in resistance between class B125 and higher classes?

Class B125 is certified to withstand up to 12.5 tons, making the manhole cover suitable for pedestrian areas and sidewalks. For areas with heavy vehicle traffic or highway lanes, higher classes such as C250 or D400 are required.

Is it possible to insert a specific entity’s logo on the lid?

Yes, the lid is provided with a space specifically dedicated to the insertion of any identification writing or logos, such as those related to the contracting entity or the type of underlying plant.

What are the holes on the frame flange for?

The holes are designed to allow the mechanical fixing of the frame to the foundation using anchor bolts. This anchoring system ensures that the manhole cover remains perfectly level with the road surface over time.

Road manhole cover with square lid h638_195

Name: Road manhole cover with square lid h638_195
SKU: h638_195
Price: 232.9 EUR
Availability: InStock

€194.08 VAT excl.

€232.90 VAT incl.

In stock

SKU

h638_195

Square manhole cover in ductile iron B125, external 900x900 mm. Equipped with "U" anti-odor seat, reinforced perimeter flange and anti-slip surface.

Qty

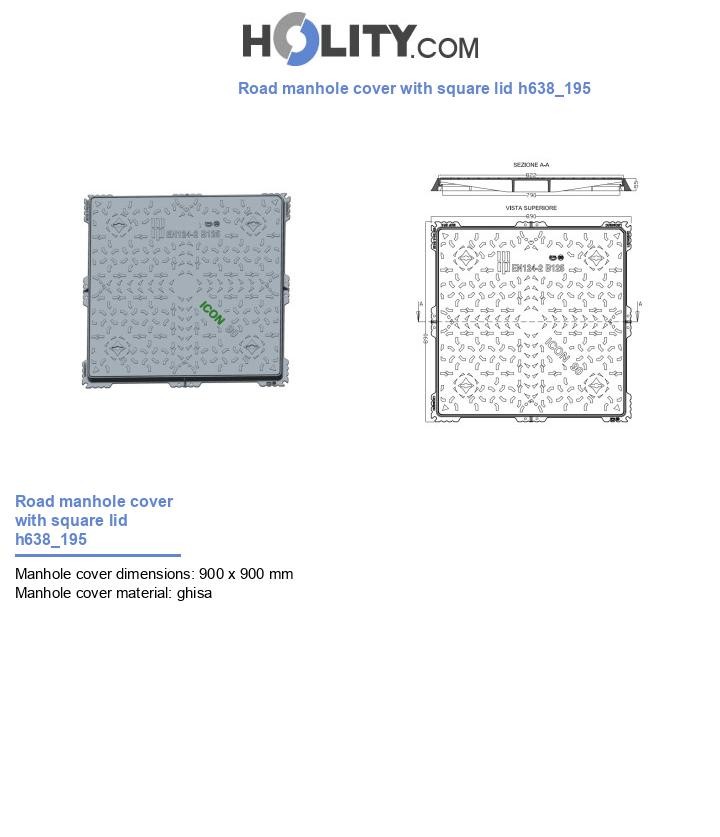

Technical sheet

ASK FOR AN OFFER

Go to Road Manhole Covers

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The road manhole cover with square lid h638_195 is a technical covering device made of ductile iron GJS-500-7 in accordance with the EN 1563 standard. Certified in class B125, it is designed for installation in pedestrian areas, sidewalks and parking areas, guaranteeing a load resistance of 12.5 tons. This model solves the problem of unpleasant fumes coming from underground utilities thanks to an internal "U" seat which, filled with sand or inert materials, ensures odor-tightness. The frame structure is optimized for stable anchoring by means of an external perimeter flange equipped with holes for anchor bolts and reinforcement ribs, making it a reliable support for large-scale water or sewage networks.

Technical characteristics

Material: Ductile iron GJS-500-7 (EN 1563)
Load class: B125 (12.5 ton test load)
External dimensions: 900 x 900 mm
Clear opening: 800 x 800 mm
Height: 55 mm
Weight: 50 kg
Configuration: Square frame and lid
Company certification: ISO 9001:2015
Special features: Odor-tight "U" seat and anti-slip reliefs

* Image purely indicative

User benefits

Scope of application

Why Choose It

FAQ

More Information
Material manhole covers	ghisa
manhole_dimensions	900 x 900 mm

Road manhole cover with square lid h638_195
