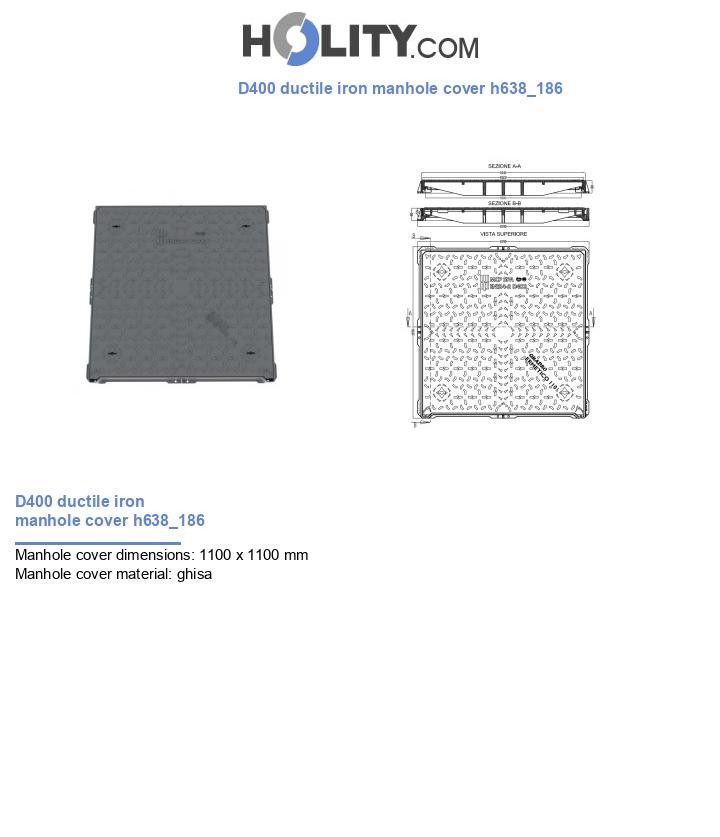

The D400 h638_186 ductile iron manhole cover is a high-resistance crowning device designed for installation in areas subject to heavy loads. Made of GJS-500-7 ductile iron in accordance with the EN 1563 standard, it guarantees a breaking load exceeding 400kN. The structure consists of a square frame optimized for anchoring to the foundation via perimeter flanges and holes for anchor bolts, and a cover equipped with anti-slip embossments. A distinctive technical feature is the internal “U” seat, which allows sealing the manhole against unpleasant odors by filling it with sand or similar materials. The precision of the beveled corners ensures a unique and stable insertion of the cover into the frame.
Technical features
Material: GJS-500-7 ductile iron (EN 1563)
External dimensions: 1100 x 1100 mm
Clear opening: 1000 x 1000 mm
Height: 80 mm
Weight: 145 kg
Load class: D400 (Breaking load > 400kN)
Company Certification: ISO 9001:2015
Surface: Anti-slip embossments for water runoff
Frame Construction Details
Continuous perimeter flange for maximum support base
Beveled corners for easy anchoring and holes for anchor bolts
Reinforcement ribs for structural stability
“U” seat for odor tightness
Cover Construction Details
Closed-bottom slots for lifting keys
Maximum interlocking depth to prevent oscillations
Area dedicated for customization of logos or text
Beveled corner for unique positioning
Dimensional identifier expressed in cm
* Images are purely indicative
User Benefits
High Load Capacity: The D400 class allows installation in road carriageways, parking lots, and stopping areas for heavy vehicles in total safety.
Odor barrier: The sealing system with a “U” seat is essential for improving environmental comfort in urban areas, blocking sewage fumes.
Silent Stability: The deep interlocking and unique positioning prevent the cover from moving or producing metallic noises when vehicles pass.
Weather Resistance: Ductile iron offers superior durability compared to grey cast iron, resisting impacts and corrosion more effectively.
Safe Surface: The design of the embossments is studied to guarantee grip for tires and pedestrians, favoring the runoff of rainwater.
Scope of application
The h638_186 manhole cover is ideal for use in carriageways, industrial areas, port areas, and logistics centers that require large access points (1 meter clear opening). It is particularly suitable for municipal sewage networks, technological inspection pits, and treatment plants located in areas open to traffic or near inhabited areas thanks to its odor-tight design.
Why Choose It
Choosing this product means opting for an ISO 9001:2015 certified item, designed in every detail to last over time. With a weight of 145 kg, the h638_186 model offers superior solidity compared to lighter versions, ensuring that the road crowning remains intact even under continuous mechanical stress. It is the right choice for those seeking maximum reliability for inspections of large conduits and a stable and professional installation.
FAQ
What is meant by "Clear Opening"?
Clear opening represents the actual free passage space (1000x1000 mm) once the cover is removed, essential for allowing the entry of operators or equipment into the manhole.
What are the closed-bottom slots for?
They are used for attaching lifting keys. The "closed bottom" prevents mud and debris from falling into the manhole, while also facilitating surface cleaning.
Is it possible to fix the frame to concrete?
Yes, the frame is equipped with specific holes for inserting anchor bolts, allowing direct mechanical anchoring to the concrete foundation for permanent stability.
