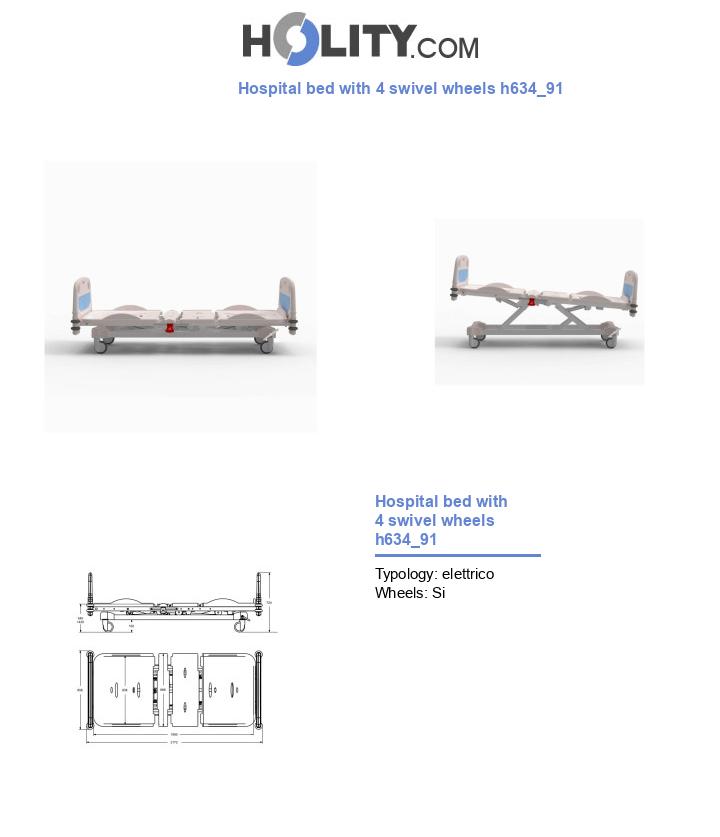

The H634_91 electric hospital bed is a professional solution designed to ensure maximum safety, accessibility, and comfort in inpatient, long-term care, and rehabilitation wards. Designed for patients with reduced mobility, the elderly, and post-operative subjects, this bed improves the quality of care thanks to fully motorized functions and an ergonomic structure.

The 4-section mattress platform, made of steel and protected by thermoformed technopolymer covers, is easily sanitizable and designed to adapt to the patient’s anatomy. The backrest and thigh sections are motorized, while the leg section is gas spring servo-assisted, synchronized with the movement of the thigh part. Height adjustment is carried out via an electric pantograph with an excursion of up to 420 mm, allowing easy access to the bed and preventing injuries in case of accidental falls.

Thanks to the 4 non-marking Ø125 mm swivel wheels with centralized brake and directional mode, the H634_91 bed is easily maneuverable, even in the most complex hospital environments. The lever-based elevation system also allows for Trendelenburg and reverse Trendelenburg positions, essential for certain therapies and clinical maneuvers.

The 10-button perimeter handset, with a 3.5 m coiled cable, is intuitive and also designed for visually impaired patients, thanks to the membrane with raised pictograms and an IP66 protection rating against dust and liquids. The ABS head and footboards are removable with a safety lock to facilitate access for healthcare workers and emergency procedures. The base frame, also protected by a thermoformed ABS cover, offers a ground clearance of 150 mm for the easy entry of patient lifts.

This configuration makes the H634_91 bed ideal for healthcare facilities looking for a complete, hygienic, functional product that complies with the safety standards required in the medical sector.

Contact us now to receive a detailed quote or to request assistance in configuring the H634_91 bed based on the needs of your hospital ward.

Technical features:

• Structure: steel with anti-corrosion pretreatment and epoxy coating

• Dimensions: W 217.2 x D 95.8 x H 72.4 cm

• Frame color: white

• Side rails and boards color: grey

• Mattress platform: ergonomic 4-section with sanitizable thermoformed covers

• Motorized movements: electric backrest and thigh section, servo-assisted leg section

• Adjustable platform height: from 340 mm to 724 mm (+420 mm excursion)

• Adjustment system: electric lever-based (pantograph)

• Trendelenburg and reverse: motorized via pantograph

• Wheels: 4 non-marking Ø125 mm swivel wheels with centralized and directional brake

• Head/Footboards: in ABS, removable with safety lock

• Base frame: with protective thermoformed ABS cover

• Handset: 10 buttons, 3.5 m coiled cable, raised pictograms, IP66 rating

• Lift compatibility: base-to-floor distance 150 mm

• Pre-setting: for safety side rails (see optional)

Optional:

• Pair of side rails and pre-setting: folding and removable lateral rails, compass-style

User benefits:
• Improves: safety thanks to the reduced minimum height.
• Promotes: patient autonomy during entry and exit phases.
• Facilitates: the work of healthcare personnel with full electric movements.
• Ensures: high hygiene with removable and washable components.
• Offers: a comfortable experience thanks to the ergonomic 4-section mattress platform.

FAQ:

1. Is the bed equipped with wheels?
   Yes, the bed is equipped with 4 wheels.

2. Is it compatible with patient lifts?
   Yes, the 150 mm distance from the floor allows for the use of mobile lifts in total safety.

3. Does the bed come with side rails?
   The bed is pre-set for side rails (available as an optional extra).

4. Is it suitable for use in intensive care units?
   Yes, thanks to the complete electric adjustments, Trendelenburg position, and safety features, it is also ideal for critical patients.

5. What certifications does the product have?
   The bed complies with current medical regulations regarding electrical and mechanical safety, IP protection of the handset, and sanitization of materials.

Mini buying guide:
If you are looking for a hospital bed for a hospital or healthcare facility, first consider the height adjustment, which is essential for preventing falls and facilitating the work of operators. Choose models with electric movements, ideal for quickly adapting to therapeutic needs. The structure must be sanitizable, with materials resistant to hospital detergents. Also, ensure the bed is compatible with side rails, lifts, and other clinical accessories. Finally, verify that it is certified and complies with health and safety standards: the H634_91 model fully meets all these requirements.

Electric hospital bed, H634_91 hospital bed, motorized hospital bed, 4-section medical bed, professional bed for hospital wards, adjustable height hospital bed, accident-prevention medical bed.

*Images purely indicative.
