The 3-joint and 4-section nursing bed represents a perfect blend of functionality and comfort, designed to ensure maximum support for patients. With bed base measurements of 90x200 cm, its external supporting structure is made of rectangular section steel profiles, while the frame of the moving sections is in oval section steel tube. The bed base is composed of wooden slats that ensure perfect weight distribution, supported by mattress holder rails. Full electric movement, managed via two 24V DC motors and a practical handset, allows for the adjustment of the headrest and the leg section, ensuring adequate customization of the patient’s position. Additionally, the foot section features a rack adjustment, while the pelvis section remains fixed for stability. The head and footboards, with an internal structure in painted steel tube and wooden covering with natural beech finish, are equipped with built-in guides for the insertion of side rails. The bed legs, integrated into the boards and equipped with four swivel castors with independent brakes, offer optimal mobility, allowing the bed to be moved easily. The bed base height adjustment, between 43 and 86 cm, is facilitated by two electric motors positioned in the head and footboard panels. Furthermore, the bed is equipped with a Trendelenburg movement up to 12° and anti-Trendelenburg up to -12°, easily controlled from the handset. The vertical sliding rails, fixed to the boards, can be lowered and removed via locking and unlocking buttons, ensuring safety and practicality. Finally, the finish with epoxy powder coating on a grey-colored sandblasted surface gives an elegant and resistant appearance, while the equipment includes a patient lifting pole with triangle and adjustable nylon strap, for even more effective assistance.

Technical characteristics:

• Total external length: 215 cm
• Total external width: 102 cm
• Internal length (base): 190 cm
• Internal width (base): 88 cm
• Base/ground height: 43 - 86 cm
• Headboard height: 50 cm
• Castor diameter: 12.5 cm
• Rated actuator voltage: 24 V
• Supply voltage: 230 V, 50Hz
• Active power consumption: 100 W
• Intermittent operation: 2-18
• Insulation class: Class II
• IP protection degree: IP X4
• 3-joint and 4-section bed with variable height and full electric movement
• Bed base measurements: 90x200 cm
• Base frame with perimeter supporting structure in rectangular section steel profiles and mobile section frame in oval section steel tube
• Bed base in wooden slats with mattress holder rails
• Headrest and leg sections adjustable via two 24V DC electric motors and handset
• Foot section with rack adjustment
• Fixed pelvis section
• Head and footboards with internal structure in painted steel tube and wooden covering with natural beech finish; upper edge in solid wood and built-in guides for side rails
• Legs integrated into the boards
• 4 swivel castors Ø 125 mm each with independent brake
• Vertical movement of the bed base between 43 cm (minimum height) and 86 cm (maximum height), adjustable via two electric motors inserted in the head and footboard panels
• Trendelenburg movement up to 12° and anti-Trendelenburg up to -12°, controllable from the same handset
• Two-post vertical sliding side rails with natural beech finish, fixed to the boards with sliding devices; lock/unlock buttons for lowering and removing the rails
• Epoxy powder coating finish on sandblasted surface, grey color
• Equipped with patient lifting pole complete with triangle and adjustable nylon strap

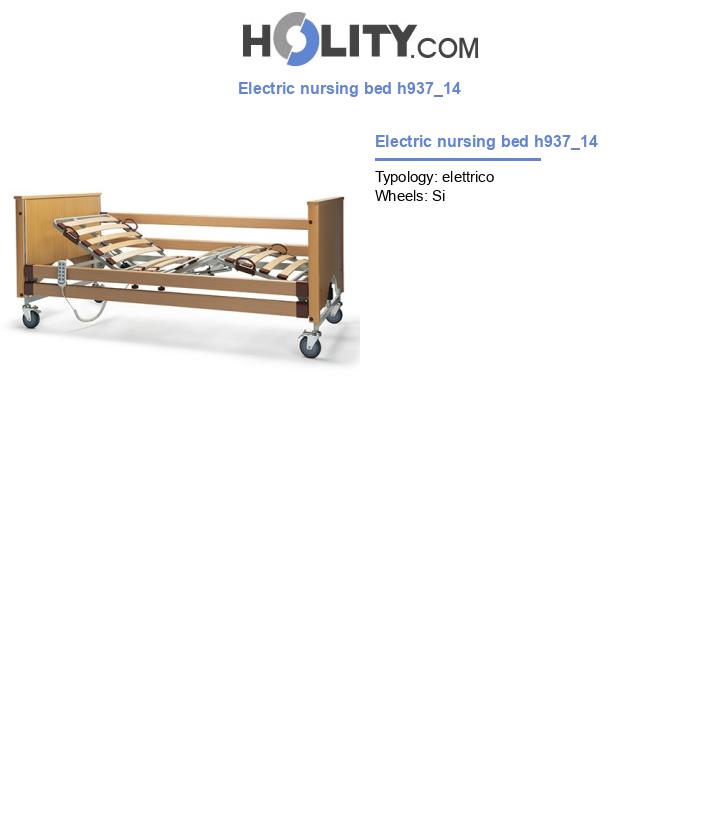

*Image purely indicative.
