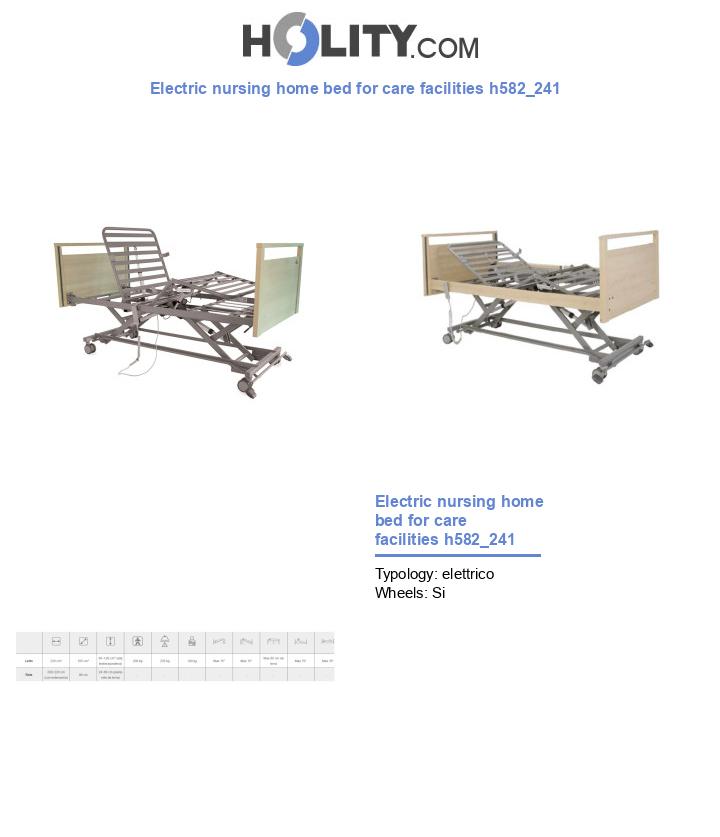

The Electric nursing home care bed H582_241 is intended for the care of individuals hospitalized for health reasons at healthcare and welfare institutions or in a home care setting. It is the ideal solution for healthcare facilities and nursing homes that demand the best without sacrificing a modern approach: this bed combines advanced ergonomics, contemporary design, and high functionality, making it an excellent choice for those aiming for reliable performance and a current aesthetic.

The solid three-section structure with steel slats is designed to offer optimal support during hospitalization. The elevation system with a pantograph allows for extremely versatile electric height adjustment, facilitating both access to the bed and daily care operations. On the safety and management front, the central braking bar allows for quick and stable locking, while the ease of cleaning supports simplified hygiene and maintenance, essential aspects in high-turnover care environments.

In case of emergency, the bed is equipped with an integrated battery lowering system, which allows for the restoration of operation even in the absence of power. It is supplied without side rails, leaving maximum freedom for customization based on the specific needs of the facility or the patient. The product is compliant with the UNI CEI EN 60601-2-52 standard and is indicated for Application Environment Type 3 and 4 according to EN 60601-2-52, with a maximum patient weight of 200 kg and a safe working load of 235 kg. Adjustments include mattress platform height 24–80 cm, backrest up to 70°, leg lift up to 35°, footrest -25/0° in 5 ratchet steps, and inclination up to 15°, to adapt positioning to clinical and care needs.

Buy the H582_241 electric care home bed now or request a quote for multiple supplies for healthcare facilities, nursing homes, and home care.

Technical characteristics:

• Intended use: care in healthcare/welfare institutions and home care setting

• Compliance: UNI CEI EN 60601-2-52

• Application environment: Type 3 and 4 (EN 60601-2-52 standard)

• Maximum patient weight: 200 kg

• Safe working load: 235 kg

• External dimensions: 209 x 105 x 73–129h cm

• Bed base dimensions: 200 x 90 cm

• Maximum height at the ends: 129 cm

• Minimum frame height: 24 cm

• Mattress platform height: 24–80 cm

• Maximum backrest angle: 70°

• Maximum leg lift angle: 35°

• Footrest angle: -25/0° (5 ratchet steps)

• Inclination angle: 15°

• Total weight: 140 kg

• Electric kit weight: 57 kg

• Force required to operate controls: 5 N

• Wheels: 10 cm twin castors with centralized brake

• Braking: central braking bar (quick and stable locking)

• Elevation system: pantograph (electric height adjustment)

• Structure: 3 sections with steel slats

• Equipment: supplied without side rails (for customization)

• Emergency system: lowering with integrated battery

• Power supply: 230V Vac 50/60 Hz Max 2.1A

• Control unit output voltage: 24V Dc

• Protection class: IP X4

• Insulation class: Class 2

• Applied part: Type B

• Noise level: < 53 dB at 1 mt distance

• Main materials - bed base: painted steel

• Main materials - structure and head/footboards: wood

User benefits:

• Adjustment: versatile height thanks to the pantograph (mattress platform 24–80 cm) to facilitate access and assistance.

• Support: optimal with three-section structure and steel slats.

• Greater: operational safety with central braking bar and twin castors with centralized brake.

• Continuity: in emergency with integrated battery for operation/lowering even without power.

• Hygiene: easier thanks to the ease of cleaning and simplified maintenance.

FAQ:

1. Is the H582_241 bed also suitable for home care?
   Yes, it is suitable for both healthcare facilities and nursing homes as well as for home care.

2. What does pantograph elevation mean and what advantage does it offer?
   The pantograph allows for very versatile electric height adjustment, useful for facilitating access to the bed and care operations.

3. Is the bed supplied with side rails?
   No, it is supplied without side rails to leave maximum freedom for customization according to the needs of the facility or the patient.

4. What happens in case of a power failure?
   There is a lowering system with an integrated battery that allows for operation even in the absence of power.

5. What are the capacity and regulatory compliance?
   Maximum patient weight 200 kg, safe working load 235 kg, compliant with UNI CEI EN 60601-2-52 (Application Environment Type 3 and 4).

Mini buying guide:

If you are considering a care bed for a nursing home or a healthcare facility that “demands the best,” focus your attention on ergonomics and operational management. A distinctive element is the elevation system with a pantograph, because it makes height adjustment more versatile and useful both for patient access and daily care activities; in this model, the mattress platform varies from 24 to 80 cm. Then consider the quality of support: the three-section structure with steel slats is designed to ensure optimal support during hospitalization. In a professional context, safety in movements is fundamental: the central braking bar and the twin castors with centralized brake help to achieve quick and stable locking. Always check solutions for operational continuity: the integrated battery for emergency lowering is an important plus in case of a blackout. Finally, for personalized setups, it is useful to know that the bed is supplied without side rails, so the facility can choose the configuration best suited to its procedures and the patient’s needs, while maintaining compliance with UNI CEI EN 60601-2-52 (Type 3 and 4).

H582_241 care bed, pantograph electric care bed, nursing home bed, healthcare facility bed, electric home care bed, UNI CEI EN 60601-2-52 medical bed, bed with emergency battery, bed with centralized brake, steel slat bed, modern design care bed.

*Images purely indicative.
