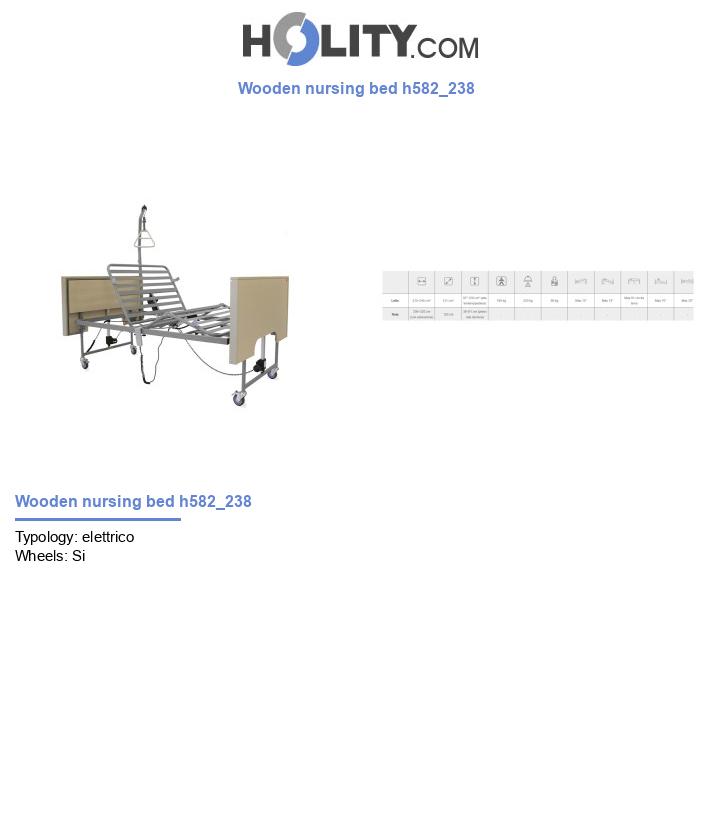

The Wooden nursing bed H582_238 is a nursing bed intended for the assistance of people hospitalized for health reasons at healthcare and social care institutions or in a home care setting. Thanks to the 200 x 120 cm bed base (width 120 cm), it is designed to offer superior comfort and safety, making it ideal for contexts such as nursing homes, residential care homes, and home care.

The system is equipped with four independent motors that allow for accurate and functional adjustments: two motors manage the vertical elevation of the bed, while the other two regulate the movement of the backrest and legs. This configuration allows the patient’s position to be precisely adapted, promoting a correct and comfortable posture according to the needs of the stay. The robust tubular steel frame guarantees stability and durability over time, while the wooden headboard and footboard provide a warmer and more welcoming appearance, integrating more harmoniously even into domestic environments.

In emergency situations, the lowering system with integrated battery allows for the restoration of the horizontal position even in the event of a power failure, ensuring operational continuity and safety. The bed complies with the UNI CEI EN 60601-2-52 standard and is indicated for Application Environment Type 3 and 4 according to EN 60601-2-52. From a technical point of view, it offers defined movement and usage parameters: bed base height 38–81 cm, maximum headrest angle 70°, maximum legrest angle 30°, footrest angle -25/0° in 3 ratchet steps and inclination up to 15°, supporting a maximum patient weight of 185 kg and a safe working load of 220 kg.

Purchase the Wooden nursing bed H582_238 now or request a quote for multiple supplies for nursing homes, healthcare facilities, and home care.

Technical specifications:

• Intended use: hospital stay in healthcare/social care institutions and home care settings

• Compliance: UNI CEI EN 60601-2-52

• Application environment: Type 3 and 4 (EN 60601-2-52 standard)

• External dimensions: 215 x 131 x 87–129h cm

• Bed base dimensions: 200 x 120 cm

• Maximum height at the ends: 129 cm

• Minimum frame height: 38 cm

• Bed base height: 38–81 cm

• Maximum headrest angle: 70°

• Maximum legrest angle: 30°

• Footrest angle: -25/0° (3 ratchet steps)

• Inclination angle: 15°

• Total weight: 115 kg

• Electrical kit weight: 18 kg

• Force required to operate controls: 5 N

• Wheels: 10 cm

• Maximum patient weight: 185 kg

• Safe working load: 220 kg

• Motorization: 4 independent motors (2 vertical elevation + 2 backrest and leg movement)

• Emergency system: lowering with integrated battery to restore horizontal position

• Power supply: 230V Vac 50/60 Hz Max 2.1A

• Control unit output voltage: 24V Dc

• Protection class: IP X4

• Insulation class: Class 2

• Applied part: Type B

• Noise level: < 53 dB at 1 mt distance

• Main materials - bed base: painted steel

• Main materials - frame and side rails: wood

Benefits for the user:

• Increased: comfort during the stay thanks to the 120 cm bed base (200 x 120 cm).

• Adjustments: precise with 4 independent motors to adapt backrest, legs, and elevation.

• Continuity: and safety with integrated battery for return to horizontal position in case of emergency.

• Stability: and durability thanks to the tubular steel structure.

• Integration: more harmonious in the domestic environment with wooden headboard and footboard.

FAQ:

1. Is the bed suitable for healthcare facilities and nursing homes?
   Yes, it is intended for use in healthcare and welfare institutions and is indicated for Type 3 and 4 application environments according to EN 60601-2-52.

2. Can it also be used at home?
   Yes, it is also suitable for home care, thanks to its comfort, electrical adjustments, and wooden finishes more suited to domestic environments.

3. What happens if there is a power failure?
   The bed has a lowering system with an integrated battery, which allows the horizontal position to be restored even in the event of a power interruption.

4. What adjustments does it allow and what are the maximum angles?
   It allows vertical elevation and backrest/leg movement. Angles: headrest 70°, legrest 30°, footrest -25/0° (3 ratchet steps), inclination 15°.

5. What is the load capacity of the bed?
   It supports a maximum patient weight of 185 kg and a safe working load of 220 kg.

Mini buying guide:

When choosing an electric nursing bed for care facilities or home care, first check that it complies with the relevant regulations: in this case, UNI CEI EN 60601-2-52 compliance and the indication for Application Environment Type 3 and 4 are central elements. Then evaluate the size of the bed base according to comfort needs: a width of 120 cm offers more space than narrower sizes. Another key point is the motorization: the 4 independent motors allow for more complete and precise adjustments, useful for better managing posture and positioning. Also consider the bed base height range (38–81 cm) because it affects the practicality of care maneuvers. Finally, for safety and operational continuity, the presence of an emergency solution is important: the system with an integrated battery that allows for the return to the horizontal position in the event of a blackout is a decisive plus in both healthcare and home settings.

Nursing bed H582_238, wooden nursing bed, 120 cm electric orthopedic bed, 4-motor nursing bed, bed for nursing homes, bed for care homes, home care bed, UNI CEI EN 60601-2-52 bed, IPX4 medical bed, nursing bed with integrated battery.

*Images purely indicative.
