• Floor-level access without obstacles: The configuration without a base allows for the insertion and removal of entire cylinder cages directly at ground level, reducing physical effort and optimizing department logistics.
• Total prevention of theft and tampering: The device composed of a sealable and lockable closure blocks access to the compressed gas valves, ensuring that only authorized personnel can carry out removals or replacements.
• Total compliance and legal safety: The 12/10 galvanized steel structure prevents the accumulation of dangerous gases thanks to the anti-stagnation system, meeting the prerequisites established by regulations on the outdoor storage of compressed gases.
• Physical ease of maneuvering with ramp: The presence of the included ramp eliminates the entry step, allowing the operator to safely slide the cages or individual 50-liter cylinders into the compartment.
• Anti-seismic and anti-fall internal stability: The preparation for internal subdivision into lanes combined with safety chains prevents loose cylinders from swaying or accidentally tipping over during handling phases.
• Absolute resistance to rust outdoors: The hot-dip galvanizing treatment on the entire sheet metal and the protruding roof protect the cabinet and the cylinders from rain, snow, and direct sun, eliminating extraordinary maintenance costs.

This gas cylinder safety cabinet finds its ideal application in the outdoor areas of engineering workshops, chemical industries, and production plants that manage the storage of technical gases through entire metal cages moved by forklift or pallet truck. It is a fundamental safeguard outside of clinics, hospital facilities, laboratories, and research centers that use medical or pure gases in 50-liter cylinders. Thanks to the increased depth of 1300 mm and the structure without a base suitable for anchoring to the ground, it is perfect for being positioned in peripheral storage areas exposed to all weather conditions, guaranteeing the safety of company boundaries.

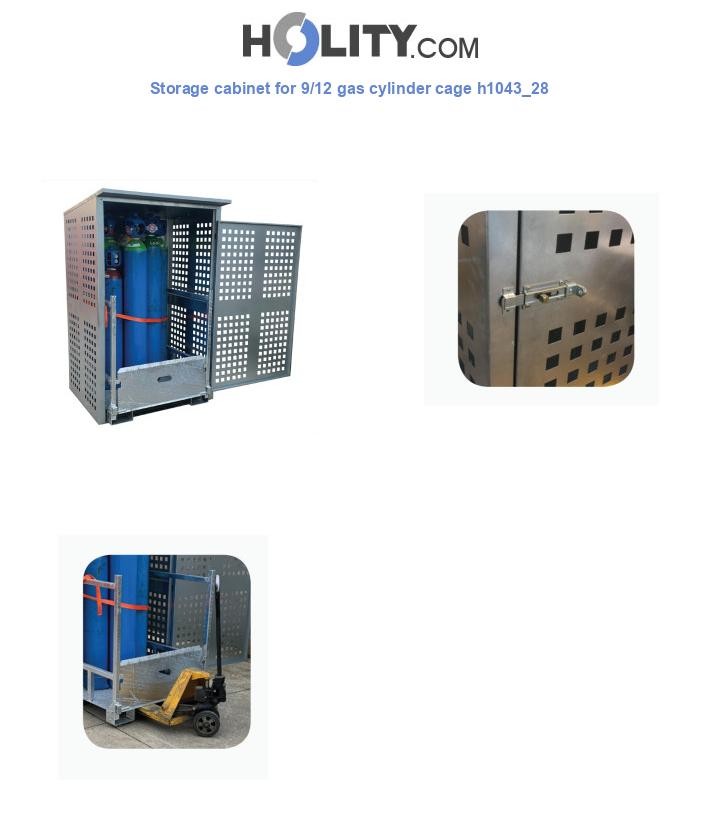

The h1043_28 model is the correct choice when company logistics requires a deep ground-level cabinet (1200x1300x2000h mm) suitable for containing an entire cage of 9 or 12 cylinders without forcing operators to unload individual drums. It represents the optimal solution for companies needing a heavy and durable monobloc structure, thanks to the steel sheet as thick as 12/10 and the certified capacity of 865 kg. Choosing this cabinet means equipping yourself with a flexible system (palletizable when empty) and ready for compliance, complete with all indispensable operational details (access ramp, safety chains for lanes, and padlock preparation), with the freedom to integrate an internal cylinder cage sold separately only if necessary.

What is the operational advantage of a cylinder cabinet configured without a base?

The absence of the lower base eliminates any barrier or fixed structural step at the bottom of the cabinet. This feature allows for housing and positioning heavy metal cages or cylinder pallets directly on the ground of the company yard, facilitating insertion via pallet truck or roller conveyors and reducing risks related to manual lifting of loads to zero.

Is the internal cylinder cage included in the package or must it be purchased separately?

The internal cylinder cage is excluded from the standard supply and is sold separately. This design choice guarantees maximum versatility of use: the cabinet can be used either as an external protective shell for cages owned by gas suppliers, or later equipped with a fixed internal cage for the storage of loose Ø 230 mm cylinders.

Why does structural compliance expressly forbid the stagnation of gas residues in the cabinet?

In the event of micro-leaks from cylinder valves, compressed gases (many of which are flammable, toxic, or oxidizing) could accumulate inside a sealed compartment, creating a saturated atmosphere at very high risk of explosion or asphyxiation for the operator. This cabinet is designed to guarantee continuous natural air recirculation, immediately expelling any residue or fumes to the outside.
