• Full compliance and legal safety: The 12/10 galvanized steel structure prevents the accumulation of dangerous gases thanks to the anti-stagnation system, meeting the prerequisites established by regulations on the storage of compressed gases.
• Total prevention of theft and tampering: The device consisting of a sealable and lockable closure blocks access to the cylinder valves, ensuring that only authorized personnel can perform withdrawals.
• Physical facilitation of loading maneuvers: The presence of the included ramp eliminates the need to manually lift the heavy 50-liter drums, allowing the operator to slide them safely into the compartment.
• Absolute resistance to rust outdoors: The hot-dip galvanizing treatment on the entire sheet metal and the protruding roof protect the cabinet and the cylinders from rain, snow, and direct sun, eliminating extraordinary maintenance costs.
• Internal anti-tip stability: The internal division into lanes combined with the safety chains prevents the cylinders from oscillating or accidentally falling against each other during the withdrawal phases.
• Installation and relocation flexibility: The palletizable base allows companies to move the entire empty cabinet via a common pallet truck or forklift, facilitating the layout of external yards.

This safety cabinet for gas cylinders finds its ideal application in the outdoor yards of mechanical workshops, structural steelworks, and production plants where the use of technical gases for welding or thermal cutting requires a centralized reserve. It is a fundamental safety feature outside of clinics, hospital facilities, chemical laboratories, and research centers that use medical or pure gases in 50-liter cylinders. Thanks to the structural robustness suitable for anchoring to the ground and the protruding protective roof, it is perfect for being positioned in peripheral storage areas exposed to all weather conditions, guaranteeing the safety of the company boundaries.

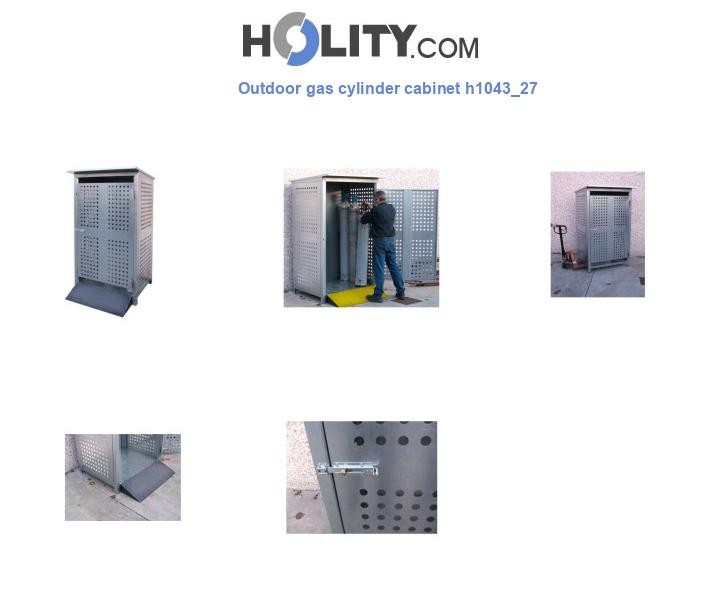

Model h1043_27 is the correct choice when heavy-duty high-capacity storage (12 cylinders) is required that strictly complies with outdoor natural ventilation constraints, avoiding dangers arising from gas leaks. It represents the optimal solution for companies needing a durable monobloc structure, thanks to the steel sheet as thick as 12/10 and the certified load capacity of 865 kg. Choosing this cabinet means equipping yourself with a ready-to-use system complete with all essential operational details (access ramp, lane safety chains, and padlock provision), eliminating the need to purchase separate accessories for bringing the area up to code.

Why does structural compliance expressly forbid the stagnation of gas residuals in the cabinet?

In case of micro-leaks from the cylinder valves, compressed gases (many of which are flammable, toxic, or oxidizing) could accumulate inside a sealed compartment, creating a saturated atmosphere at very high risk of explosion or asphyxiation for the operator. This cabinet is designed to guarantee continuous natural air recirculation, immediately expelling any residuals or fumes to the outside.

What operations are facilitated by the ramp included in the cylinder cabinet equipment?

A fully loaded 50-liter cylinder has a considerable weight and is unstable to lift manually. The provided metal ramp creates a continuous inclined plane between the external ground and the base of the cabinet, allowing the operator to transport and position the ø 230 mm cylinders by rolling them vertically without effort and without the risk of losing balance.

What does it mean that the cabinet is palletizable and when can it be moved?

The term palletizable indicates that the bottom base of the cabinet is engineered with profiles suitable for the insertion of the forks of a forklift or a pallet truck. This feature allows the cabinet to be unloaded, moved, and positioned at the desired point of the outdoor yard with maximum speed. Mechanized handling must strictly take place with the cabinet completely empty.
