• Total prevention of workplace accidents: Rigid confinement inside the metal frame prevents rolling, mutual impact, or accidental falling of the cylinders, eliminating the risk of valve breakage or explosions.
• Optimization of logistics times: Thanks to the 170 mm fork channels, the forklift operator can pick up and transfer up to 4 cylinders simultaneously in a single trip, reducing downtime in the welding or production departments.
• Double flexible anchoring system: The 740 mm integrated safety chains allow for firm securing of the cylinders both on the outer perimeter and in the central dividing section, ensuring stability even with partial loads.
• Resistance to external and atmospheric agents: The galvanized steel finish protects the structure from rust, making the cage ideal for both indoor workshop use and permanent outdoor storage in yards or cylinder cages.
• Universal compatibility with forklifts: The geometry of the bottom pockets (usable center distance and 70 mm height) allows for easy insertion of the forks of almost all electric pallet jacks and standard forklifts on the market.
• Compact and space-saving structure: With a footprint of only 500x860 mm, the setup allows for rationalizing space inside warehouses, keeping technical gases organized by type and ready for use.

This forkliftable cage finds its ideal application in metal carpentry departments, construction sites, mechanical workshops, and body shops where the use of gas for welding (oxygen, acetylene, argon, mixtures) requires continuous movement from storage to the workstation. It is a fundamental logistical device for medical and technical gas storage depots, in chemical plants, and industrial laboratories. Thanks to the robustness of the galvanized structure and the 350 kg capacity, it is perfect for being moved safely on paved yards, loading ramps, and warehouses with uneven flooring.

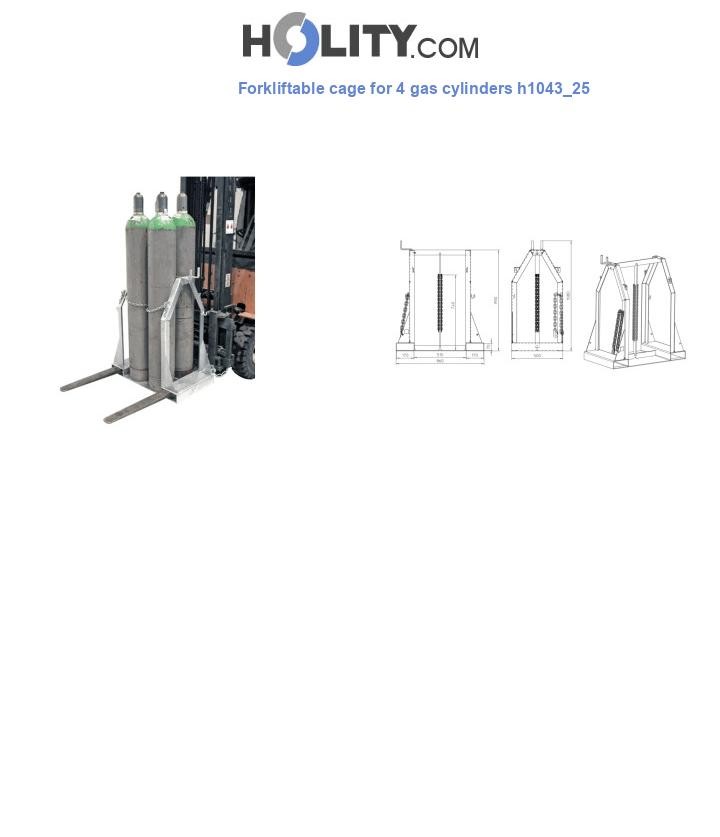

The h1043_25 model is the right choice when a heavy, certified, and durable cylinder transport system is required, capable of eliminating risks related to the manual handling of heavy and unstable loads. It represents the optimal solution compared to classic two-wheeled manual trolleys because it allows for direct integration with the company’s mechanized logistics (forklifts). Choosing this cage (weight 55 kg) means investing in a high-engineering structural product that, thanks to the precise dimensions from the technical drawing (500x860x1080h mm) and the presence of reinforced fork channels and upper lifting hooks, guarantees maximum versatility and safety in any industrial scenario.

Is it possible to use the cage for transporting empty cylinders or those with a capacity of less than 50 liters?

Yes, the cage is designed to accommodate cylinders up to a maximum diameter of 23 cm, typical of 50-liter formats. It is also possible to house cylinders of lower height or capacity (and exhausted cylinders), provided the diameter allows for correct tightening using the integrated safety chains at 740 mm from the ground, to prevent oscillation during transport.

Are the forklift pockets equipped with anti-slip locking systems?

The structure is equipped with closed fork channels welded to the frame with a width of 170 mm and a height of 70 mm. This deep geometric configuration exploits the weight of the cage itself (55 kg empty) and the load (up to 350 kg) to generate natural friction that prevents slipping from the forklift forks during normal maneuvering acceleration and braking.

Can the cage also be lifted by crane, overhead crane, or hooks from above?

Yes, analysis of the technical drawing shows the presence of upper vertical hooks at the top of the structure. These supports allow for the attachment of external vertical lifting systems such as overhead cranes, hoists, or construction cranes, expanding the operational modes beyond traditional ground handling via forklift.
