Safety cabinet for gas cylinder storage h1043_46

Regular Price €829.20 Special Price
€612.20 VAT excl.
€734.64 VAT incl.
In stock
SKU
h1043_46

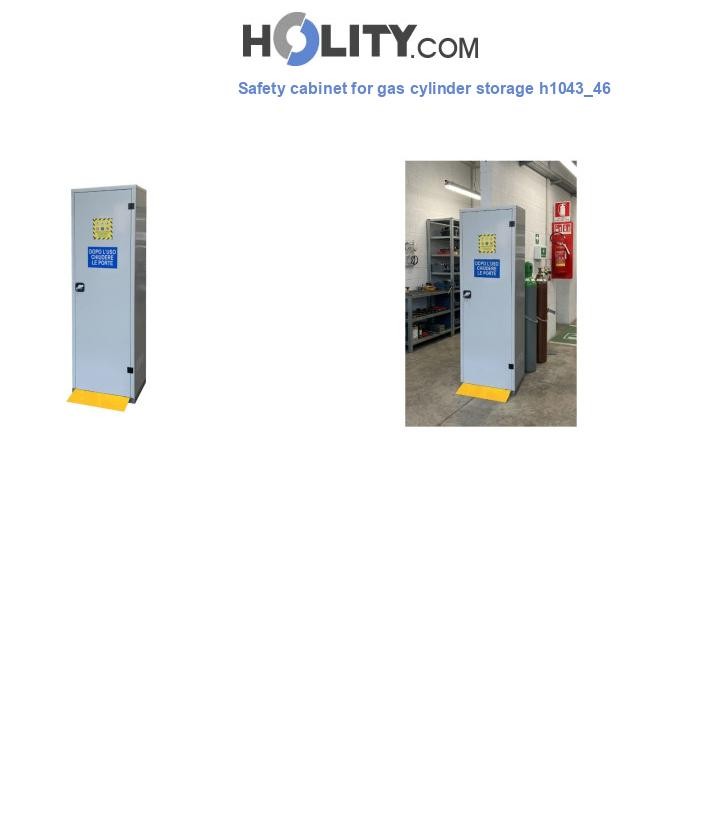

Modular safety cabinet for gas cylinders in P02 steel gray RAL 7038, with fire-stop grids and reinforced galvanized bottom. Dimensions: 575 x 500 x H 1850 mm.

The safety cabinet for gas cylinder storage (model h1043_46) is a modular technical structure developed specifically for the protected containment of compressed gas containers in full compliance with industrial prevention protocols. Designed for integration in production plants, analysis laboratories, mechanical workshops, technical areas, and supply depots, this system is aimed at safety managers (RSPP) and plant managers who need to isolate containers from unauthorized access and environmental risks. The product solves the operational problem of the danger of gas accumulation from accidental leaks and the vulnerability of locking systems to tampering, thanks to calibrated ventilation with a fire-stop system and integral protection of the locking rods. Expertly constructed from robust 10/10 mm thick P02 carbon steel sheet, the cabinet is pre-treated with phospho-degreasing in high-temperature tunnels and finished with thermo-baked polyester outdoor painting at 180° in gray RAL 7038, ensuring suitability for current regulations on environmental protection and pollution prevention. The structure is supplied disassembled inside a robust custom-made packaging on a single pallet, accompanied by a assembly kit with an instruction manual for quick and guided assembly.

Technical characteristics

  • Overall external dimensions (LxPxH): 575 x 500 x 1850 mm
  • Net structural weight: 90 kg (KG. 90)
  • Structure construction material: P02 carbon steel sheet with 10/10 mm thickness
  • Preliminary chemical treatment: protective phospho-degreasing in high-temperature tunnels
  • Surface finish and painting: specific polyester for outdoor exposure with baking in a thermal tunnel at 180°
  • Standard coloring: gray RAL 7038
  • Front access configuration: 1 small-sized blind door to promote perimeter air recirculation
  • Mechanical articulation components: robust hinges made of 6 mm thick zamak
  • Internal loading base: reinforced and galvanized steel bottom for correct vertical positioning of cylinders
  • Drum retention and stability systems: internal chains for static fixing of containers completed by 4 chains and carabiner
  • Ventilation and safety devices: 2 ventilation grids positioned on the sides and 1 grid installed on the roof
  • Integrated fire protection in grids: fire-stop safety system calibrated to prevent the passage of external flames
  • Protection against electrostatic discharges: grounding cable integrated into the structure
  • Floor unevenness compensation: height-adjustable support feet at the base
  • Accident prevention geometry: rounded edges to prevent accidental contact injuries
  • Main locking system: ergonomic lock made of plastic and aluminum supplied with double key
  • Door locking mechanism: vertical rod closure equipped with anti-tamper rod cover casing
  • Mandatory visual signaling: safety labeling applied on the front according to the provisions of current regulations
  • Logistics delivery method: cabinet supplied disassembled in robust custom-made packaging positioned on a single pallet
  • Installation support: 1 assembly kit complete with detailed instruction manual contained in each package

* Images purely indicative
