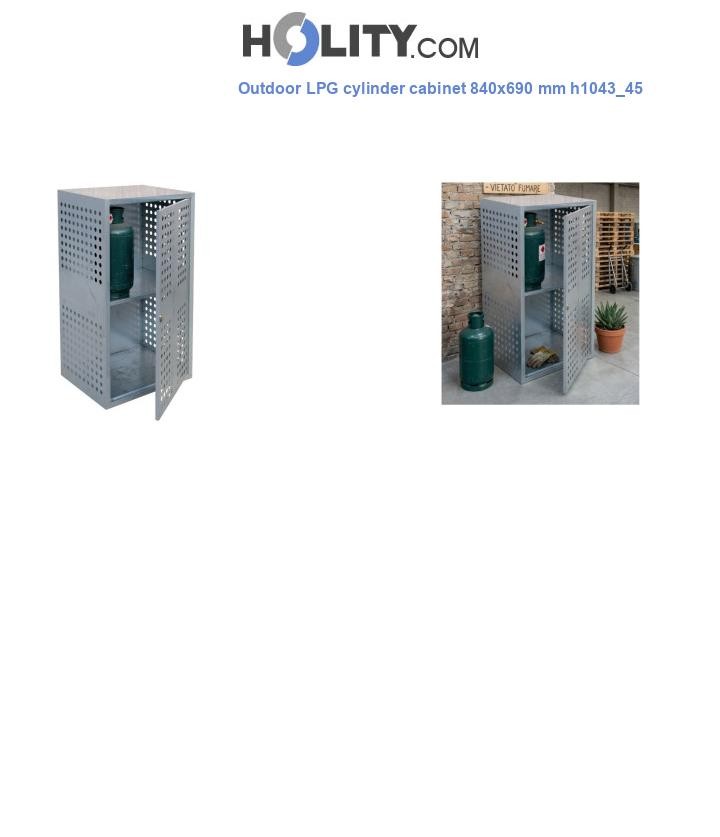

Outdoor LPG cylinder cabinet in hot-dip galvanized steel, mm 840x690x1500h. Flexible storage for 4 cylinders of 33 lt or 10 of 11 lt, with removable shelf and lockable closure.
To know shipping costs, add the product to your cart
Delivery Times
7-10 days
During August, holity will continue its online sales, but delivery times may be longer than those indicated.
The outdoor LPG cylinder cabinet 840x690 mm (model h1043_45) represents a professional and robust storage system, designed specifically for the compliant storage of compressed gas cylinders in open spaces. Developed for companies, workshops, commercial users, laboratories, and civil or industrial plants, this product meets strict safety requirements for the prevention of risks related to combustible gases. The system solves the operational problem of protecting cylinders from atmospheric agents and unauthorized access, while guaranteeing perfect natural ventilation that prevents the stagnation of gas residue. Made entirely of high-resistance hot-dip galvanized steel, the cabinet offers exceptional internal loading flexibility: the presence of a removable internal shelf allows the space to be reconfigured to accommodate single high-volume drums or multiple smaller cylinders positioned on two levels.
Technical specifications
Structural configuration: monobloc ventilated cabinet for outdoor storage
External overall dimensions (LxPxH): 840 x 690 x 1500 mm
Flexible load capacity (option 1): housing for 4 cylinders of 33 liters (4 CYLINDERS OF 33 LT.)
Flexible load capacity (option 2): housing for 10 cylinders of 11 liters (OR 10 OF 11 LT.)
Front access configuration: 1 hinged door
Standard internal equipment: 1 removable shelf for modular level management
Construction material: made entirely of thick hot-dip galvanized steel
Weather protection: structure sealed at the top against rain, snow, and direct solar radiation
Security locking system: protected, sealable, and lockable closure against unauthorized removal or tampering
Prevention of explosive atmosphere risk: structural configuration that avoids the accumulation and stagnation of gas residue
* Images are purely indicative
User benefits
Modular space management with the removable shelf: The inclusion of the internal shelf allows for doubling the supporting surface to neatly store up to 10 small 11 lt cylinders on two levels, or to remove it instantly to make room for 4 large 33 lt cylinders with vertical development.
Safety of departments and risk prevention: The vents and the natural ventilated shape eliminate the danger of gas accumulation in case of micro-leaks from the valves, preventing the formation of flammable or explosive mixtures inside the compartment.
Absolute corrosion resistance (Galvanized Steel): The hot-dip galvanizing treatment protects the steel from rust, humidity, and salt spray, guaranteeing a duration of decades outdoors without the need for painting cycles or maintenance.
Safety and access control: The handle prepared for a padlock or security seal prevents incorrect closing and blocks access to unauthorized personnel, protecting pressure reducers and hoses from theft or vandalism.
Protection of gases from thermal excursions: The structure shields the metal drums from the direct action of summer sun rays and winter weather, maintaining the internal pressure of the cylinders within safe operating parameters.
Optimal height for ergonomics (150 cm): The limited height of 1.5 meters facilitates top visual inspection, eases the connection/disconnection of hoses, and simplifies the positioning of the containers.
Field of application
This outdoor LPG cylinder cabinet finds its optimal placement in the outdoor yards of mechanical workshops, catering areas and professional kitchens (HoReCa sector), manufacturing companies, craft laboratories, and apartment buildings. It is the ideal safety device for setting up gas storage units next to external perimeter walls, ensuring the correct isolation of pressure vessels and compliance with the safety distances required by current fire prevention regulations.
Why Choose It
The model h1043_45 is the right choice when logistical and safety needs require a robust, compact (840x690 mm) and highly versatile loading solution for compressed gases. It stands out on the market compared to fixed containers because the combination of the hot-dip galvanized steel monobloc structure and the standard removable shelf allows for varying the fleet of cylinders (from 33 lt drums to 11 lt ones) according to seasonal consumption needs. Choosing this lockable cabinet means investing in a product compliant with the law that eliminates business risks and guarantees precise geometric dimensions from technical drawings for perfect linear positioning.
FAQ
How is the internal load capacity of the removable shelf configured for 11-liter cylinders?
The internal removable shelf is made of the same structural hot-dip galvanized steel as the frame, calculated to safely support the heavy static load of several full 11-liter cylinders. The shelf supports and lateral attachment points are designed to prevent any bending or slipping of the surface during the insertion or removal of the containers.
Is it mandatory to fix the cabinet to the ground or to the rear wall for outdoor use?
Although the weight of the galvanized steel structure itself ensures excellent stability, occupational safety regulations and fire prevention regulations strongly recommend the secured anchoring of the cabinet to the ground or to a structural wall. This prevents any risk of accidental tipping caused by hard impacts during the handling of the drums or by stress due to exceptional wind gusts on the hinged door.
