• Sharp radiographic acquisitions: The use of the 8 mm HPL laminate panel, completely radiolucent, prevents the formation of shadows or visual artifacts on the plates, ensuring accurate diagnostic reports.
• Zero maintenance costs: The innovative dry-running linear guide system eliminates the need for grease lubrication, avoiding jams caused by hair or fluids and guaranteeing constant reliability over time.
• Calm environment for the animal: The use of optimized polymers for the mobile drawer ensures particularly silent sliding mechanics, limiting sudden noises and reducing stress and agitation of the patient during the examination.
• Deep clinical sanitization: The worktop offers exceptional chemical and biological resistance combined with total impermeability, allowing the use of aggressive disinfectants to maintain maximum sterility between visits.
• Absolute stability under load: The adjustable base allows for compensating floor irregularities in the X-ray room, guaranteeing a rigid and safe surface capable of supporting large animals up to 150 kg in weight.

The natural placement of this X-ray attachment is within veterinary clinics, imaging diagnostic centers, and animal hospitals. It proves to be a fundamental operational support for the daily execution of X-rays and instrumental investigations on small and medium-sized animals. The low profile (18 cm height) and the stability of the frame make it suitable for being positioned stably as a diagnostic module on top of pre-existing stations, operating in total safety even in environments subject to frequent washing or subjected to rigorous hygienic-sanitary protocols thanks to the chemical resistance of its materials.

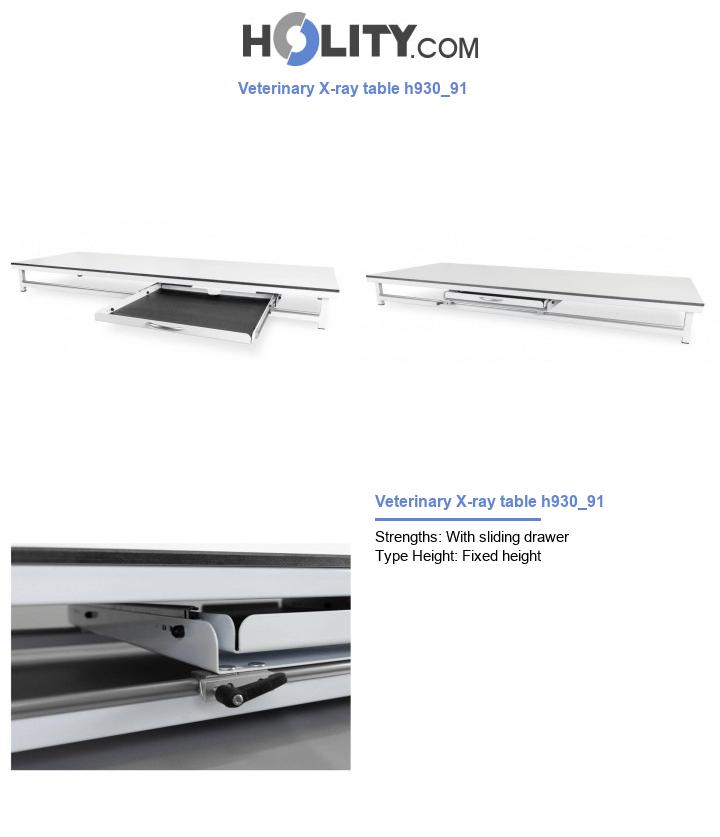

The h930_91 model is the correct technical choice for medical directors who need a robust and unalterable tabletop diagnostic station over time. Unlike tables equipped with drawers with traditional recirculating ball guides, which tend to seize up by accumulating debris, this solution adopts a dry linear sliding system immune to dirt and liquids, ideal in veterinary clinical environments. It is the preferred device when a radiolucent top with high capacity (150 kg) is required, capable of combining rapid detector preparation with certified safety, given by the fire and chemical resistance of the HPL.

What advantages does the dry linear guide system offer compared to classic ball-bearing drawer guides?

Traditional guides based on the rolling principle (such as ball bearings) require continuous lubrication and inevitably tend to accumulate dirt, dust, and hair, jamming over time. The modern linear sliding system integrated into this table uses high-performance polymers that work by dry sliding, without grease. This makes it totally insensitive to water, chemicals, and wear, drastically reducing periodic maintenance costs and times.

Is the table worktop suitable for use and sanitization in environments with high biological risk?

Absolutely yes. The HPL (High Pressure Laminate) top is specifically designed for the severe demands of clinical environments. In addition to being completely waterproof and steam resistant, it possesses very strong chemical resistance that tolerates intensive washing with aggressive hospital disinfectants and detergents. In terms of regulatory safety, the material is classified as flame retardant with Cs1, d0 certification.

How is the stability of the table guaranteed if the supporting surface is irregular?

The base of the painted steel structure is equipped with a system of adjustable mechanical feet. This feature allows the operator to easily compensate for any irregularities in the work surface or the floor below, perfectly leveling the equipment. This ensures a totally horizontal and vibration-free surface, an essential requirement for guaranteeing patient immobility and maximum sharpness of the X-ray plate.
