• More flexible equipment positioning: the ability to move and adjust the support facilitates the adaptation of the radiographic configuration to different examination needs.
• Reduction of maintenance interventions: the dry sliding system eliminates the need to periodically lubricate the guides, simplifying the management of the station.
• Easier cleaning: the surface resistant to moisture and chemical agents facilitates the cleaning operations necessary in veterinary environments.
• Greater practicality in space management: the structure on wheels allows the table to be repositioned based on the organization of the clinic.
• Silent movement: the sliding system with technical polymers limits noise during the adjustment of moving components.
• Organization of diagnostic procedures: the integration of the radiographic support and the mobile drawer allows the main adjustments to be managed within the same workstation.

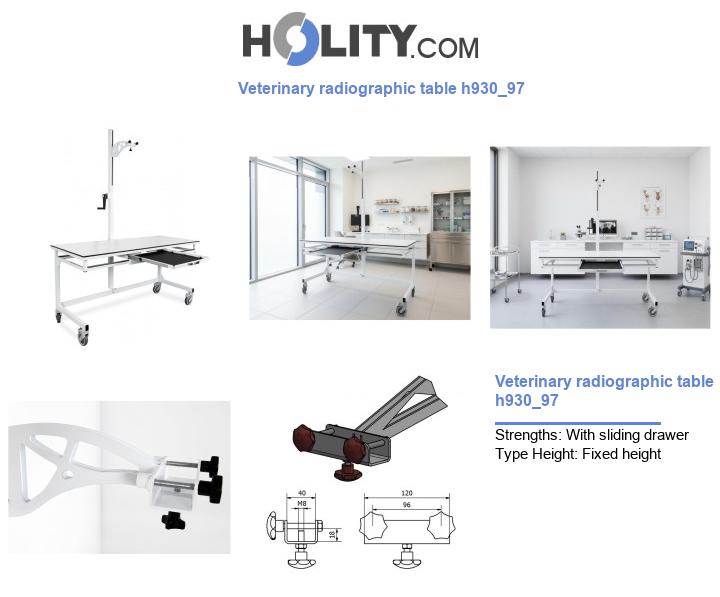

The h930_97 veterinary radiographic table è intended for veterinary surgeries, small animal clinics, veterinary hospitals and facilities performing diagnostic examinations using portable radiographic equipment. It is suitable for environments where it is necessary to organize a station dedicated to the acquisition of radiographic images, maintaining the possibility of changing the positioning of the equipment and moving the table according to operational needs. It can be used in veterinary diagnostic activities that require a radiotransparent surface and a configuration adaptable to different examination procedures, in compliance with the radiation protection measures provided for the facility.

The h930_97 table represents a suitable solution for veterinary facilities that use portable radiographic equipment and require a station with an integrated, adjustable and mobile support. The choice is particularly relevant when the operational priority is to combine the possibility of positioning the equipment with a resistant and easily cleanable examination surface, limiting maintenance interventions on the sliding guides. Before installation, it is necessary to verify the compatibility of the radiographic equipment with the support, compliance with load limits and the adequacy of spaces and radiation protection conditions of the veterinary facility.

What is the h930_97 veterinary radiographic table used for?

The table is designed to perform veterinary radiographic examinations using portable RX equipment. It integrates a radiotransparent top, a mobile drawer and an adjustable support to organize the positioning of the equipment during diagnostic procedures.

What is the difference compared to a normal veterinary examination table?

Unlike a normal examination table, the h930_97 model has a radiotransparent top and a dedicated support for portable radiographic equipment. It is therefore specifically designed for radiographic diagnostic activities.

What radiographic equipment can be installed on the support?

The support is designed for portable radiographic equipment with a maximum weight of 35 kg. Before installation, dimensional and mechanical compatibility of the equipment must be verified.

Is the radiographic support height-adjustable?

Yes. The support can be adjusted from 60 to 115 cm relative to the table surface and can slide longitudinally to adapt the positioning of the equipment to the needs of the examination.

Is the table top transparent to X-rays?

Yes. The top is made of white radiotransparent HPL laminate, 8 mm thick, and is intended for use during veterinary radiographic examinations.

Do the sliding guides require lubrication?

No. The system uses dry linear guides with sliding surfaces in technical polymers and anti-corrosion materials. It does not require routine lubrication and is designed to resist dirt, water, chemicals and mechanical stress.

Can the radiographic table be moved?

Yes. The table is equipped with wheels with brakes that allow it to be moved within the facility and locked in the position of use.

What is the maximum load capacity of the table?

The maximum permissible load of the table is 150 kg. The support for the radiographic equipment, on the other hand, has a maximum load capacity of 35 kg.

Does the table comply with regulations for the use of radiographic equipment?

For the HPL top, fire reaction class C-s1,d0 is declared. Certifications regarding the table as a medical device or compliance of the entire station with radiological regulations are not specified. These aspects must be verified through the manufacturer’s documentation and the provisions applicable to the veterinary facility.
