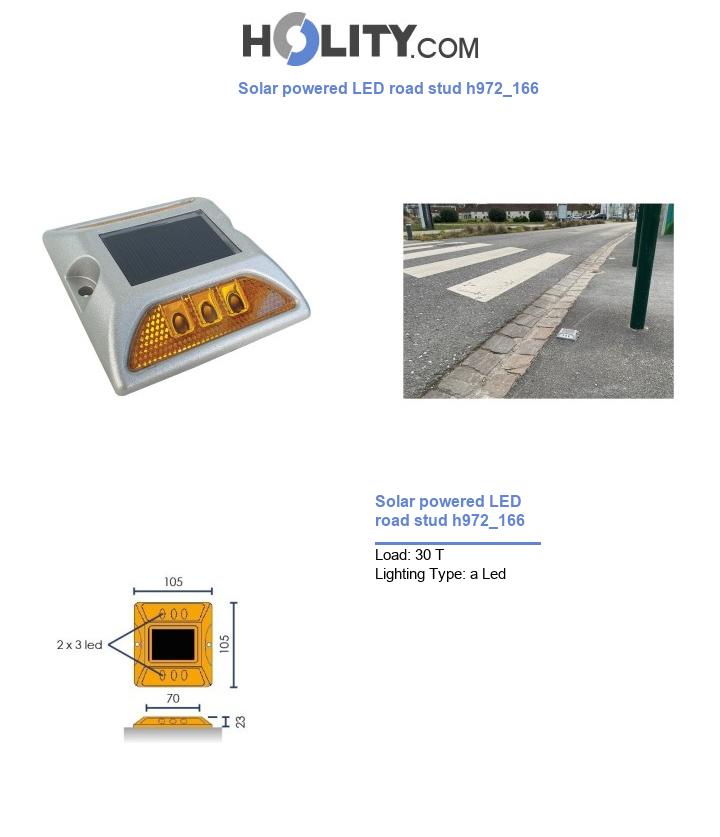

The h972_166 LED road stud is an active signaling device powered by solar energy, designed to improve the safety and visual delimitation of roads, sidewalks and sensitive areas. Made with a robust aluminum body in orange color, the device integrates three flashing LEDs on each side, ensuring high visibility up to 500 meters away. This marker solves the problem of nighttime visibility or poor weather conditions without requiring electrical connections. The structure is designed to withstand heavy mechanical stress, with a maximum capacity of 30 tons, making it suitable for heavy vehicle traffic. The IP68 protection rating ensures total waterproofing and resistance to atmospheric agents.
Technical features
Main material: Aluminum
LED color: Orange
Dimensions: 105 x 105 mm
Height: 23 mm
Net weight: 0.29 kg
Light source: 3 flashing LEDs per side
Visibility: Up to 500 meters
Maximum capacity: 30 tons
Protection rating: IP68 (waterproof)
Mounting hole diameter: 5 mm
Power supply: Integrated solar
* Images are for illustrative purposes only
User benefits
Enhanced active safety: The orange flashing light attracts the driver’s attention much more effectively than a passive reflector, reducing the risks of overrunning.
Energy independence: The integrated solar panel allows autonomous operation at zero cost, eliminating the need for external wiring or power supplies.
High structural resistance: The aluminum body withstands the passage of heavy vehicles up to 30 t, ensuring a long service life even on busy roads.
Total IP68 reliability: Protection against permanent immersion ensures that the device functions correctly even in the presence of flooding or heavy rain.
Simplified installation: The low 23 mm profile and pre-existing mounting holes allow for rapid installation on different types of road surfaces.
Scope of application
This solar indicator is ideal for the delimitation of sidewalks and for signaling routes near schools, parks and pedestrian areas. The orange coloring makes it particularly suitable for highlighting temporary danger zones, traffic dividers or channelization lanes in commercial parking lots. Thanks to its resistance, it is perfect for use in industrial environments and loading/unloading areas, where it is essential to clearly mark the edges of the roadway to avoid damage to infrastructure or maneuvering vehicles.
Why Choose It
Purchasing the h972_166 model is the correct choice when immediate luminous signaling is required without infrastructure installation costs. It is preferable to traditional aluminum reflectors in contexts where ambient light is low and you want to actively prevent accidents through luminous signaling visible from a distance. It is the ideal solution for those looking for a robust and waterproof product, capable of integrating standard road safety with an active orange signal with high perceptual frequency.
FAQ
How should this indicator be fixed?
The indicator is equipped with 5 mm holes for anchoring via screws to the pavement. It is advisable to thoroughly clean the surface before installation and, for superior stability, it is possible to integrate the mechanical fixing with an epoxy adhesive specific for road markings (not included).
What is the advantage of the IP68 rating for a road marker?
The IP68 rating certifies that the device is totally protected from dust and can withstand prolonged immersion in water. This ensures that the solar panel and LEDs continue to function even if the device is submerged by accumulations of rainwater or mud on the roadway.
Is the indicator available in other light colors?
Yes, this model is part of a range of solar signage that includes variants with LEDs of different colors to adapt to specific signaling needs (such as blue for reserved spaces or white for lane delimitation).
