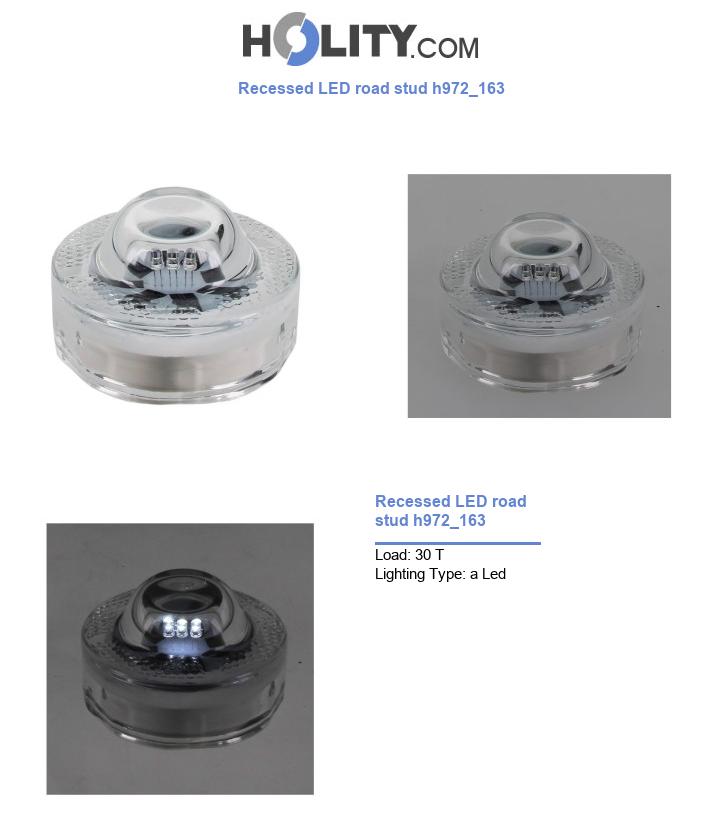

The h972_163 LED road stud is a recessed active signaling device, designed for the delimitation and safety of public and private outdoor spaces. Made with a high-resistance tempered glass body, this solar marker solves the problem of night visibility in areas without electrical wiring, activating automatically at dusk. The three vertical white LED technology allows light perception up to 800 meters, offering road users a clear and constant visual reference. Designed to withstand extreme mechanical stress, the device supports the transit of vehicles up to 30 tons, making it a definitive solution for managing vehicle flows in parking lots, residential roads, and company driveways.
Technical specifications
Main material: Tempered glass
Diameter: 101 mm
Height: 38 mm (body) + 25 mm (base)
Net weight: 0.66 kg
Light source: 3 vertical projection white LEDs
Visibility: Up to 800 meters in darkness
Power supply: Integrated solar panel (2V/150mA)
Autonomy: Up to 100 hours with full charge
Operating mode: Steady or flashing (selectable via magnet)
Load resistance: Suitable for vehicles up to 30 tons
* Images for illustrative purposes only
User benefits
Operational continuity: The wide 100-hour autonomy ensures safety signaling even during prolonged periods of low solar exposure.
Simplified maintenance: Switching between steady and flashing modes via magnet allows the device to be reconfigured without having to disassemble or open it.
Structural resistance: The use of tempered glass prevents clouding and resists crushing by heavy vehicles up to 30 t, reducing replacement costs.
Zero-cost installation: The integrated solar power supply eliminates the need for excavation for cable routing and connection to the electrical grid.
Preventive safety: Visibility up to 800 meters drastically increases the reaction time of drivers near obstacles or curves.
Scope of application
The h972_163 LED insert finds its ideal application in the delimitation of driving lanes, roundabouts and traffic islands where the passive visibility of reflectors is not sufficient. It is particularly suitable for securing private driveways, entrances to commercial parking lots and pedestrian paths within industrial complexes. Its robustness allows installation in areas subject to heavy traffic, ensuring safe orientation even in rain or thick fog, typical contexts for logistics hubs and loading/unloading areas.
Why Choose It
This road stud is the right choice when autonomous active signage is required with minimal structural impact on existing flooring. It is preferable to models with an external rechargeable battery thanks to its integrated photovoltaic system which makes it independent for its entire life cycle. It is the ideal product for those who manage infrastructures where the mechanical resistance of glass is a fundamental prerequisite to avoid damage from frequent overrun, while guaranteeing a professional and transparent aesthetic result.
FAQ
What is the advantage of tempered glass compared to aluminum or plastic models?
Tempered glass offers superior resistance to surface abrasion caused by road debris and is not subject to oxidation. It also maintains constant transparency over time, ensuring that the light output of the LEDs does not decrease due to surface clouding of the material.
How is the light mode changed after recessed installation?
The mode change occurs quickly using an external magnet. This allows the visual signal to be varied from steady to flashing based on operational or seasonal needs without having to mechanically intervene on the already positioned road stud.
Does the h972_163 road stud require specific maintenance for the solar panel?
As it is a recessed glass device, the surface tends to stay clean with the normal flow of rainwater. Periodic checking is recommended to remove any accumulation of mud or debris that could reduce the efficiency of the integrated solar panel.
