Manhole cover for public spaces, in ductile iron. Clear opening: 300 x 300 mm. Class: B125. External dimensions: 400 x 400 mm.
To know shipping costs, add the product to your cart
Delivery Times 7-10 days
During August, holity will continue its online sales, but delivery times may be longer than those indicated.
Mon-Fri 9-13 / 14:30-18:30

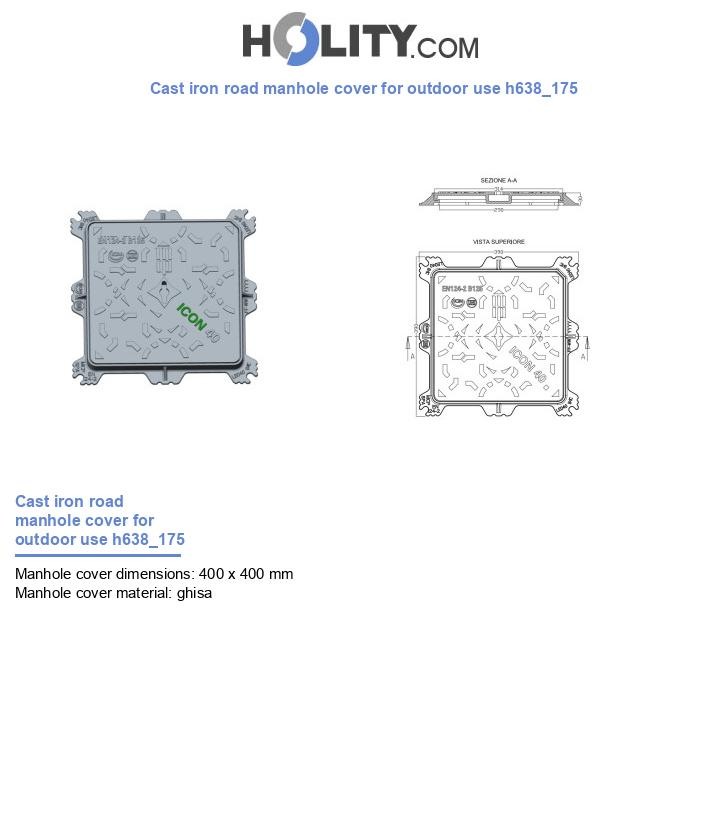

The road manhole cover in cast iron H638_175 is designed to ensure resistance, durability and safety in urban and road applications. Made of ductile iron GJS-500-7, compliant with the EN 1563 standard, it belongs to load class B125, making it suitable for light traffic areas such as sidewalks, private parking lots and pedestrian driveways.
The square frame features a continuous external perimeter flange on all four sides, shaped and chamfered at the corners to ensure a wide supporting surface and better anchoring to the foundation. It is also equipped with holes for fastening with anchor bolts, reinforcing ribs to increase strength and a “U”-shaped internal seat which, when filled with sand or equivalent materials, ensures odor tightness. The chamfered internal corner facilitates the unique insertion of the cover, preventing incorrect positioning.
The square cover is equipped with closed-bottom slots for the use of lifting keys, a space dedicated to the possible insertion of inscriptions or logos (e.g. contracting authority), a chamfered corner for precise fitting and uniformly distributed anti-slip reliefs, which guarantee pedestrian safety and optimal water drainage.
Manufactured by an ISO 9001:2015 certified company, the H638_175 manhole cover offers high performance, reliability and compliance with quality standards.
Trust the strength of ductile iron for your infrastructure: purchase the H638_175 manhole cover or request a quote for multiple supplies.
Technical characteristics:
Material: Ductile iron GJS-500-7
Reference standard: EN 1563
Load class: B125
External dimensions: 400 x 400 mm
Clear opening: 300 x 300 mm
Height: 30 mm
Weight: 8 kg
Frame: Square with perimeter flange, chamfered corners, reinforcing ribs, “U”-shaped internal seat
Cover: Square with closed slots, space for inscriptions/logos, anti-slip reliefs
Company certification: ISO 9001:2015
Benefits for the user:
FAQ:
Where can it be installed?
In sidewalks, private parking lots and pedestrian driveways.
Is it weather resistant?
Yes, ductile iron offers excellent resistance and durability over time.
Can I customize it with a logo?
Yes, the space on the cover is designed for inscriptions and logos.
How is the cover lifted?
Using the special closed-bottom slots for lifting keys.
Does it guarantee water drainage?
Yes, the anti-slip reliefs allow for complete water runoff.
Mini purchase guide:
To choose a suitable manhole cover it is essential to evaluate load class, material and functionality.
Class B125 is indicated for areas with light traffic, while ductile iron GJS-500-7 guarantees mechanical strength and long life.
Additional features such as the U-shaped seat for tightness, the anti-slip reliefs and the possibility of customizing the cover increase the value of the product in urban and public contexts.
Road manhole cover 400x400, cast iron manhole cover B125, square driveway manhole cover, manhole cover for sidewalks and parking lots, ductile iron manhole cover EN 1563, manhole cover with frame and cover.
*Images purely indicative.
| Material manhole covers | ghisa |
|---|---|
| manhole_dimensions | 400 x 400 mm |
