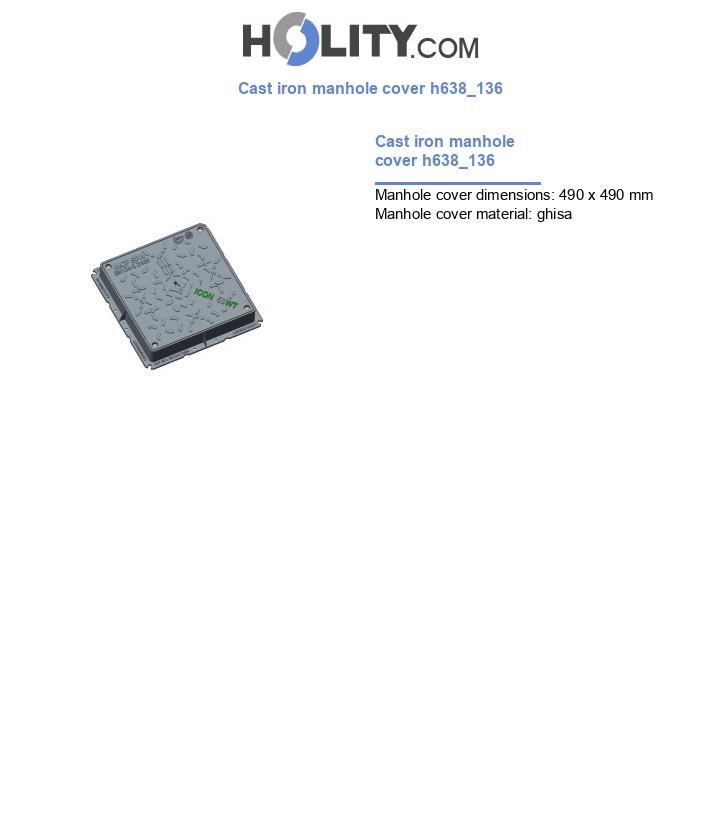

The cast iron manhole cover h638_136 is a professional crowning device designed to ensure maximum safety and isolation in road infrastructures. Made of spheroidal graphite cast iron with a breaking load exceeding 400 kN, the product complies with load class D400, making it suitable for heavy traffic. The modular square structure is equipped with a frame featuring a continuous perimeter flange and slots for anchoring via anchor bolts. The distinctive feature is the internal "U"-shaped seat which, coupled with the cover and filled with sand or inert materials, ensures perfect odor tightness. The cover is also secured by a bolted fastening system, ideal for preventing tampering or accidental opening due to strong dynamic stresses.
Technical characteristics
Material: ISO 9001:2015 certified spheroidal graphite cast iron
Surface: Uniformly distributed non-slip patterns and space for logos
Construction details: Beveled corners for unique insertion and closed-bottom slots
* Image for illustrative purposes only
User benefits
Stability and Silence: The maximum interlocking depth and bolted fastening cancel cover rocking, eliminating metallic noises when vehicles pass.
Environmental Protection: The "U" seat ensures odor tightness, making it the perfect choice for sewer networks located near residential areas or pedestrian zones.
High Resistance (D400): Certified to withstand 40 tons, it is ideal for installation in road carriage-ways, industrial parking lots, and heavy vehicle transit areas.
Easy Maintenance: The closed-bottom slots prevent debris accumulation, always allowing for easy insertion of lifting keys.
Infallible Anchoring: The shaped frame with rounded corners and holes for anchor bolts ensures exceptional grip on the underlying structure, preventing cracking of the road surface.
Field of application
The h638_136 model is suitable for covering technological manholes, sewer networks, and utility systems located in urban road carriage-ways, heavy vehicle parking lots, and docks. Thanks to its compact dimensions of 49x49 cm, it is the optimal solution for medium-sized inspection chambers where airtightness and superior mechanical safety guaranteed by bolted locking are required.
Why Choose It
Choosing this manhole cover means investing in safety and hygiene. The bolted fastening represents a fundamental upgrade to avoid theft or cover displacement caused by the "suction" effect of fast vehicles. The certified construction quality ISO 9001 and the versatility of the anti-odor system make it a reliable product for public administrations and companies aiming to drastically reduce post-installation maintenance costs.
FAQ
What is meant by bolted closure?
Unlike gravity models, this cover is fixed to the frame using bolts. This system ensures that the manhole cover does not lift accidentally and acts as a deterrent against opening by unauthorized personnel.
How does the sand tightness system work?
The frame features an internal "U"-shaped seat. By filling this groove with fine sand or similar materials before positioning the cover, a seal is created that prevents gases and bad odors from rising to the surface from the shaft.
Is class D400 sufficient for high-traffic roads?
Certainly. Class D400 is specifically regulated by UNI EN 124 for use on carriage-ways of main roads, parking areas, and docks accessible to all types of road vehicles (up to 40 tons).
