How does the h1009_14 lane with Ø 120 mm disks differ from training-only models with Ø 85 mm disks?

Unlike reduced-diameter training lanes (Ø 85 mm), the h1009_14 lane uses oversized Ø 120 mm disks (15 per meter) manufactured in compliance with FINA facility rules, designed to maximize turbulence damping during competitions and official competitive events.

What compliance standards and chemical resistance specifications does the h1009_14 divider meet?

The divider is produced in compliance with FINA facility rules and is assembled with a Ø 6 mm plastic-coated AISI316 stainless steel cable, integrating top-quality polypropylene (PP) disks with additives against chemical and atmospheric agents and high-density polyethylene (PE-HD) floats.

Which tensioning accessories or color variants can be combined with the 20-meter h1009_14 lane?

In addition to the standard colors blue, red, and white, it is possible to request custom colors upon quotation and complete the divider with the optional supply of stainless steel springs and tensioners.

20 m floating pool divider h1009_14

Name: 20 m floating pool divider h1009_14
SKU: h1009_14
Price: 865.8 EUR
Availability: InStock

€721.50 VAT excl.

€865.80 VAT incl.

In stock

SKU

h1009_14

20 m floating pool divider h1009_14 for FINA pools with Ø120 mm PP disks and Ø 6 mm AISI316 stainless steel cable. For competitions and training.

Qty

Technical sheet

ASK FOR AN OFFER

Go to Floating pool lanes

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

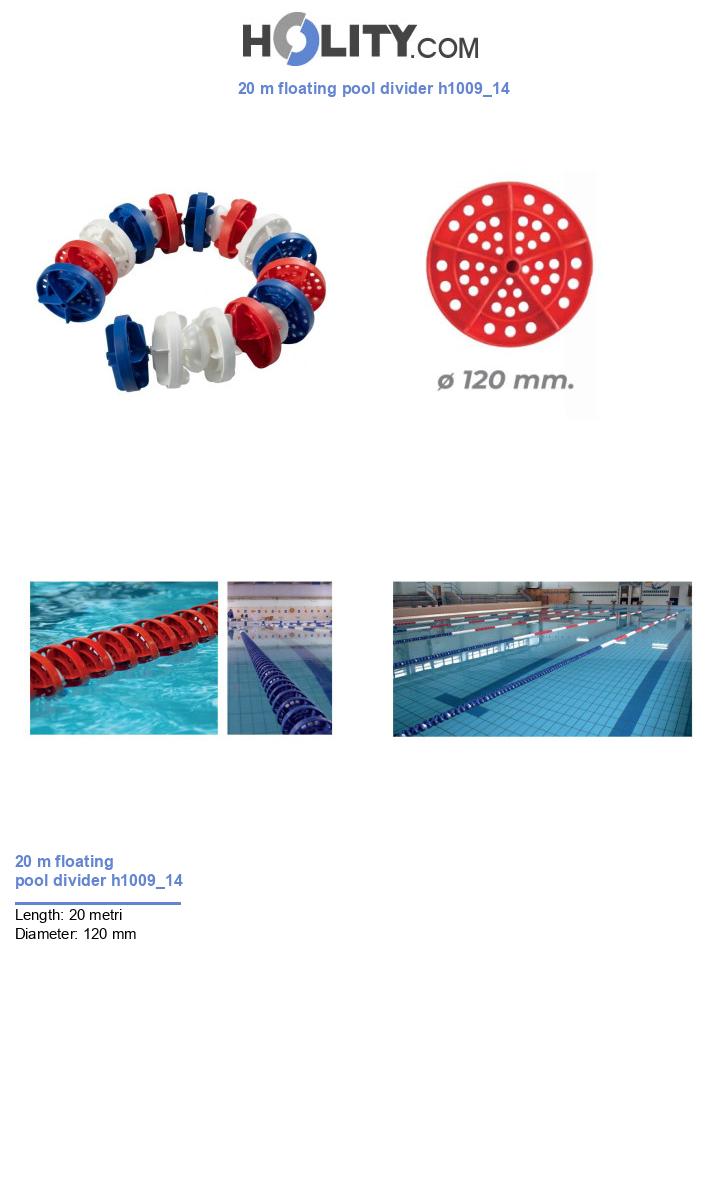

The Floating 20 m pool divider h1009_14 is a technical element for 20-meter swimming facilities, designed and manufactured in compliance with FINA facility rules for use in both competitions and training. This device addresses the operational need to dampen wave motion and contain turbulence in the pool generated by swimming, ensuring constant hydrodynamics and optimal competition or sports practice conditions. Aimed at aquatic center managers, sports facility managers, and competition organizing committees, the divider consists of 120 mm diameter disks (15 per meter) in top-quality polypropylene (PP) with additives to ensure high resistance to chemical and atmospheric agents. The structure of the 20 m line is assembled on a Ø 6 mm plastic-coated AISI316 stainless steel cable and is integrated with high-density polyethylene PE-HD floating balls (6 per meter). The article is supplied in standard colors blue, red, and white, with the possibility of requesting other colors upon quotation.

Technical features

Type and compliance: Floating divider suitable for competitions and training, manufactured in compliance with FINA facility rules
Lane length: 20 m
Disk material: Top-quality polypropylene (PP) with additives for high resistance to chemical and atmospheric agents
Disk dimensions and density: Diameter Ø 120 mm (15 disks per meter)
Disk geometry: Designed to reduce turbulence
Assembly support: Ø 6 mm plastic-coated AISI316 stainless steel cable
Floats: PE-HD floating balls (6 per meter)
Standard colors: Blue, red, white
Optional colors: Other colors available on request and upon quotation
Stainless steel springs and tensioners (on request and upon quotation)

* Images are purely indicative

User Benefits

Scope of Application

Why Choose It

FAQ

More Information
Length	20 metri
Diameter	120 mm

20 m floating pool divider h1009_14
