• Total and waste-free fluid dispensing: The calibrated height difference of the frame (from 450 mm to 380 mm) keeps the 220 l drum perfectly tilted forward, naturally channeling all the liquid towards the front tap.
• Full compliance with European safety regulations: The ISO 3864 and EEC 77/576 (L 229) compliant painting ensures the use of a coded safety signaling color, facilitating corporate inspection checks.
• Total resistance to aggressive substances: Chemical treatment with oil-proof and acid-proof polyurethane resins prevents any drips of lubricants or chemical agents from corroding the metal or damaging the structure.
• Outdoor positioning flexibility: Thanks to the double protective layer and the outdoor polyester finish, the support stands stably against rain, humidity, and temperature fluctuations without peeling or rusting in yards.
• Elimination of crushing and rolling risks: The shaped tubular metal geometry rigidly locks the profile of the drum horizontally, zeroing out dangerous oscillatory movements for the operator’s hands.
• Compact and optimized floor footprint: With a footprint of only 800x600 mm, the frame fits easily over perimeter collection basins or on workbenches, maximizing useful space in warehouses.

This inclined support frame finds its ideal application within industrial transfer islands, lubricant storage warehouses, mechanical workshops, and chemical or pharmaceutical production departments. It is essential equipment in all contexts where it is necessary to dispense fluids from heavy 220-liter drums frequently and in a controlled manner. Thanks to the outdoor painting compliant with EEC directives and the acid-proof protection, it is perfect for being placed in external perimeter storage areas exposed to atmospheric agents, preferably above suitable containment basins for environmental prevention.

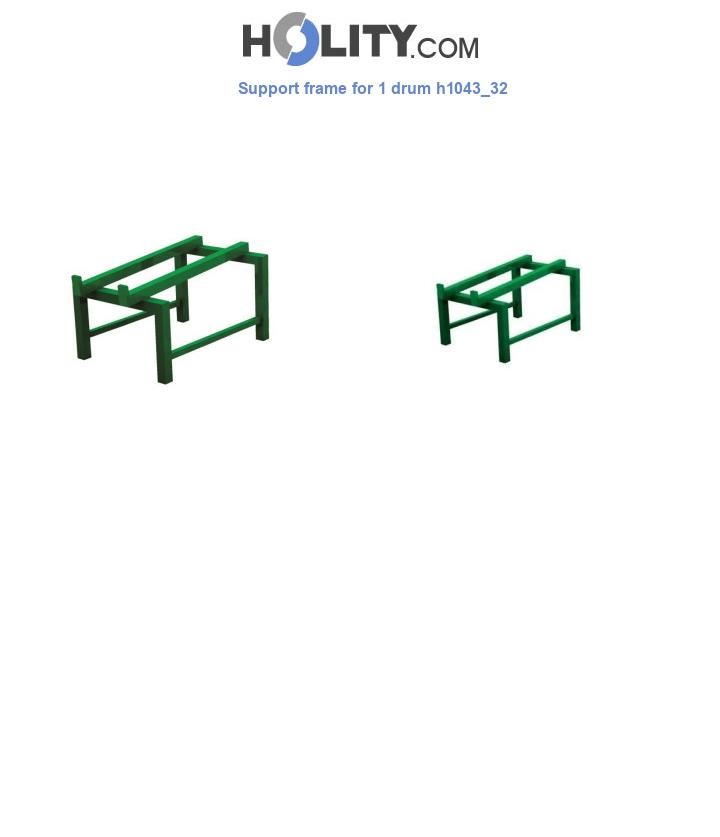

The h1043_32 model is the right choice when workplace safety and transfer efficiency require a permanent heavy tubular metal structure with integrated geometric inclination (450/380 mm). It represents the ideal solution compared to improvised or wooden supports as it offers certified support stability for 220 l drums and industrial surface protection based on oil-proof and acid-proof polyurethane resins. Choosing this frame means investing in a product compliant with the law (ISO 3864 and EEC 77/576) that eliminates the risks of handling injuries and reduces product waste to zero thanks to the perfect horizontal emptying of the container.

Why does the frame have a differentiated height of 450 mm at the back and 380 mm at the front?

This millimeter difference is designed to guarantee a constant and progressive inclination of the 220-liter drum in a horizontal position. By keeping the back of the drum higher than the front where the valve or tap is located, it ensures that the liquid flows completely towards the exit point, reducing unused residues to zero and facilitating dispensing.

What do the ISO 3864 and EEC 77/576 standards mentioned in the frame description provide for?

These regulations govern mandatory safety colors and signs in workplaces. The frame’s compliance with these directives ensures that the painting is carried out with a high-visibility chromatic shade coded by law, which visually signals to operators and forklift drivers the presence of a heavy or dangerous load in transit, reducing the risks of accidental impact.

Does the polyurethane resin treatment resist prolonged contact with concentrated acids?

The protective treatment is formulated with oil-proof and acid-proof properties to resist normal spills, drips, and vapors of industrial liquids commonly stored in 220-liter drums. In case of massive spills of highly concentrated industrial acids or pure corrosive agents, it is recommended to rinse the surface of the frame to preserve the integrity of the polyester protective coating in the long term.
