• Intelligent Climate Control Against Frost: When the temperature drops below the critical threshold, the internal thermal resistor activates automatically (range 5°C - 20°C) to prevent the freezing of the pads’ gel and the premature deterioration of the AED battery.
• Automatic Ventilation Against Overheating: In the summer months or under direct sunlight, the fan operates independently when 40°C is exceeded, expelling hot air and preventing irreversible damage to the defibrillator’s electronic circuits.
• Diagnostic Visual Signaling (Red LEDs): The system constantly monitors the internal climate status; if the temperature leaves the safety zone (below 5°C or above 40°C), the red LEDs start flashing, immediately alerting technicians that the environment is out of range.
• Twilight and Acoustic Surveillance: The twilight sensor activates the internal LED lighting for immediate location in the dark, while the integrated acoustic alarm discourages vandalism and signals the start of rescue operations when the door is opened.
• Life-Saving Emergency Access (Anti-Padlock): The small-hole slot prevents the application of rigid padlocks (the keys to which could be lost). The door is locked only by easy-break safety seals, ready to be snapped instantaneously in case of cardiac arrest.

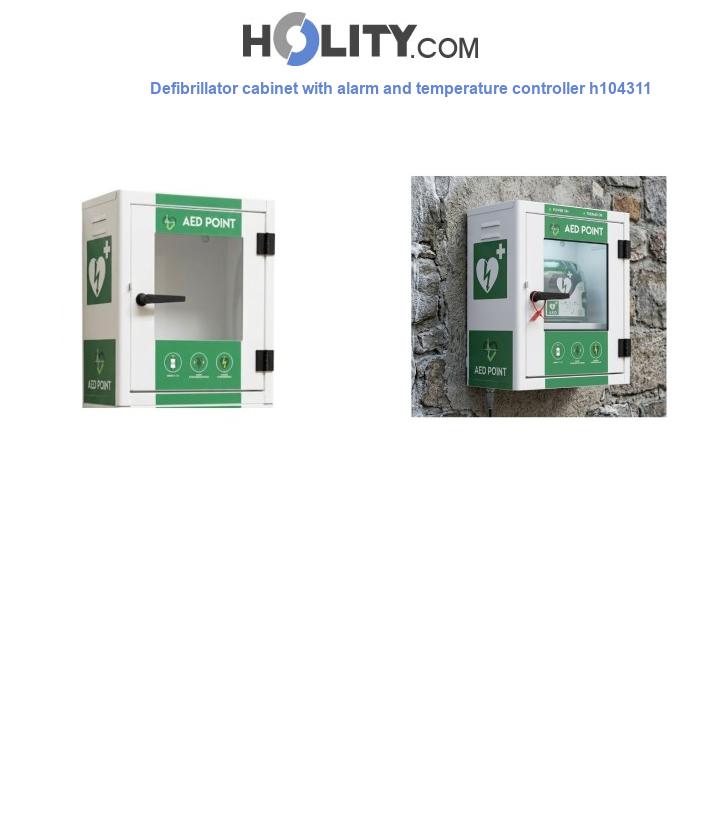

The h104311 technological cabinet is the solution of choice for establishing heart-protected first aid points in areas exposed to harsh or hot climates, such as public squares, urban centers, municipal parks, outdoor sports facilities, gas stations, industrial and construction areas, ports, and roadsides. It is ideal wherever it is necessary to place a defibrillator outdoors while maintaining guarantees on the perfect functioning state of the medical device.

Choosing this model means opting for an **active and climatized aerospace-level enclosure**, essential for protecting the effectiveness of an invaluable life-saving medical device. The electro-galvanized steel body combined with the rubber gasket guarantees perfect insulation from atmospheric agents, while the 24 Volt low-voltage system ensures maximum compliance with electrical safety standards in public and industrial places. It is the correct investment for public administrations and companies that want to eliminate the risks of AED malfunction due to environmental thermal shocks.

Why is it essential to install a temperature-controlled cabinet for outdoors?

Defibrillators (AED) contain lithium batteries and adhesive pads provided with a liquid conductive gel. Temperatures below 0°C freeze the gel making it unusable, while temperatures above 40°C rapidly deteriorate the battery charge. The temperature-controlled cabinet actively solves this problem by heating or ventilating the compartment according to need.

What do the flashing red LEDs inside the cabinet indicate?

The flashing of the red LEDs is a visual indicator of a climatic anomaly. It activates automatically when the internal temperature drops below 5°C or exceeds 40°C. This allows maintenance or security personnel to understand at a glance, without opening the cabinet, that the internal environmental conditions are jeopardizing the integrity of the defibrillator.

What kind of power supply does it require and how are the cables connected?

The entire electronic componentry (control unit, heater, fan, alarm, and twilight lights) requires a safe low-voltage power supply of 24 Volts. The cabinet is provided with a removable back cover specifically designed to pass and neatly hide the electrical wiring inside the wall or the support totem.

Why does the locking system prohibit the use of rigid padlocks?

In a cardiac arrest situation, time is the most critical factor. The handle hole is calibrated to accommodate only easy-break disposable safety seals (in plastic or light metal). This prevents the cabinet from being erroneously locked with a key, a circumstance that would make it impossible for rescuers to promptly retrieve the AED.
