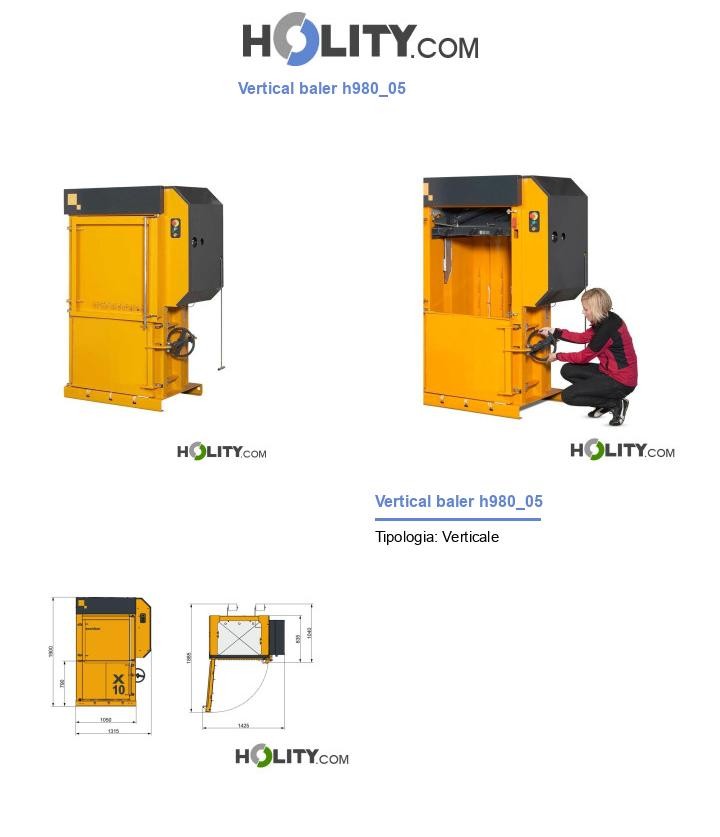

The vertical baler h980_05 is designed to efficiently compact recyclable materials such as cardboard, flexible plastic, PET bottles, cans and textiles. With a pressing force of 10 tons, it ensures a significant volume reduction, improving waste management and optimizing storage space.

This machine is ideal for companies, supermarkets, warehouses and industries that wish to reduce waste disposal costs and improve environmental sustainability. Thanks to its reduced height and compact structure (<1.5 m² footprint), it can also be placed in confined spaces.

The bale ejection is fully automated, ensuring maximum safety and ease of use. The front tying system allows for quick replacement of the strapping, while the simple and intuitive control panel makes the machine easy to use even for inexperienced operators.

The lower door opening occurs in total safety, thanks to a threaded pin that prevents accidental openings. The low noise level (59-60 dB) makes it ideal even for indoor work environments.

Improve your waste management with the vertical baler h980_05! Buy now or request a personalized quote to discover how to optimize your business processes.

Technical characteristics:

• Pressing force: 10 tons
• Baler dimensions: W 131.5 x D 104 x H 190 cm
• Loading aperture dimensions: W 800 x D 610 mm
• Loading aperture height: 835 mm
• Compaction chamber height: 1040 mm
• Cylinder stroke: 845 mm
• Compacted bale dimensions: W 800 x D 600 x H 600 mm
• Cardboard bale weight: up to 100 kg
• Plastic bale weight: up to 130 kg
• Total machine weight: 665 kg
• Compaction cycle duration: 18 seconds
• Noise level: 59-60 dB
• Motor: 4 kW
• Power supply: 3x400V 50Hz 16A
• Number of ties: 3
• Tying type: Twine
• Full-load indicator: Yes
• Bale ejection: Automatic
• Compactable materials: Cardboard, flexible plastic, paper, PET bottles, aluminum cans, tins, rigid plastic, textiles, EPS (polystyrene)

User benefits:

• High efficiency: 10-ton pressing force for maximum waste volume reduction.
• Reduced footprint: perfect for installation in limited spaces (<1.5 m²).
• Safe and easy to use: automatic ejection reduces the operator’s physical effort.
• Storage optimization: compacted bales have standard dimensions, facilitating transport and logistics management.
• Simple maintenance: designed for intensive use with minimal service interventions.
• Complies with regulations: conforms to European standard EN16500, ensuring maximum safety at work.
• Low acoustic impact: low noise level (59-60 dB), ideal for closed environments.
• Included equipment: oil, 3 test rolls, cable and plug, use and maintenance manual and declaration of conformity.

FAQ:

1. What materials can this baler compact?
   It is ideal for cardboard, flexible plastic, paper, PET bottles, cans, rigid plastic, textiles and polystyrene (EPS).

2. What is the maximum weight of a compacted bale?
   Bales can weigh up to 100 kg for cardboard and 130 kg for plastic.

3. How is the bale ejected?
   The machine is equipped with automatic ejection for faster and safer operation.

4. What type of power supply does it require?
   It works with 3x400V 50Hz 16A three-phase power supply, suitable for industrial contexts.

5. How much space does the baler take up?
   It has a reduced footprint (<1.5 m²), so it can also be installed in environments with limited space.
