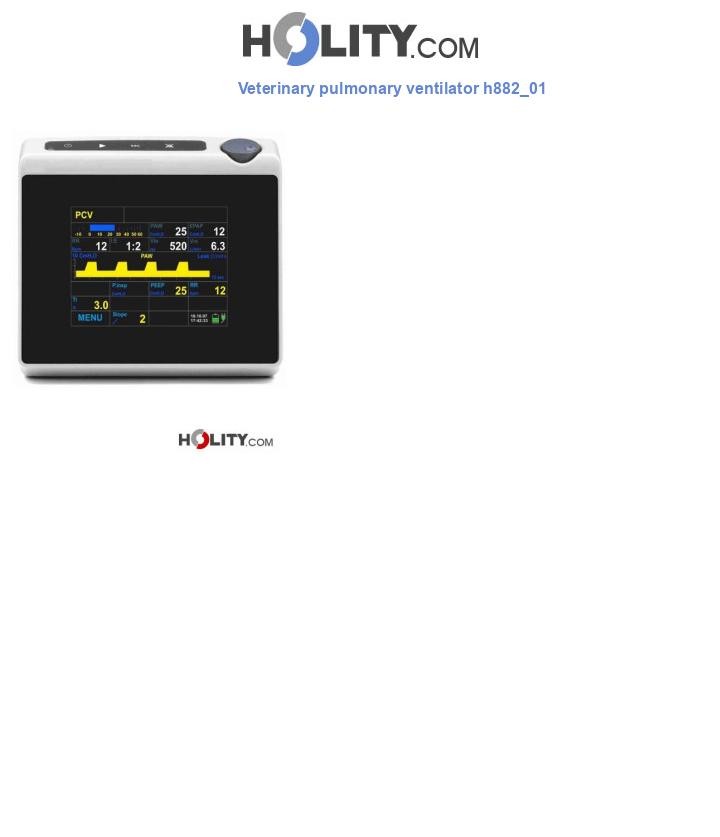

The veterinary pulmonary ventilator is a single-tube pressure-metric device, designed to offer advanced performance and optimal management of respiratory ventilation. This lightweight and compact ventilator is equipped with a turbine propulsion system that ensures smooth and reliable operation. Its large 10.4-inch color touch screen display allows for intuitive interaction and precise setting management, thanks to on-screen controls. The ventilator offers a wide range of non-invasive ventilation (NIV) modes, ideal for the respiratory treatment of animals. Its operating principle is based on a pressure cycle with microprocessor-controlled flow, ensuring accurate and personalized control of ventilation, further improving the quality of respiratory care for veterinary patients.
Technical features:
Turbine pulmonary ventilator
Dimensions: W. 290 x D. 215 x H. 245 mm
Weight: 5.5 kg
Electrical power supply 100 - 240Vac / 50 - 60Hz
Max power consumption 60 VA
External low voltage supply 12 Vdc / 7 A
Internal battery: 1 x 12Vdc - 4.2 Ah Ni-Mh battery
External electrical connections: RJ connector for oxygen cell connection
Patient connections: 22 mm Male / 15 mm Female conical fittings (according to EN ISO 5356- 1:2015)
Pneumatic supply (O2): Low pressure: max 15 l/min
Max. required flow (O2): ≥ 15 l/min
IP protection degree: IP21
Noise level: < 30 dB
Functional features:
Operation: pressure cycled; microprocessor-controlled flow; spontaneous breathing with integrated valve
Automatic atmospheric pressure compensation on measured pressure: present
Automatic compensation of mechanical dead space and patient circuit
Automatic leak compensation: Max. 60 l/min
Ventilation modes: SIMV, PCV, APCV, PSV, PSV(Tv)
Frequency: From 5 to 50 bpm
Minimum inspiratory time (Ti): 0.4sec
Maximum inspiratory time (Ti): 3 sec
SIMV ventilation frequency: From 1 to 50 bpm
Tidal volume (Vt): From 50 to 2500 ml
Inspiratory pressure limit ( Pinsp - IPAP ): From 2 to 80 cmH2O (depending on the set low and high pressure alarm value)
Inspiratory flow acceleration: Only in pressure-metric operating modes: 1, 2, 3, 4 (acceleration ramp slope) - (4 maximum acceleration)
PEEP - EPAP: From OFF, 2 to 30 cmH2O (microprocessor-controlled EV adjustment)
O2 concentration: O2-Air mixture enrichment via low-pressure O2 input
Inspiratory flow (FLOW) 170 l/min
PS (support pressure): From 2 to 60 cmH2O (PSV, SIMV)
CPAP/PSV Pressure: from 3 to 50 cmH2O
Single-tube patient circuit (EXP valve on circuit), 160cm
Monitor with 10.4” TFT Touch Screen display
On-screen controls (Side keyboard for quick access to functions and encoder knob for selection, setting, and confirmation of physiological respiratory parameters; selection and direct activation of functions)
MENU function (SETUP settings; alarms; trends (parameter history); events; patient data; delete patient data; default parameters)
Views and settings (Operating Mode setting; Display of alarm signals and messages; Setting and monitoring of physiological respiratory parameters; PAW graph display; MENU function for setting operating parameters; Activation of specific functions; Display of operating mode, clock function, date and time; Display of software version)
Trends: Up to 72 hours of all measured parameters
Events: Up to 100 events can be recorded, including alarms
Patient data: Patient data can be set and deleted
Default parameters: Default parameters can be restored
SET function (settable physiological respiratory parameters): Slope, RR (bpm), RRsimv (bpm), PEEP (cmH2O), Pinsp (cmH2O), IPAP (cmH2O), EPAP (H2O), PMax - Pmin - PS (cmH2O), Ti (s), Ti Max (s), Tr. E (%), Tr. I (L/min), Vti (ml), BACK-UP parameters
