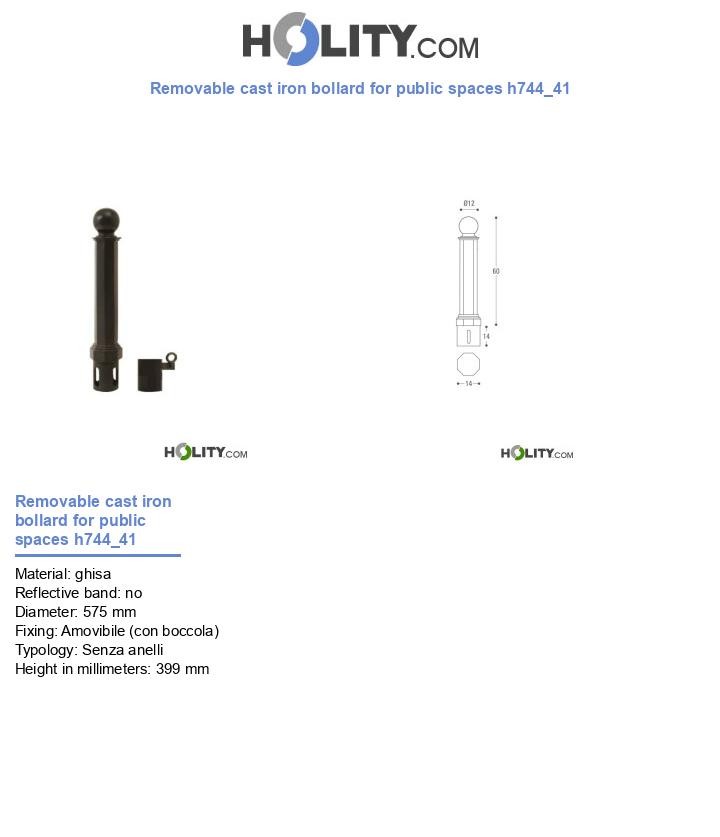

The bollard H744_41 represents an advanced technical solution for the modular management of public and private spaces. Made of cast iron EN GJL 200, complying with the UNI EN 1561 standard, this urban furniture element is designed to effectively resist impacts and the degrading action of atmospheric agents, ensuring a prolonged service life in outdoor contexts.
The structure stands out for its column design with an octagonal base and ornamental grooves, culminating in a spherical capital that provides a refined aesthetic, suitable for both historic centers and modern architectural complexes. The added value of this model lies in its removable nature: thanks to an internal plug-in core and a hot-dip galvanized iron sleeve to be buried, the bollard can be removed quickly to allow the passage of emergency vehicles, loading/unloading operations or for the management of temporary events.
Technical features
Material: EN GJL 200 cast iron (UNI EN 1561)
Shape: Octagonal column profile with upper spherical capital
Aesthetic details: Ornamental grooves in the lower section of the base
Fixing system: Removable with internal plug-in core
Ground component: Hot-dip galvanized iron sleeve included
Installation depth: 14 cm at ground level "0" for housing the sleeve
Operational flexibility: the removable system allows the passage to be cleared in moments without the need for structural interventions.
High durability: EN GJL 200 cast iron guarantees very high resistance to corrosion, drastically reducing maintenance costs over time.
Structural safety: the hot-dip galvanized iron sleeve ensures optimal stability of the bollard and prevents deterioration of the plug-in seat.
Architectural integration: the classic design with ornamental finishes fits perfectly with the redevelopment of villages and monumental areas.
Optimized footprint: the 60 cm height provides a clear visual barrier without excessively obstructing the urban field of vision.
Scope of application
The H744_41 bollard finds its ideal location in the perimeter of limited traffic zones (ZTL) and pedestrian areas where access must be regulated based on specific times or needs. It is particularly suitable for institutional building entrances, controlled company parking lots and spaces in front of commercial activities that require frequent loading and unloading operations. Its removable configuration makes it indispensable in squares used for weekly markets or events, allowing for the rapid reconfiguration of the road network.
Why choose it
This model is the right choice when a robust physical barrier is needed that is not, however, a permanent obstacle. Unlike classic bollards to be cemented, the system with a 14 cm buried sleeve offers a perfect compromise between mechanical stability and versatility. It is the ideal product for managers of public or private areas who require urban furniture that complies with technical regulations on materials, capable of withstanding intensive use and frequent removal without losing precision in the coupling.
FAQ
What is the advantage of EN GJL 200 cast iron compared to traditional steel?
EN GJL 200 cast iron, certified UNI EN 1561, offers superior compressive strength and durability against natural chemical agents compared to common steel, making the bollard almost maintenance-free against rust.
Must the galvanized sleeve be purchased separately?
No, the system is supplied complete with a hot-dip galvanized iron sleeve to ensure that the coupling between the internal core of the bollard and the buried seat is perfect and protected from oxidation.
How does installation on existing paving take place?
It is necessary to core or excavate the road surface to a depth of approximately 14 cm to house the sleeve. Once the sleeve is cemented flush with the floor, the bollard can be inserted and removed manually.
