What is the difference between underground installation and installation with expansion bolts?

Underground installation involves embedding 20 cm of the base in concrete below the road surface for maximum stability, while the use of expansion bolts allows fixing on already consolidated floors such as asphalt or stone, simplifying installation without deep excavations.

Does the product comply with European regulations on cast iron?

Yes, the external material is made of EN GJL 200 cast iron casting, fully compliant with the UNI EN 1561 standard, which defines the quality and mechanical resistance requirements for gray cast iron.

Can the bollard be removed to allow the passage of emergency vehicles?

No, the H744_32 model is a fixed bollard designed for permanent anchoring; for mobile passages, it is necessary to opt for retractable or removable models.

Is it possible to request the addition of side rings for chains?

In this specific configuration, the bollard is without side rings to maintain a sober and clean line; however, the construction system guarantees stability even in the absence of connections between the posts.

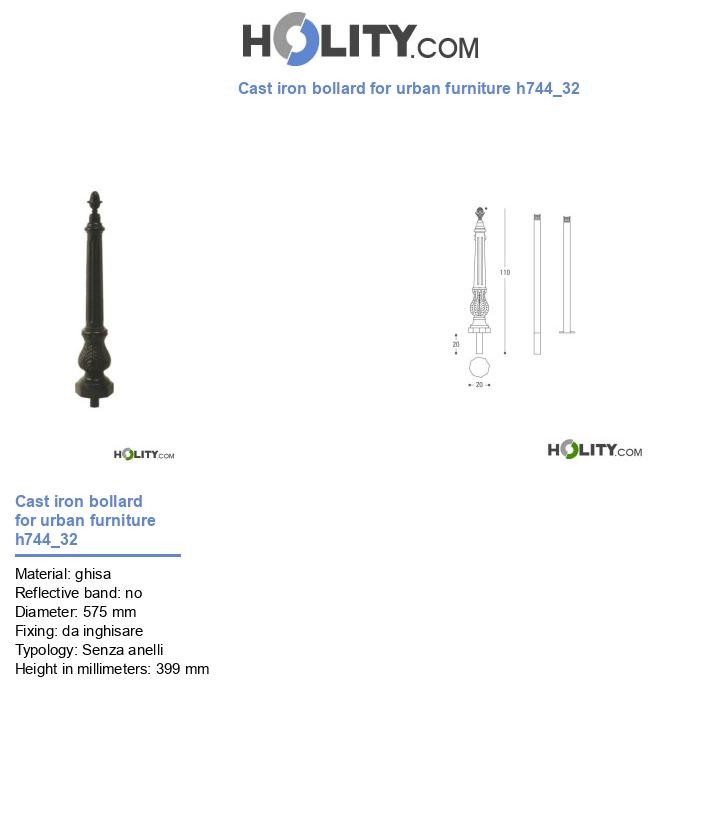

Cast iron bollard for urban furniture h744_32

Name: Cast iron bollard for urban furniture h744_32
SKU: h744_32
Price: 282.16 EUR
Availability: InStock

€235.13 VAT excl.

€282.16 VAT incl.

In stock

SKU

h744_32

Ornamental bollard in EN GJL 200 cast iron with galvanized steel core, Ø 20 cm and height 110 cm. Ideal for the aesthetic protection of historic centers.

Qty

Technical sheet

ASK FOR AN OFFER

Go to Urban Furniture Bollards

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The H744_32 bollard represents an urban furniture solution designed for the delimitation of pedestrian areas and the protection of public spaces. Thanks to its refined aesthetics, it solves the need to regulate vehicular access in prestigious architectural contexts, while ensuring high mechanical resistance and durability. The structure combines the elegance of cast iron casting with the solidity of a supporting internal core, offering a furniture element that serves as both a physical barrier and a decorative component for squares and commercial streets.

Technical features

External material: EN GJL 200 cast iron casting compliant with the UNI EN 1561 standard.
Internal core: Hot-dip galvanized steel tubular for total corrosion protection.
Dimensions: Height above ground of 110 cm with a diameter of 20 cm.
Base configuration: Octagonal shape with low-relief ornamental friezes.
Top: Decorative pine cone equipped with a threaded tube for structural fastening to the internal core.
Fixing system: Prepared for underground installation (approx. 20 cm below the road level) or via expansion bolts on consolidated surfaces.
Design: Linear profile without side rings for greater formal sobriety.
Solidity: Integrated structure that ensures permanent stability and resistance to atmospheric agents.

Image for illustrative purposes only

User benefits

Scope of application

Why choose it

FAQ

More Information
Material	ghisa
reflective band	no
Diameter	200.00
fixing	da inghisare
Typology	Senza anelli
Height in millimetres	1,100.00

Cast iron bollard for urban furniture h744_32
