The Wall-mounted liquid soap dispenser h218_253 is an automatic no-touch dispenser designed for wall installation in professional washrooms. This technical furnishing component solves the operational problem of manual contact and the risk of cross-contamination, offering hygienic dispensing managed via an integrated laser sensor. Intended for managers of hospitality facilities, offices, commercial spaces, and public complexes, the device is suitable for high-traffic areas with high hygiene requirements. The structure features a chrome-plated cast brass body according to the EN248 standard, robust and vandal-proof, combined with internal components in POM and ABS plastic. Operation is exclusively powered via connection to the electrical grid (AC 220V - 50/60Hz / DC6V). To operate the device, simply place your hands under the dispenser within the sensor’s detection range (from 5 to 23 cm); dispensing activates automatically and remains in operation as long as the hands stay within the range, with an adjustable maximum operating time. The reusable tank has a capacity of 1500 ml and is compatible with liquid soap or hand disinfectant (7.5%) with a viscosity between 100 and 3800 cPs, dispensing a standard soap dose of 0.8 cc (adjustable). The overall size of the body is Ø34 x 190 mm in depth. The dispenser is supplied complete with fixing elements and all the accessories necessary for mounting. For maintenance, it is recommended to clean with water and pH-neutral soap, drying with a clean cloth and protecting the dispenser from splashes when cleaning the room with aggressive products.
Technical features
Type: Automatic liquid soap dispenser for wall mounting
Body material: Chrome-plated brass (chrome-plated cast brass according to EN248 standard)
Internal components material: POM and ABS plastic components
Operation: Integrated laser sensor
Power supply: Exclusively via connection to the electrical grid (AC 220V - 50/60Hz / DC6V)
Sensor detection range: From 5 to 23 cm
Tank capacity: 1500 ml (reusable)
Standard soap discharge: 0.8 cc (adjustable)
Permitted soap viscosity: 100 - 3800 cPs
Detergent compatibility: Liquid soap or hand disinfectant (7.5%)

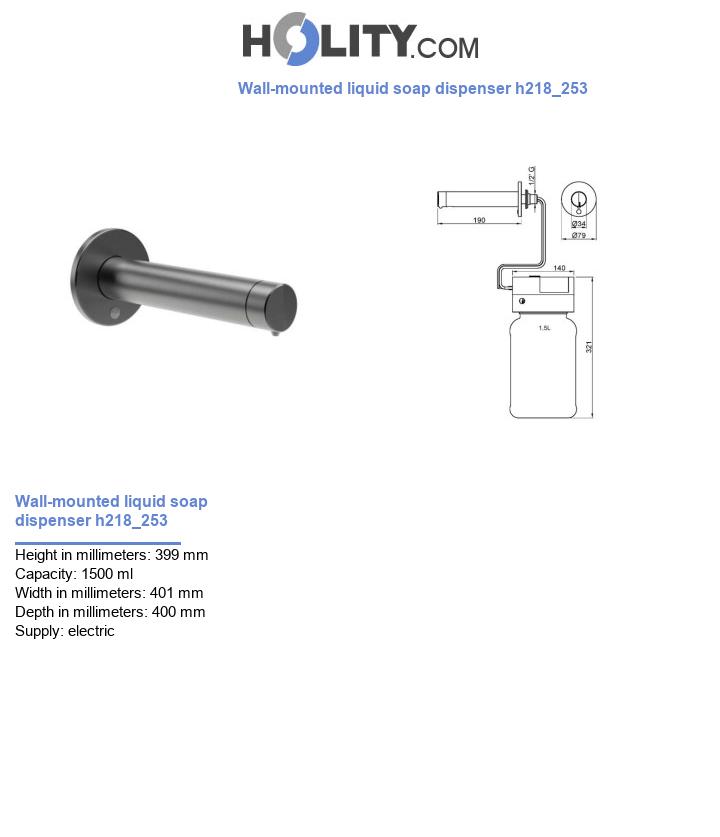

Dimensions: Ø34 × 190 mm (depth)
Standby consumption: <2 mA
Structure properties: Robust and vandal-proof
Available adjustments: Adjustable maximum operating time
Certifications and compliance: CE marking; complies with European directives on electrical safety 2014/35/EU, electromagnetic compatibility (EMC) 2014/30/EU and construction products 305/2011/EU, according to EN 817:2008 and EN 15091:2013 standards
Included equipment: Fixing elements and accessories necessary for installation
Maintenance instructions: Cleaning with water and pH-neutral soap, drying with a clean cloth; protection from splashes when using aggressive detergents in the environment
* Images for indicative purposes only
User Benefits
Prevention of cross-contamination: automatic activation via laser sensor with detection from 5 to 23 cm avoids direct contact of hands with the structure.
Guaranteed continuity of service: the direct connection to the 220V electrical grid eliminates operational interruptions related to battery depletion.
Mechanical resistance in public contexts: the EN248 chrome-plated cast brass structure and vandal-proof design ensure resistance against stress and impact.
Controlled fluid management: the adjustable standard 0.8 cc dose and maximum dispensing time management prevent detergent waste.
Reduction of refilling interventions: the presence of the 1500 ml internal reusable tank ensures prolonged autonomy in high-traffic rooms.
Field of Application
This automatic dispenser is designed for fixed wall installation in washrooms that require high hygienic-sanitary standards and protection from wear. It finds its ideal placement within high-traffic areas such as offices, hospitality facilities, airports, stations, shopping centers, restaurants and public buildings. It is the indicated tool for setting up washbasin walls with dimensions of Ø34 x 190 mm in depth equipped with a connection to the 220V electrical current and prepared for the dispensing of liquid soap or 7.5% disinfectant.
Why Choose It
The h218_253 model is the correct choice when the setup of public bathrooms requires a wall-mounted dispenser no-touch operated by laser sensor with 220V mains power supply. It meets the needs of managers looking for a device with an EN248 chrome-plated cast brass body with high vandal-proof resistance, provided with CE certification and compliance with European directives 2014/35/EU, 2014/30/EU and 305/2011/EU and equipped with a 1500 ml reusable tank with adjustable dispensing starting from 0.8 cc.
FAQ
How does the h218_253 wall-mounted dispenser differ from deck-mounted models?
Unlike deck-mounted dispensers that require a fixing hole directly on the worktop or washbasin, the h218_253 model is designed for wall installation with a cantilevered footprint of 190 mm in depth and a diameter of 34 mm, leaving the sink surface completely free.
Which European directives and safety technical standards does the h218_253 dispenser comply with?
The dispenser is provided with CE marking and complies with the electrical safety directive 2014/35/EU, the electromagnetic compatibility (EMC) directive 2014/30/EU and the construction products directive 305/2011/EU, in compliance with EN 817:2008 and EN 15091:2013 standards.
