• Extreme resistance: F900 certification allows the manhole cover to withstand the stresses of the world’s heaviest vehicles, including aircraft and port forklifts.
• Safety locking: The automatic snap-locking system prevents the lid from lifting caused by strong air depressions or mechanical vibrations.
• Structural anchoring: The continuous perimeter flange and anchor bolt holes guarantee a monolithic connection with the foundation, preventing concrete cracking.
• Odor control: The internal "U" seat allows the pit to be sealed against bad odors, making the working environment healthier and safer.
• Operational efficiency: Despite the high robustness, the sized external compartments allow easy opening using generic levers, speeding up inspections.

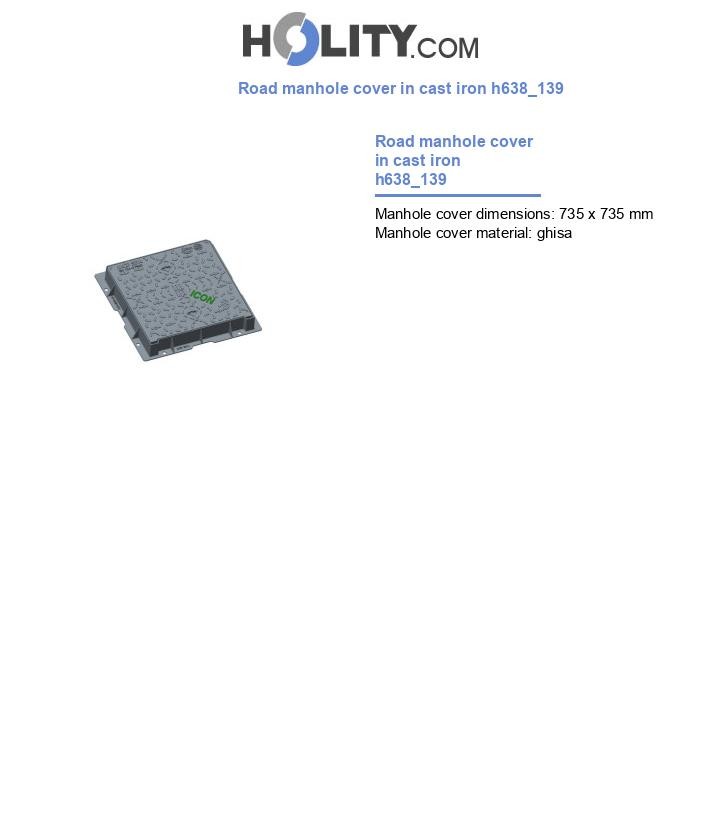

The h638_139 manhole cover is specifically indicated for areas subject to extremely high axle loads. It finds its ideal application in airport runways, container storage areas in ports and industrial plants with the transit of special vehicles. It is also used in heavy logistics contexts and critical infrastructures where Class F900 is mandatory to prevent catastrophic failure of the road surface and ensure the operational continuity of utility networks.

Choosing this product is the correct decision when public safety and infrastructural integrity are the absolute priority. Thanks to the high-quality ductile iron and structural reinforcements, this product is preferable in scenarios where lower classes (such as D400 or E600) do not offer sufficient safety margins. The maximum embedding depth and the unique engagement of the cover via rounded corners eliminate positioning errors, ensuring multi-year durability even in the most severe environmental conditions.

What differentiates Class F900 from other resistance classes?

Class F900 is the highest category provided by technical standards and guarantees resistance to a load of 900 kN (approximately 90 tons). It is the only class suitable for areas where aircraft or exceptional industrial loads pass, greatly exceeding common highway standards.

How does the boltless automatic locking system work?

The cover is equipped with ductile iron elastic appendages that, during closing, mechanically snap into the frame tabs. This system ensures a firm lock against vibrations, but allows rapid opening by authorized personnel using a lever in the designated compartments.

Is it possible to install this manhole cover in areas subject to heavy rain?

Yes, the design includes anti-slip reliefs uniformly distributed on the cover surface, designed not only for traction but also to promote rapid runoff of rainwater to the edges, minimizing the risk of aquaplaning or water accumulation.
