Multi-play composition with bridge h350_277

Name: Multi-play composition with bridge h350_277
SKU: h350_277
Price: 7064.64 EUR
Availability: InStock

€5,887.20 VAT excl.

€7,064.64 VAT incl.

In stock

SKU

h350_277

Multi-play village with tower with roof, climbing ladder, bridge with climbing wall, 2 poles, wall with handholds, slide and bench.

Qty

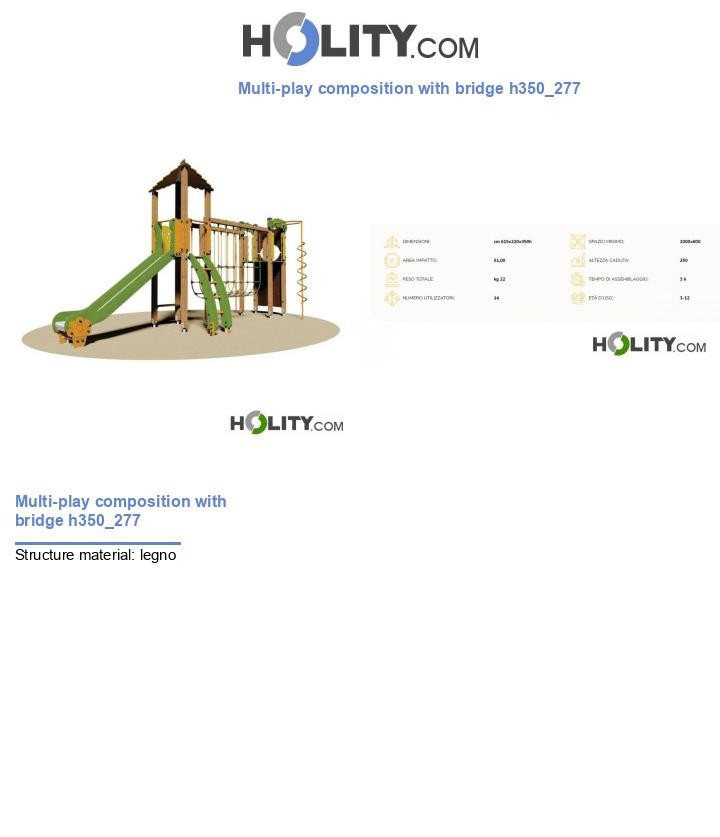

Technical sheet

ASK FOR AN OFFER

Go to Multi-play structures with towers

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Multi-play composition for public parks. Certified in compliance with European Standards EN 1176 by the German Institute TÜV - SÜD. The structure is made of glue-laminated Nordic pine wood pressure-treated in an autoclave with non-toxic salts.
List of components:

N°1 tower with wooden posts sect. cm 9x9 equipped with a gabled roof and protective panels both made of phenolic-glued okoumé mahogany plywood, pantographed and without sharp edges. Equipped with a bench in phenolic-glued birch plywood, with non-slip knurling, finished with colored films. Dim. cm 101x78x350 h.
N°1 slide h. cm 150, with press-bent stainless steel track, side panels in phenolic-glued okoumé mahogany plywood.
N°1 ladder with iroko rungs Ø 45 mm made of phenolic-glued okoumé mahogany plywood, pantographed and without sharp edges.
N°1 bridge with climbing net made of nylon rope with internal core in coated steel cable and colored nylon rope clamps.
N°1 open tower with wooden posts sect. cm 9x9 equipped with protections and decorative panels in phenolic-glued okoumé mahogany plywood, pantographed and without sharp edges. Dim. cm 101x78x260 h. N°2 poles in round galvanized steel tube, oven-painted at 180°.
N°1 shaped and pantographed climbing wall, made with phenolic-glued birch plywood panels finished with colored films on both sides and colored marble resin handholds.

All wooden parts are treated with high-penetration, non-toxic, water-dilutable wax-based colored stain. Assembly using 8.8 galvanized steel bolts and self-locking nuts. Standard nut cover elements in colored nylon. Hot-dip galvanized metal attachments for ground anchoring.

Technical features:

Structure material: glue-laminated Nordic pine wood
Max dimensions: 615x220xh.350 cm
Impact area: 51.00
Total weight: 22 kg
Number of users: 14
Age: 3-12 years
Minimum space: 1000x600
Fall height: 134
Assembly time: 3 hours
When ordering, please specify the type of anchoring: to be bolted down or to be buried

*purely indicative image; the product may undergo changes in colors

**upon request, a tunnel slide or an open polyethylene slide can be mounted as an alternative to the steel slide.
