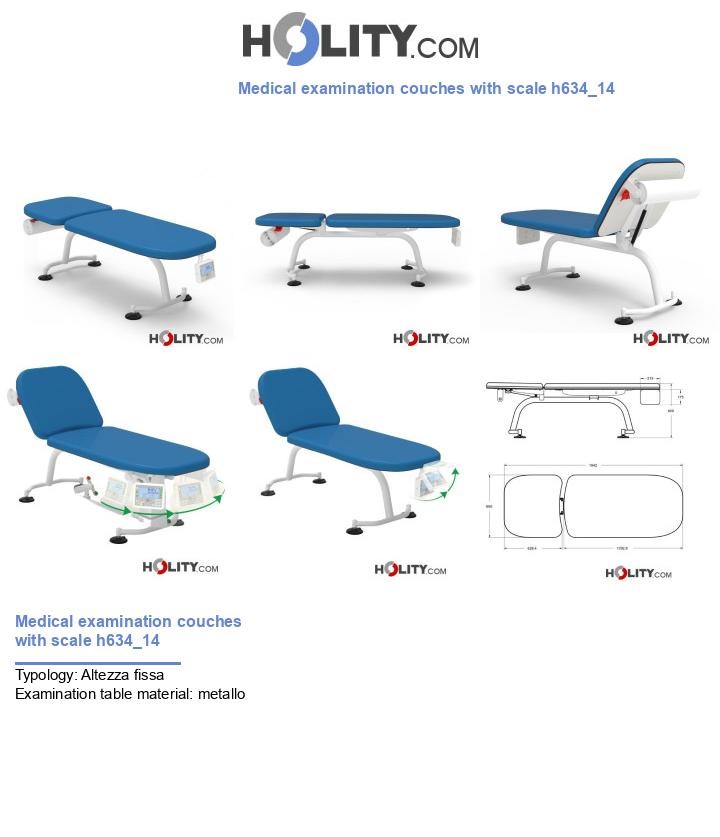

Medical examination couches with scale h634_14

As low as
€2,617.50 VAT excl.
€3,141.00 VAT incl.
In stock
SKU
h634_14
Professional steel examination couch with integrated digital weighing system, gas-adjustable backrest and CPR release. Max capacity 200 kg.

This medical examination couch with integrated weighing system represents an advanced solution for clinics, hospitals and medical offices that need to monitor the patient’s weight during diagnostic phases. The structure is designed to combine robustness and functionality: the fixed frame in white painted steel rests on adjustable feet to ensure stability on every surface, while the high-density foam sleeping surface ensures the necessary comfort. The class 1IM eco-leather upholstery is specifically treated to be antibacterial, antifungal and stain-resistant, facilitating professional sanitization operations.

Technical specifications

  • Total dimensions: L 194.2 x W 68 x H 60.9 cm
  • Structure: White painted steel with adjustable feet
  • Surface: 2 sections in high-density expanded resin
  • Backrest adjustment: From 0° to 70° via gas actuator
  • Safety: Quick release device of the backrest for CPR maneuver
  • Upholstery: Class 1IM eco-leather (antibacterial, antifungal, stain-resistant)
  • Maximum capacity: 200 kg
  • Safe working load: 235 kg
  • Power supply: Multivoltage 100-240 Vac 50-60 Hz with Schuko cable
  • Electrical components: Low voltage motors (24 V), max absorption 480 VA
  • Protection degree: IPX4 insulation
  • Included accessories: Integrated roll holder on the back of the backrest

Weighing system

  • Electronics: Consolidated Italian production with stainless steel display box (IP44)
  • Minimum division: 20 g (up to 60 kg), 50 g (up to 150 kg), 100 g (up to 200 kg)
  • LCD Display: Dimensions 22 x 16 x h5 cm, backlit and powered at 7.5 Vdc
  • Display functions: Weight display, tare (manual/automatic), clock, weight loss, countdown, patient descent alarms and maintenance alert
  • Load cells: In stainless steel with 1000 kg capacity (overload up to 2000 kg)
  • Connectivity: Standard RS232 or LAN 10/100 interface for hospital management software integration
  • Autonomy: External rechargeable 6 V emergency battery (about 24 hours of autonomy) with anti-blackout function
  • User interface: 25-key keyboard integrated into the display for weighing and movement management

Options on request

  • Motorized backrest operable via push-button panel
  • Integrated cable reel system
  • Customized upholstery colors

Image for illustrative purposes only

User benefits

Scope of application

Why choose it

FAQ

More Information
Strengths manuale
Type Altezza fissa
Material metallo
Height in millimetres 609.00
Length in millimetres 1,942.00
Depth in millimetres 680.00

Medical examination couches with scale h634_14
