The h528_34 instrument table is a specific technical equipment designed for logistical integration in operating theaters and advanced diagnostic areas. The structure, entirely made of anodized aluminum with square tubular profiles, is developed to operate in total safety in environments with high magnetic fields, eliminating the risks associated with the attraction of ferrous materials.
Configuration: 2 aluminum shelves with 2 mm thickness.
External dimensions: 650 x 450 x h. 955 mm.
Useful shelf surface: 590 x 390 mm.
Shelf positioning: Shelves fixed at 340 mm and 930 mm height respectively.
Load capacity: Approximately 20 kg per single shelf (40 kg total).
Mobility: 4 wheels Ø 75 mm, two of which are equipped with a brake locking system.
MRI Compatibility: Certified for use in a static magnetic field up to 3 Tesla.
Magnetic parameters: Maximum spatial gradient of 8.6 T/m; limit of 8.6 T/m in the sliding direction towards the magnet.

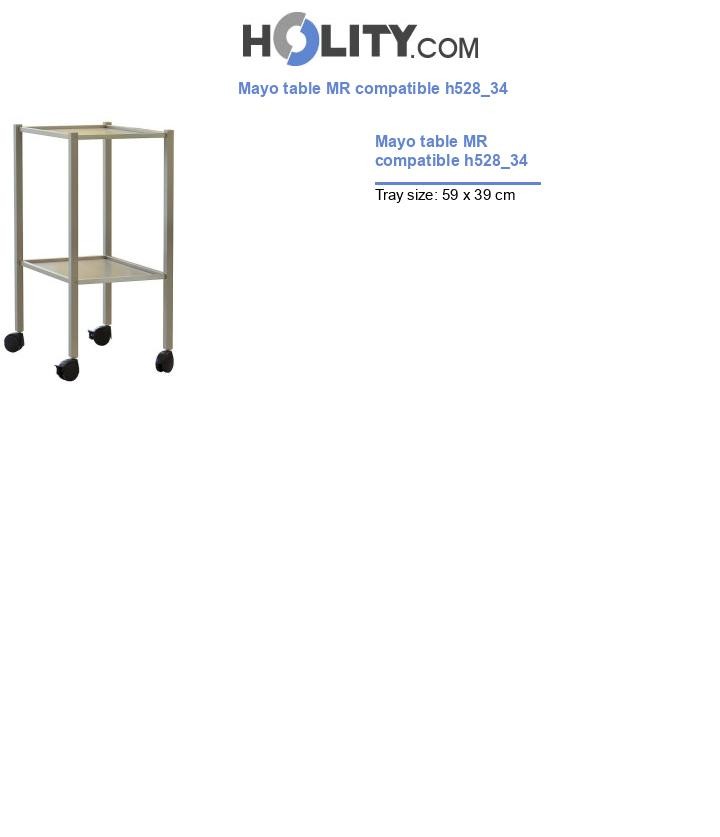

Images for illustrative purposes only
User benefits
Non-magnetic safety: The use of certified aluminum guarantees the absence of the missile effect in proximity to MRI magnets.
Hygiene and sanitization: The anodized finish is resistant to common chemical agents used for hospital disinfection.
Operational efficiency: The double shelf at different heights allows for a rational organization of instruments and consumables.
Guaranteed stability: The integrated braking system on two wheels ensures the safe stationary positioning of the table during medical procedures.
Smooth maneuverability: The wheel diameter and the lightness of the structure facilitate transport even in confined spaces.
Field of application
The h528_34 table is primarily intended for MRI rooms with magnets up to 3 Tesla in hospital and clinical settings. It finds elective use in radiology, neuroradiology and in all diagnostic contexts where it is essential to operate with non-magnetic equipment. It is also suitable for research laboratories and operating blocks requiring sterile and corrosion-resistant support surfaces.
Why choose it
Choosing the h528_34 model is necessary when clinical safety protocols require the use of MR Conditional furniture to avoid magnetic interference and risks to patients. Unlike common stainless steel trolleys, which may have residual ferrous traces, this aluminum structure guarantees total magnetic neutrality, maintaining an optimal ratio between its own weight and load capacity for electronic instruments and surgical kits.
FAQ
Can the h528_34 trolley be used in rooms with magnets exceeding 3 Tesla?
No, the technical specifications limit safe use to static magnetic fields of 3 Tesla or less. Use beyond this limit is not certified and could compromise operational safety.
Are there safety differences between this aluminum model and a stainless steel one?
Yes, many stainless steel trolleys are ferromagnetic or have magnetic properties that make them dangerous in the MRI room. This aluminum model is inherently non-magnetic, ensuring compliance with the required spatial gradient parameters.
Is specific maintenance required for the wheels?
The wheels are designed for hospital use; however, periodic cleaning of debris is recommended to maintain smooth movement and full brake functionality.
